Highlights
Reliable Wireless Performance
The AirLine XR Digital Wireless Wind Instrument System uses digital wireless to easily sync the transmitter and receiver for stress-free setup. With 100' range of operation, the system covers most stage areas, allowing horn players full freedom of movement. With up to 6 hours of combined battery life, the XR Wind Instrument System provides a worry-free wireless solution for all your gigs.
-
Small But Mighty
AirLine XR is built to be compact to accommodate working horn players. The plug-in XLR transmitter and self-contained clip-on transmitter easily fit into a bag or case for easy travel. This make wireless with XR an excellent option for gigging players compared to traditional half-rack and beltpack systems.
Easy Setup

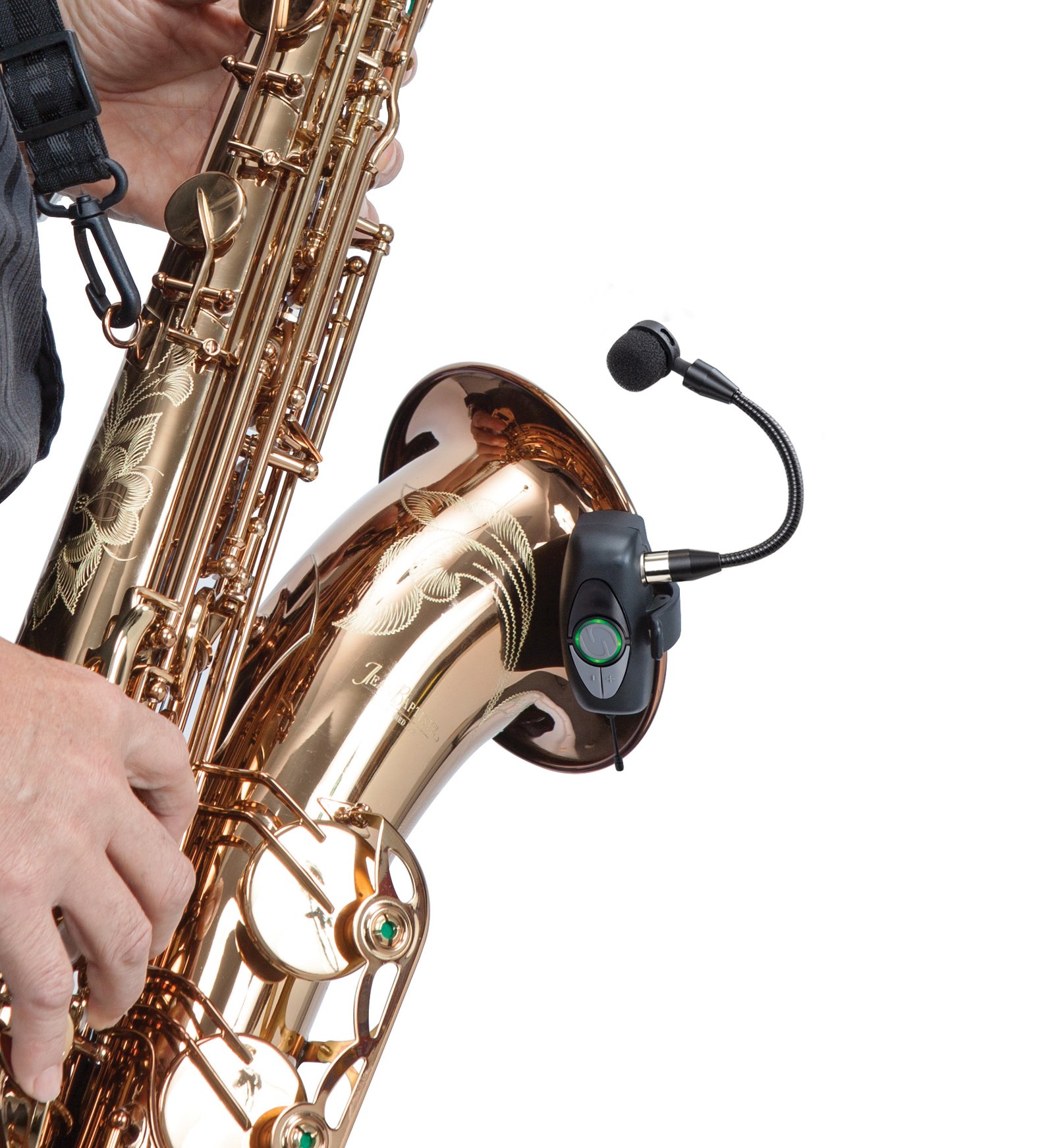

AirLine XR streamlines the setup process for horn players from minutes down to seconds. The plug-in receiver is designed to slot into any mixer or PA speaker’s XLR input for instant operation, while the self-contained transmitter clips onto the bell of the instrument and is ready to capture your performance with the included gooseneck mic.
Features / Specs

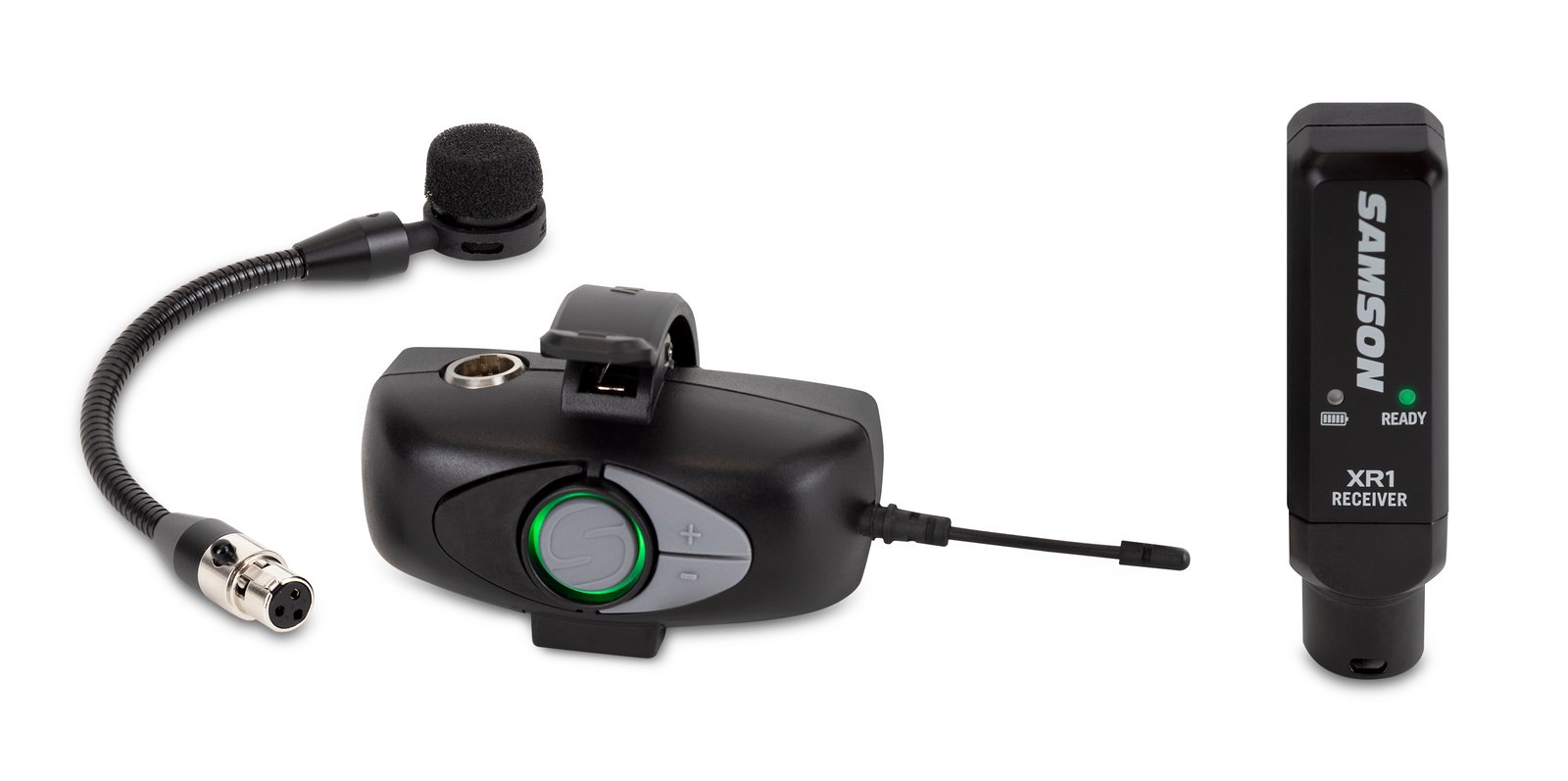

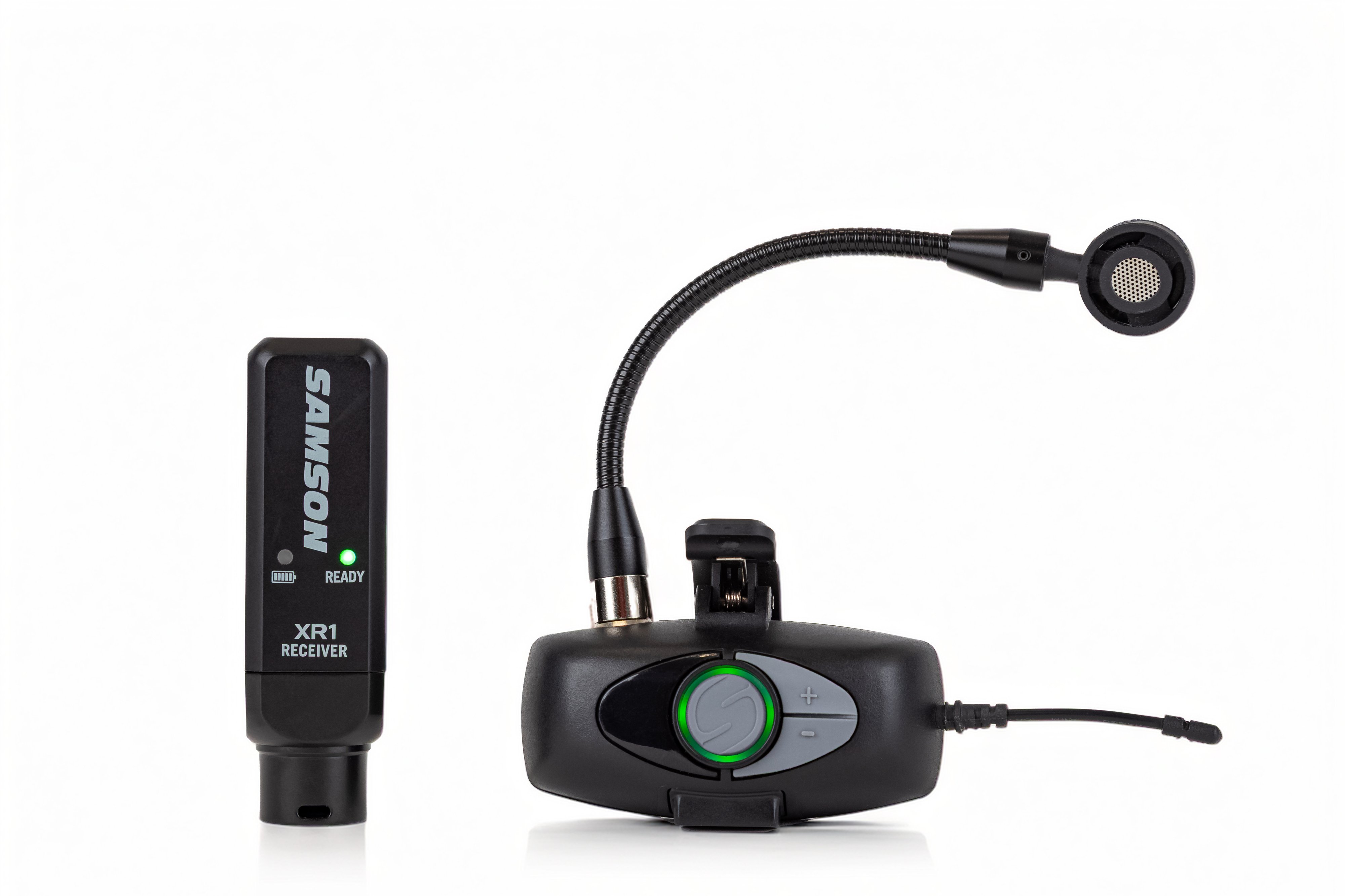

AirLine XR Wind Instrument System
- 2.4 GHz digital wireless system
- Easy sync for hassle-free setup
- Fully battery-powered system
- 100' line-of-sight operating range

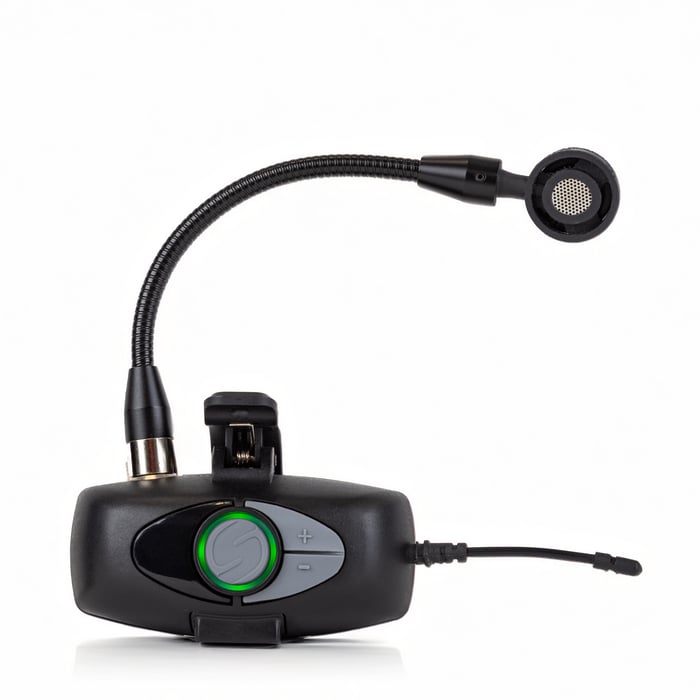

XH1 Wireless Transmitter
- Clips directly to instrument bell (no beltpack or cable required)
- HM60 condenser microphone capsule with supercardioid pickup pattern
- Handles up to 125dB SPL
- 3-point halo isolation mount
- 8.5" gooseneck (P3 connector) for optimal mic placement
- Windscreen included
- Up to six hours of battery life using built-in rechargeable lithium-ion battery

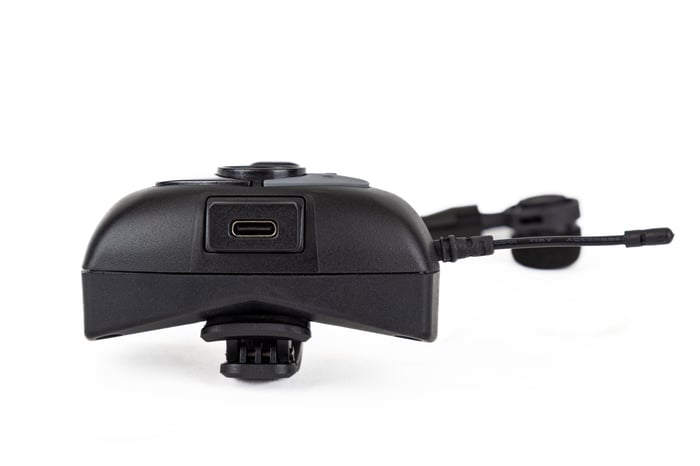

- USB-C connection for charging
- Low battery LED indicator
- Variable Gain control
- One-touch Mute

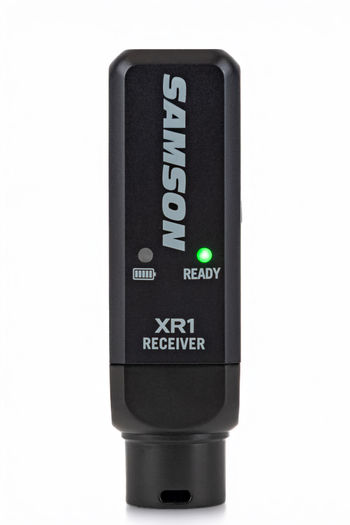

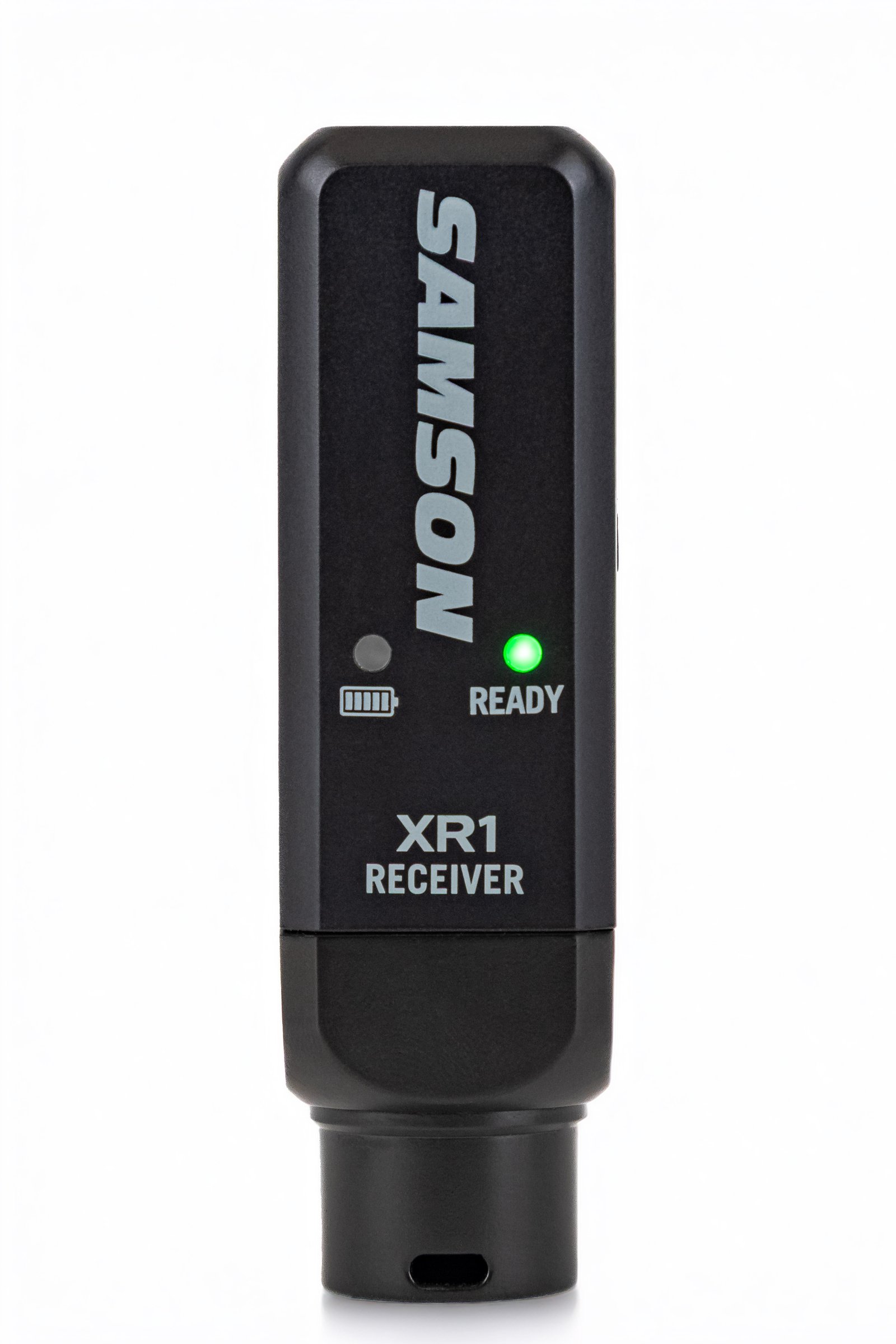

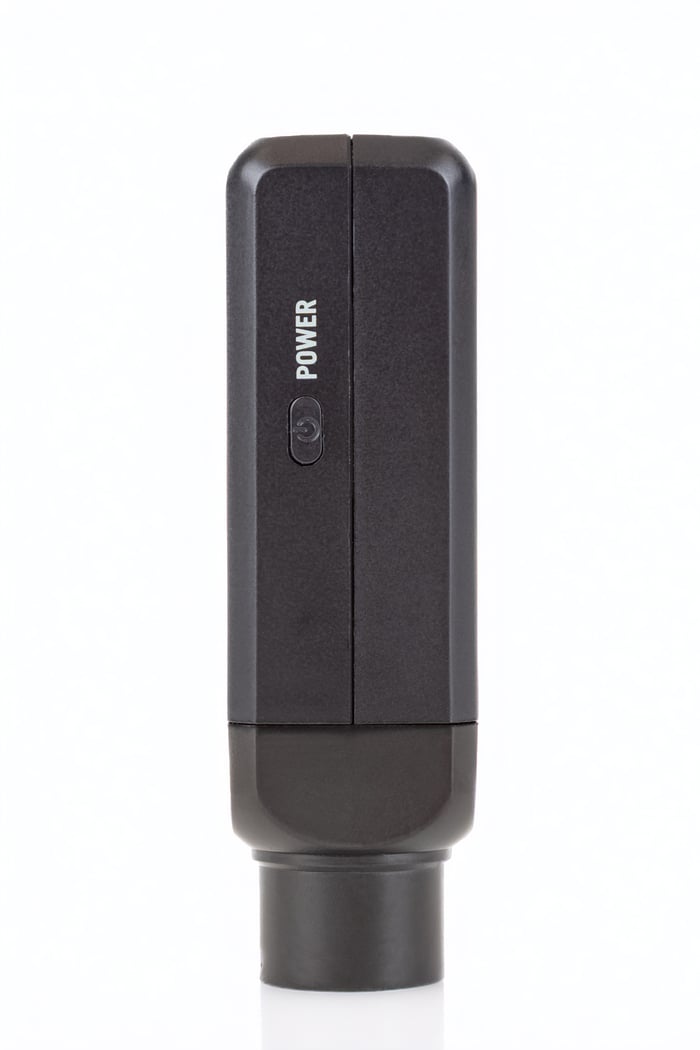

XR1 Wireless Receiver

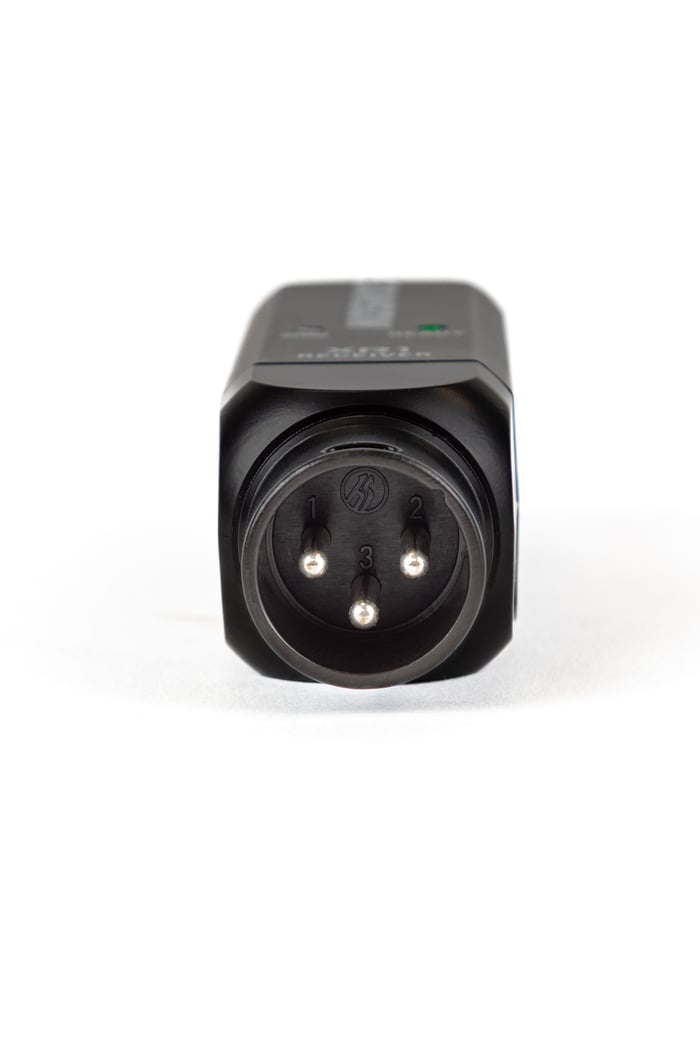

- Plug-and-play XLR "stick" design
- 2.4 GHz digital wireless operating
- Up to six hours of battery life using built-in rechargeable lithium-ion battery

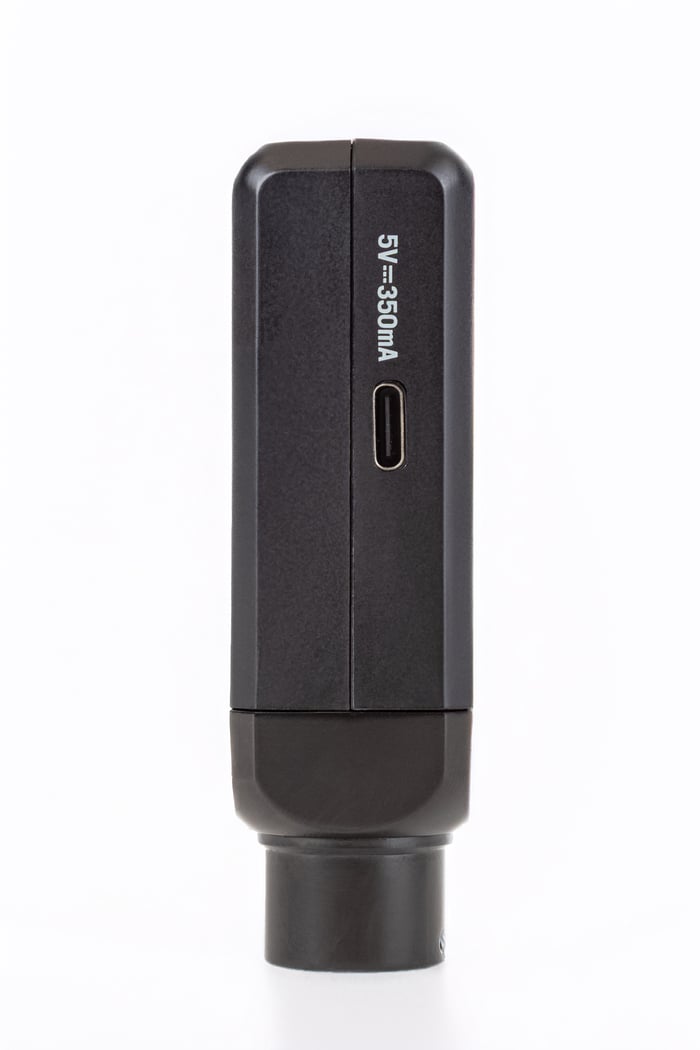

- USB-C connection for charging
Specifications
| Working Range | 100' (30m) line of sight |
|---|---|
| Audio Frequency Response | 50 Hz - 15 kHz |
| T.H.D. (Overall) | <1% (@AF 1 kHz, RF 46 dBu) |
| Dynamic Range | >100 dB A-weighted |
| Signal to Noise | >95 dB |
| Operating Temperature | –10°C (14°F) to +60°C (+140°F) |
| Tone Key Frequency | 35 kHz |
| Input Connector | Mini-XLR (P3) |
|---|---|
| Input Impedance | 3kΩ |
| Input Gain Range | 20dB |
| RF Power | 10mW EIRP |
| Power Requirements | 3.6V 500mAh Lithium Ion rechargeable battery |
| Battery Life | 6 hours |
| Dimensions | 5.9" x 6.7" x 3.9" / 150mm x 170mm x 100mm |
| Weight | 0.13lb / 60g |
| Audio Output Level - Unbalanced | +14 dBu |
|---|---|
| Audio Output Level - Balanced | +9 dBu |
| Audio Output Impedance - Unbalanced | 810 Ohms |
| Audio Output Impedance - Balanced | 240 Ohms |
| Sensitivity | -100 dBm / 30 dB sinad |
| Image Rejection | >50 dB |
| Operating Voltage | 15 VDC 200mA |
| Dimensions (LxWxH) | 3.35" x 0.98" x 0.98" / 85 mm x 25 mm x 25 mm |
| Weight | 0.13 lb / 60 g |
More Instrument Wireless
Compare Wind Insturment Wireless Systems
| AirLine XR - | AirLine AWXm Wind Instrument - | AirLine AWX Wind Instrument - | |
|---|---|---|---|
| Type | Digital | UHF | UHF |
| Frequencies | 1 | 100 | 80 |
| Compatible Systems per band | 2 | 8 | 8 |
| Mic Capsule | HM60 Instrument Mic | HM60 Instrument Mic | HM60 Instrument Mic |
| Transmitter Battery | Lithium Ion Rechargeable / 6 Hours | Lithium Ion Rechargeable / 8 Hours | Lithium Ion Rechargeable / 8 Hours |
| Receiver Type | Plug-in XLR | Tabletop | Half-rack |
| Rack-mountable | No | No | Yes - Rack kit included |
| Receiver Output Connections | XLR | XLR, 1/4", 1/8" | XLR, 1/4" |
| Antenna Distribution Capable | No | No | Yes |
