XPDm Handheld

Digital Handheld Wireless System

Going wireless has never been easier with the XPDm handheld system, a unique wireless microphone solution ideal for singers, presenters, educators, and interviewers. Operating on the license-free 2.4 GHz frequency, this digital wireless system offers easy setup and rock-solid wireless operation at an unbeatable price.

As low as 0% APR available for orders $199 and up. Learn more
Only Left
Preorder Today
Coming Soon
Call to order
We're sorry, but this item is unavailable.
Free -Day Shipping
Get it by when you order within
Get it if you order in Price:

Highlights

  • Digital Wireless Technology

    The XPDm Handheld system delivers high-quality audio using 2.4 GHz digital transmission. This wireless technology allows the microphone transmitter to send an uncompressed signal to the receiver, providing a higher signal-to-noise ratio than traditional wireless systems.

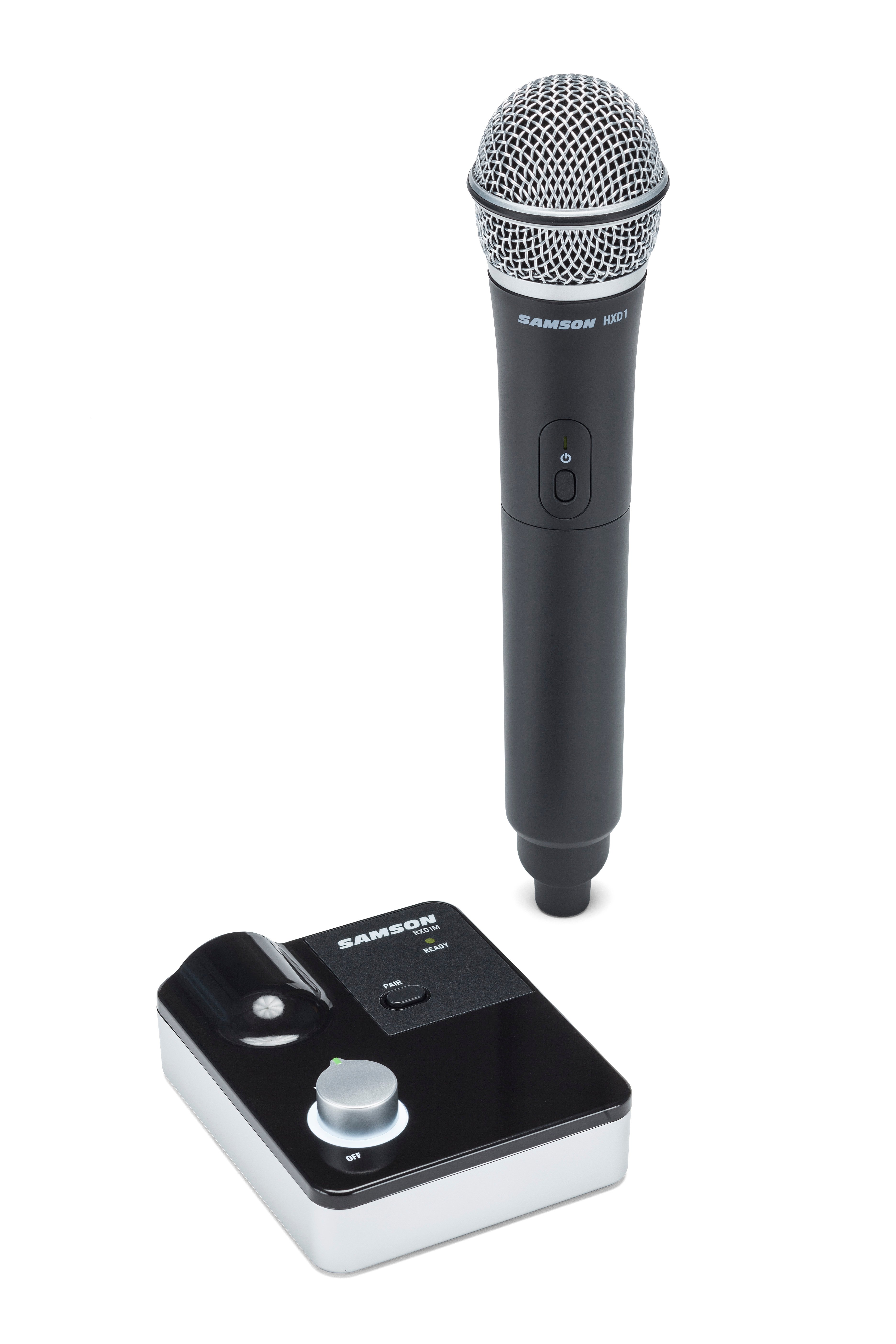

    XPDm-HH-Hero

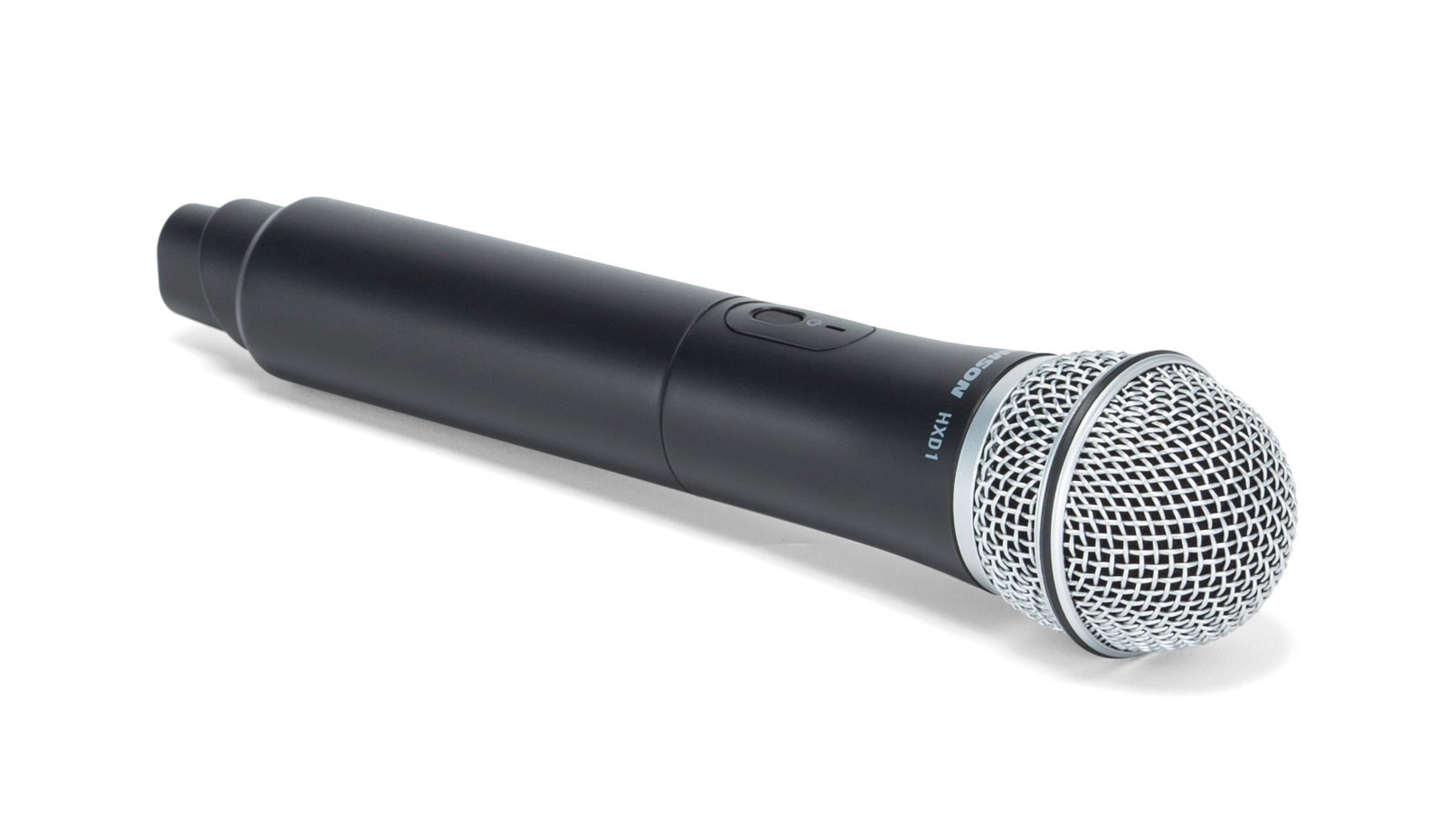

  • HXD1-HH-Angled

    Completely Cordless

    The HXD1 handheld transmitter provides completely wireless performance and captures vocals with absolute clarity. With 20 hours of operation on two AA batteries and an impressive 100' of wireless range, the HXD1 delivers reliable performance in any application. A Q6 microphone element provides wide dynamic range, and a multi-axis shock-mounted capsule minimizes handling noise for a reliable, professional-sounding wireless microphone solution.

  • More Ways to Connect

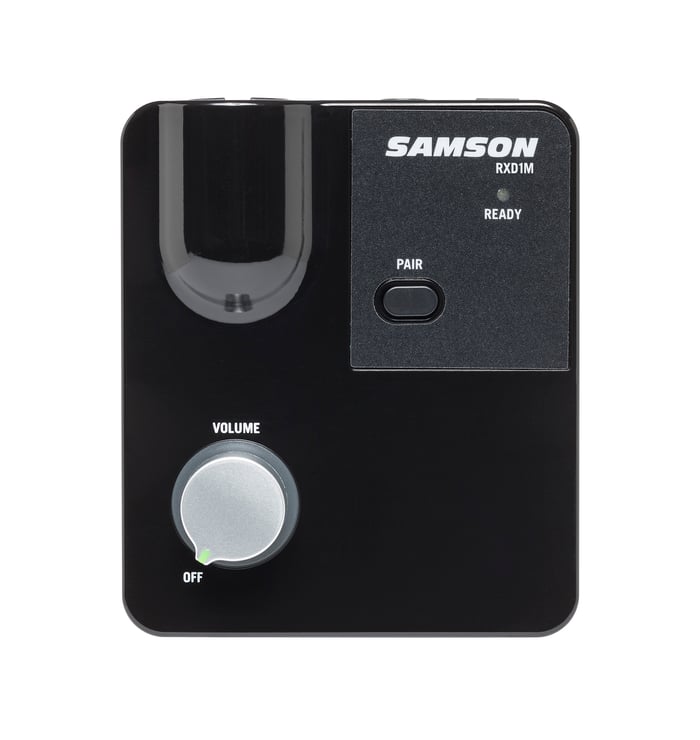

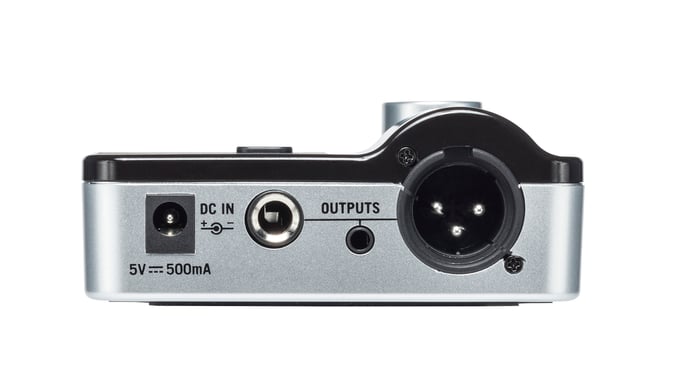

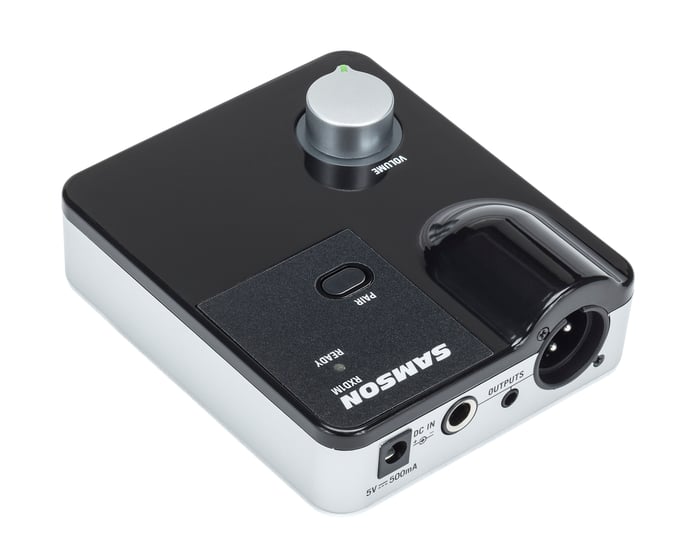

    Easily integrate the XPDm handheld system into your audio setup with the lightweight and portable RXD1M receiver, which features XLR, 1/4," and 1/8" outputs.

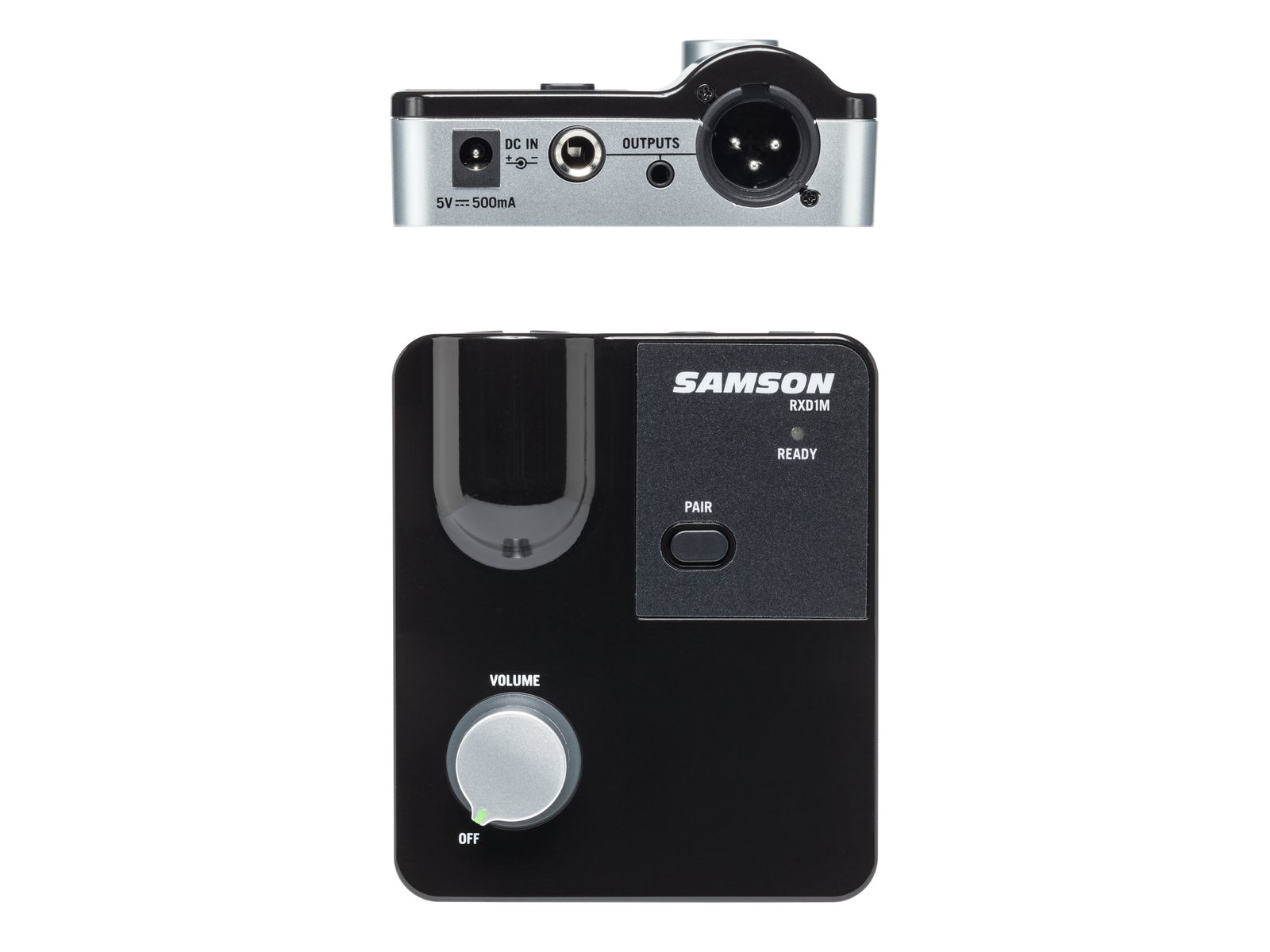

    XRDm receiver top and end panel view

Features / Specs

XPDm Handheld System

  • High performance digital wireless system
  • Operates on 2.4GHz License-free frequency
  • 100’ (30m) line-of-sight operating range

HXD1 Handheld Transmitter

  • Q6 Dynamic Microphone capsule
  • Offers up to 20 hours of battery life using two AA batteries

RXD1M Tabletop Receiver

  • Balanced XLR, unbalanced 1/4” and unbalanced 1/8” outputs
  • One-touch pairing button
  • Rotary volume knob with integrated power switch

Specifications

System
Simultaneous Systems 2
Working Range 100’ line of sight
Working Frequency 2.404~2.476 GHz
Modulation type GFSK
Audio Frequency Response 20Hz–16KHz
T.H.D <0.1% (at 1 kHz, -10 dBu)
Signal to Noise >85 dB
HXD1 Transmitter
Microphone Element Q6 Dynamic
RF Power <10 mW EIRP
Power Requirements Two AA (LR6) alkaline batteries
Battery Life 20 hours
Audio Sample Rate 32 kHz
Dimensions 10.2” x ø2.1” / 260 mm x ø54 mm
Weight 0.5 lb / 218 g
RXD1M Tabletop Receiver
Audio Output Level 1/8” (3.5mm) & 1/4” (6.3mm) jack (unbalanced) +4 dBu, 1 kHz, <0.6% THD+N
Audio Output Level XLR jack (balanced) +4 dBu, 1 kHz, <0.6% THD+N
Audio Output Impedance 1/8” (3.5mm) & 1/4” (6.3mm) jack (unbalanced)  110 ohms @ 1kHz
Audio Output Impedance XLR output jack (balanced) 2.4Kohms @ 1kHz
RF Sensitivity -78dBm/20dB SINAD
Image Rejection >50dB
Operating Voltage 5VDC 500mA
Dimensions 4.3” x 3.7” x 1.5” / 110mm x 95mm x 39mm
Weight  0.33lb / 152g

Compare Handheld Wireless Systems

XPD2 Handheld

-

XPDm Handheld

-

Concert 88x Handheld

-

Concert 99 Handheld

-
Type 2.4GHz Digital 2.4GHz Digital UHF UHF
Frequencies n/a n/a 100 80
Compatible Systems per band 2 2 8 8
Mic Capsule Q6 Dynamic Q6 Dynamic Q7 Dynamic Q8 Dynamic
Transmitter Battery 2xAA / 20 hours 2xAA / 20 hours 2xAA / 8 hours 2xAA / 8 hours
Receiver Type USB Stick Tabletop Half-rack Half-rack
Rack-mountable No No Yes - Rack kit included Yes - Rack kit included
Receiver Output Connections USB, 1/8" XLR, 1/4", 1/8" XLR, 1/4" XLR, 1/4"
Antenna Distribution Capable No No No Yes
