Highlights

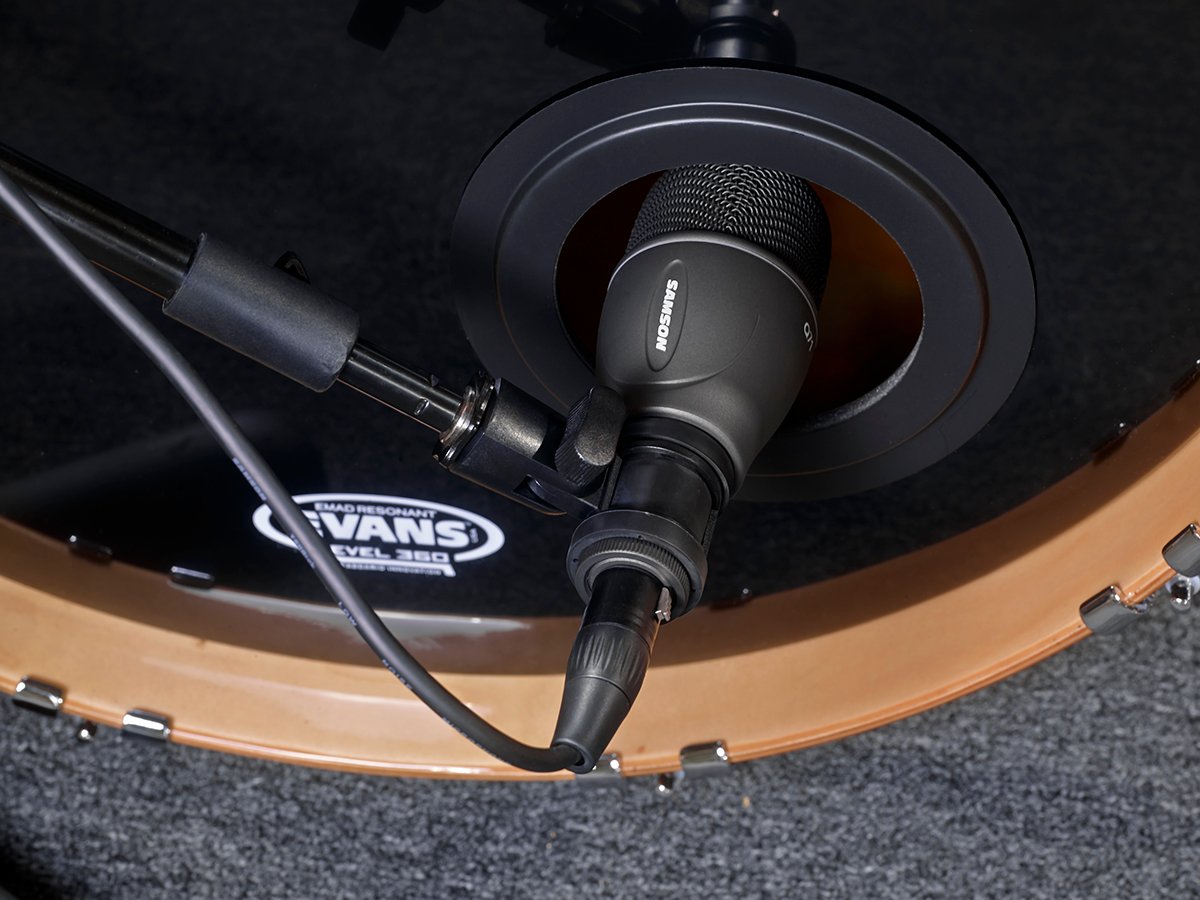

Capture the Full Essence of Your Bass Drum

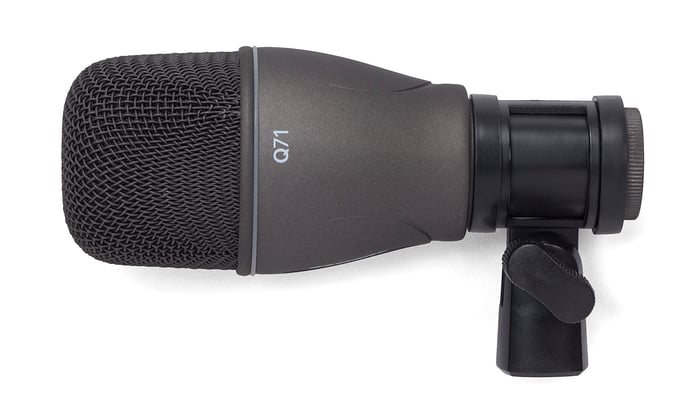

The Q71 is a dynamic kick drum microphone designed to capture the low end of the bass drum. The frequency response is tailored to reproduce the full range of the instrument, including the body and punchy attack. Capable of handling high SPLs, the Q71 is optimized to capture the full essence of your bass drum, making it an excellent choice for both live performance and studio recording.
-
One Two Punch

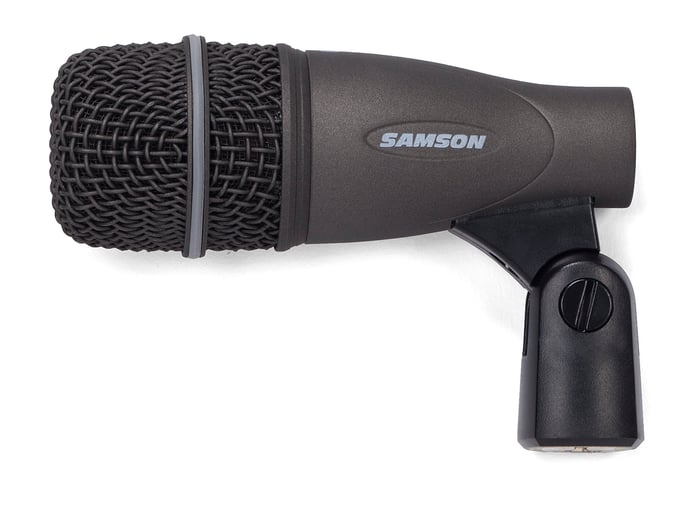

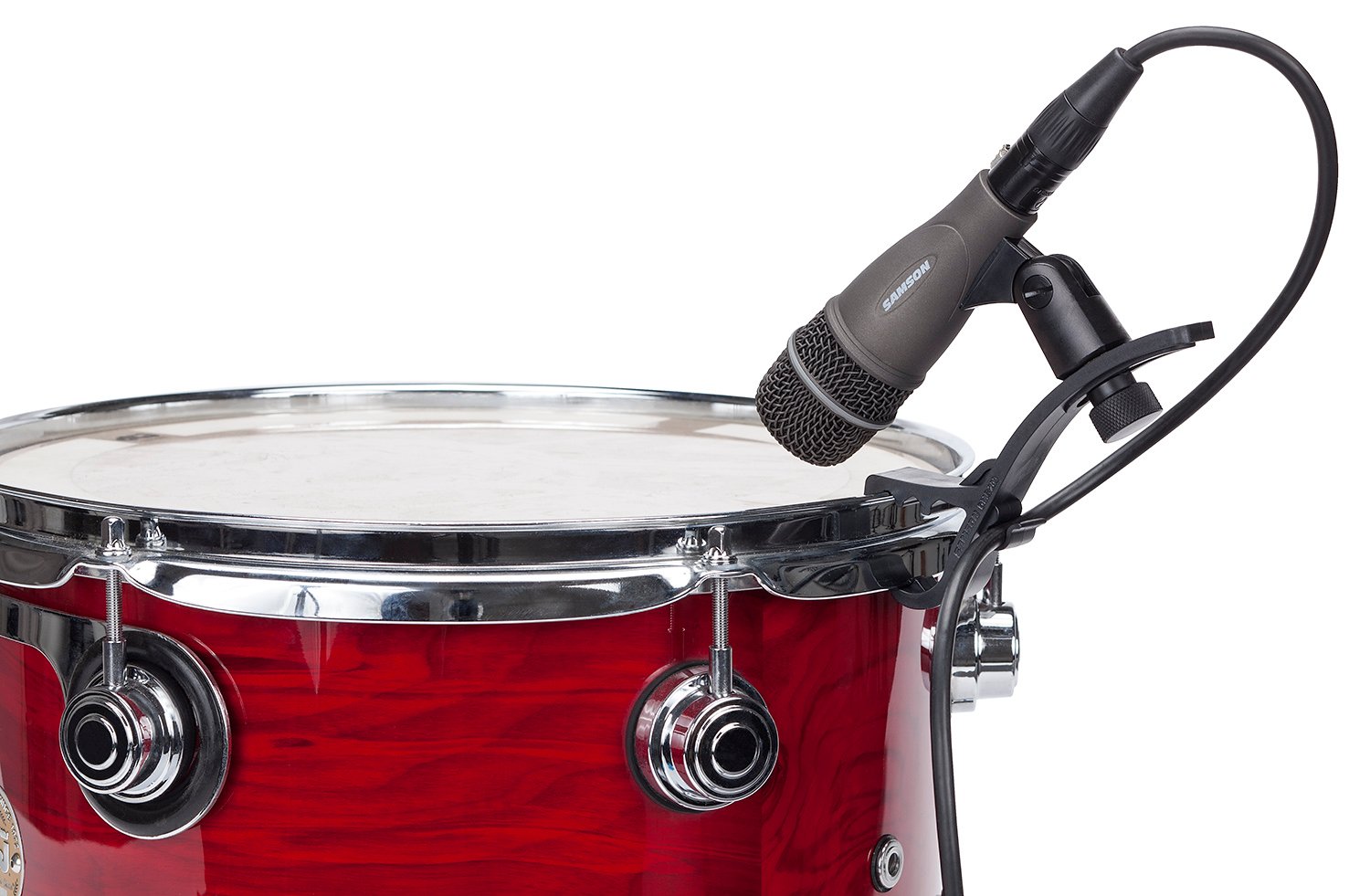

The Q72 is a dynamic microphone designed for miking snare drums and tom-toms. It has a cardioid polar pattern that helps isolate each drum and eliminates off-axis noise and feedback. The Q72 has a frequency response of 50 Hz to 16 kHz, with a slight boost in the upper midrange to bring out the attack and clarity of drums. It also has a high SPL handling capability, allowing it to capture loud sound sources without distortion.
Capture the Brilliance

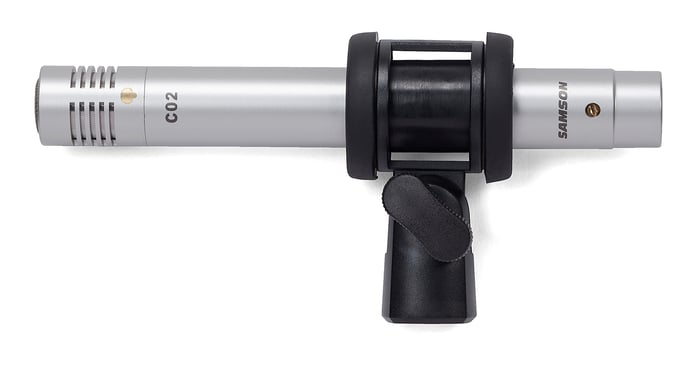

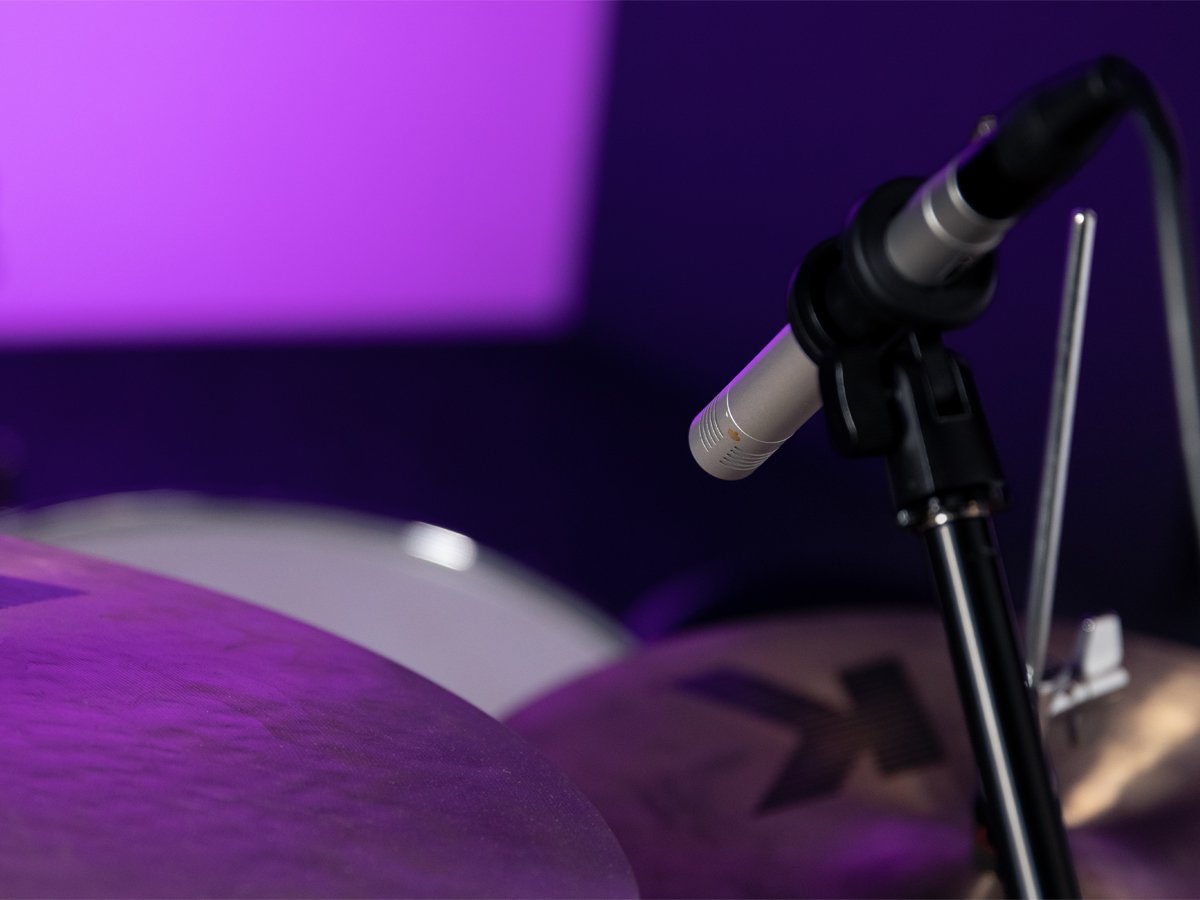

C02 pencil condenser microphones bring a high level of accuracy and audio performance to instrument miking applications. The matched pair is perfect for capturing the brilliance of your cymbals and the overall ambient sound of your drum kit. They can also be used to mic hi-hats, thanks to their smooth top end and ability to capture fast attack transients.
-
Capture Loud Sources with Confidence

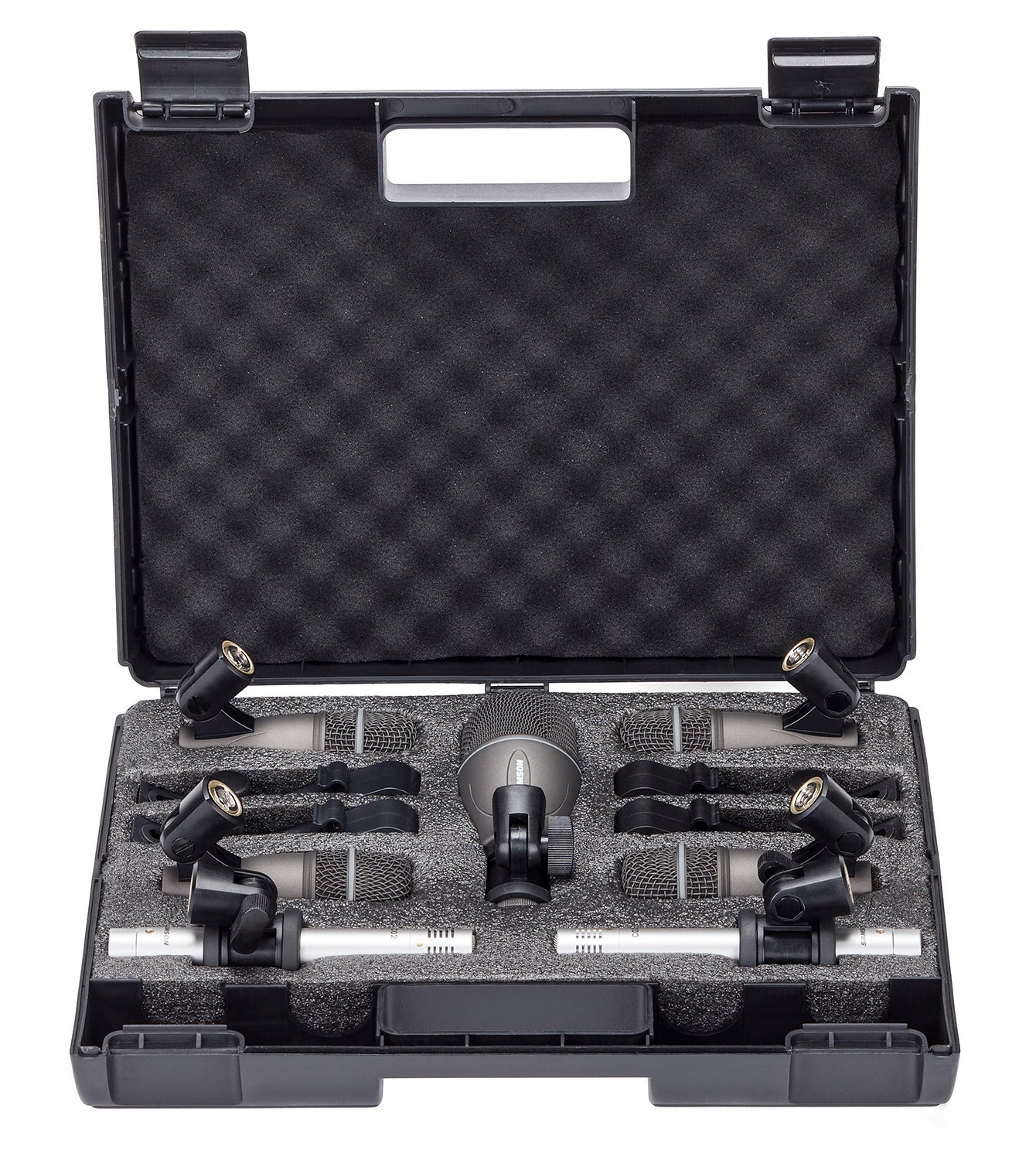

With swivel-style adapters for each microphone and tensioned rim clips for the Q72s, the DK707 makes setup quick and easy. And with the touring musician in mind, a deluxe hardshell carrying case is also included.
Features / Specs
Features

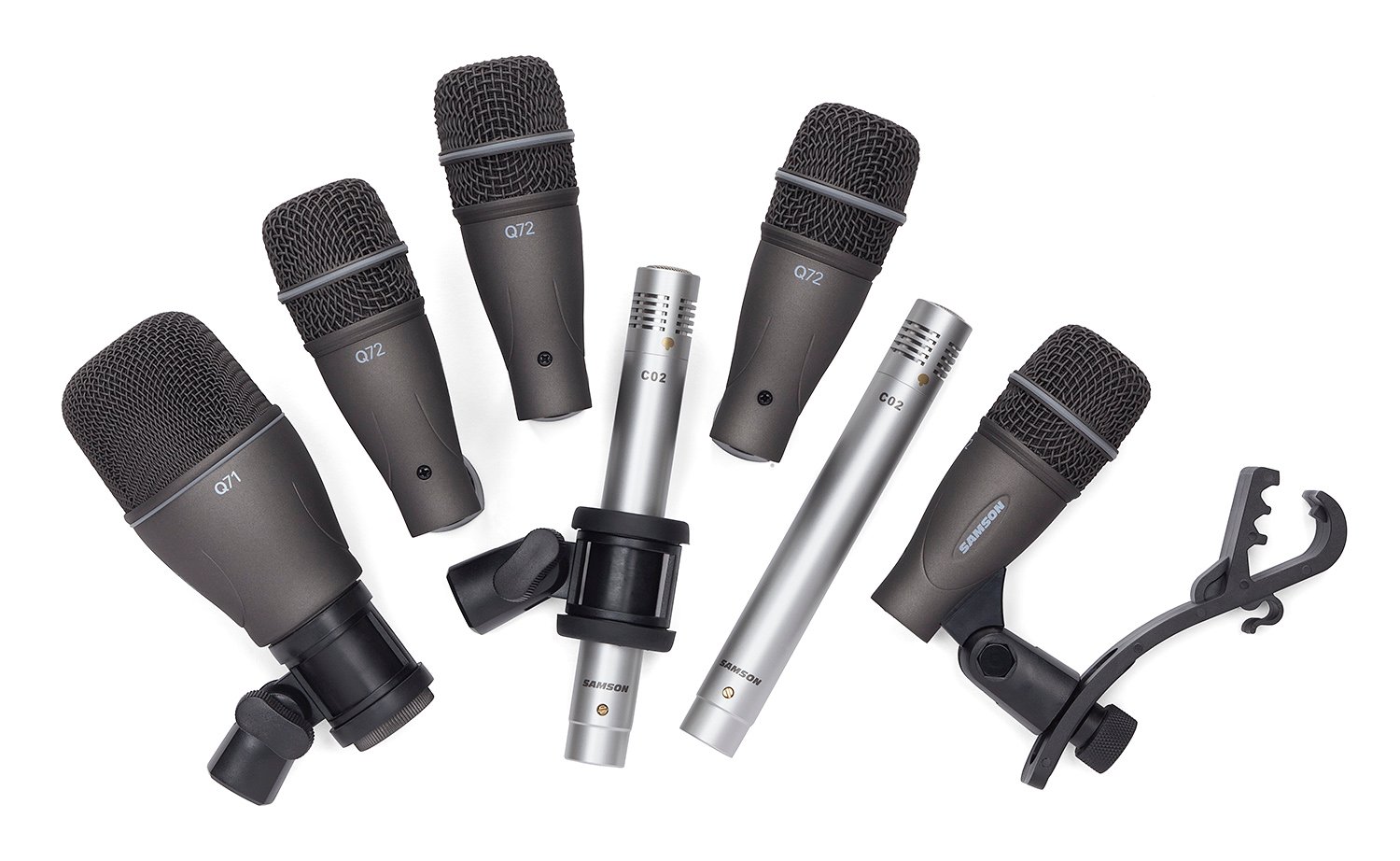

- 7-piece drum mic kit
- One Q71 Kick Drum Microphone with swivel-style mic adapter
- Four Q72 Instrument Microphone with swivel-style mic adapters and tension-mounted rim clips
- Two C02 Pencil Condenser Microphones with shock-mounted swivel-style mic adapters
- Includes hardshell carry case
Specifications
Type | Dynamic Microphone |
---|---|
Polar Pattern | Super Cardioid |
Frequency Response | 50~16000 Hz |
Sensitivity | -62 dBV/pa (0.8mv/pa) |
Rated | Impedance 200Ω |
Max. SPL | 147 dB (THD≤ 0.5% 1000 Hz) |
Weight | 370g |
Type | Dynamic Microphone |
---|---|
Polar Pattern | Super Cardioid |
Frequency Response | 50~16000 Hz |
Sensitivity | -55 dBV/pa (0.78mv/pa) |
Rated Impedance | 200Ω |
Max. SPL | 133 dB (THD≤ 0.5% 1000 Hz) |
Weight | 150g (with DMC 100) |
Type | Condenser |
---|---|
Polar Pattern | Cardioid |
Frequency Response | 40~20000 Hz |
Sensitivity | -40 dBV/pa (10mv/pa) |
Rated Impedance | 200Ω |
Equivalent Noise Level | 22 dB (A weighted IEC/DIN 651) |
Max. SPL | 134 dB (THD≤ 0.5% 1000 Hz) |
Dynamic Range | 112 dB |
Current Consumption | 3.5 mA |
Dimensions | ø20 x 150 mm |
Weight | 170g |
