LMU1

Lavalier Microphone with USB adapter

The LMU1 is a lavalier microphone and USB audio adapter bundle designed for content creators, journalists, vloggers, streamers, and remote workers. Connect directly to a PC, Mac, or Chromebook to capture broadcast-quality audio with simple plug-and-play operation.

Great for: Audio for Video, Work From Home, Education, Content Creation

Highlights

  • Put Your Voice in the Spotlight

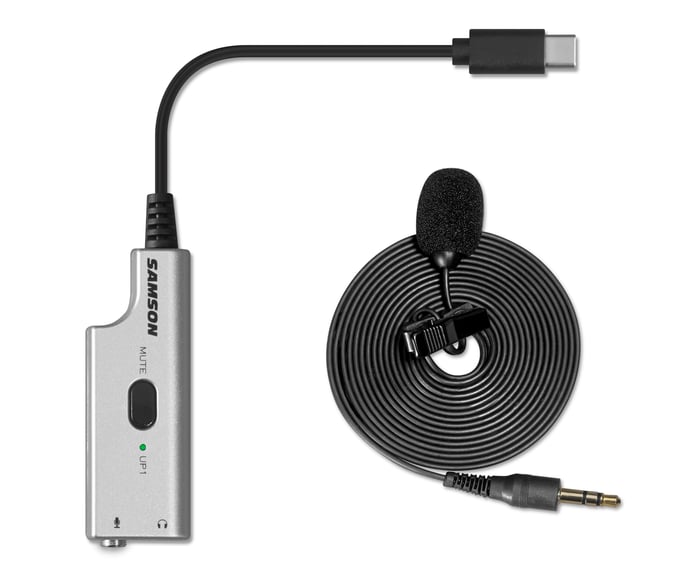

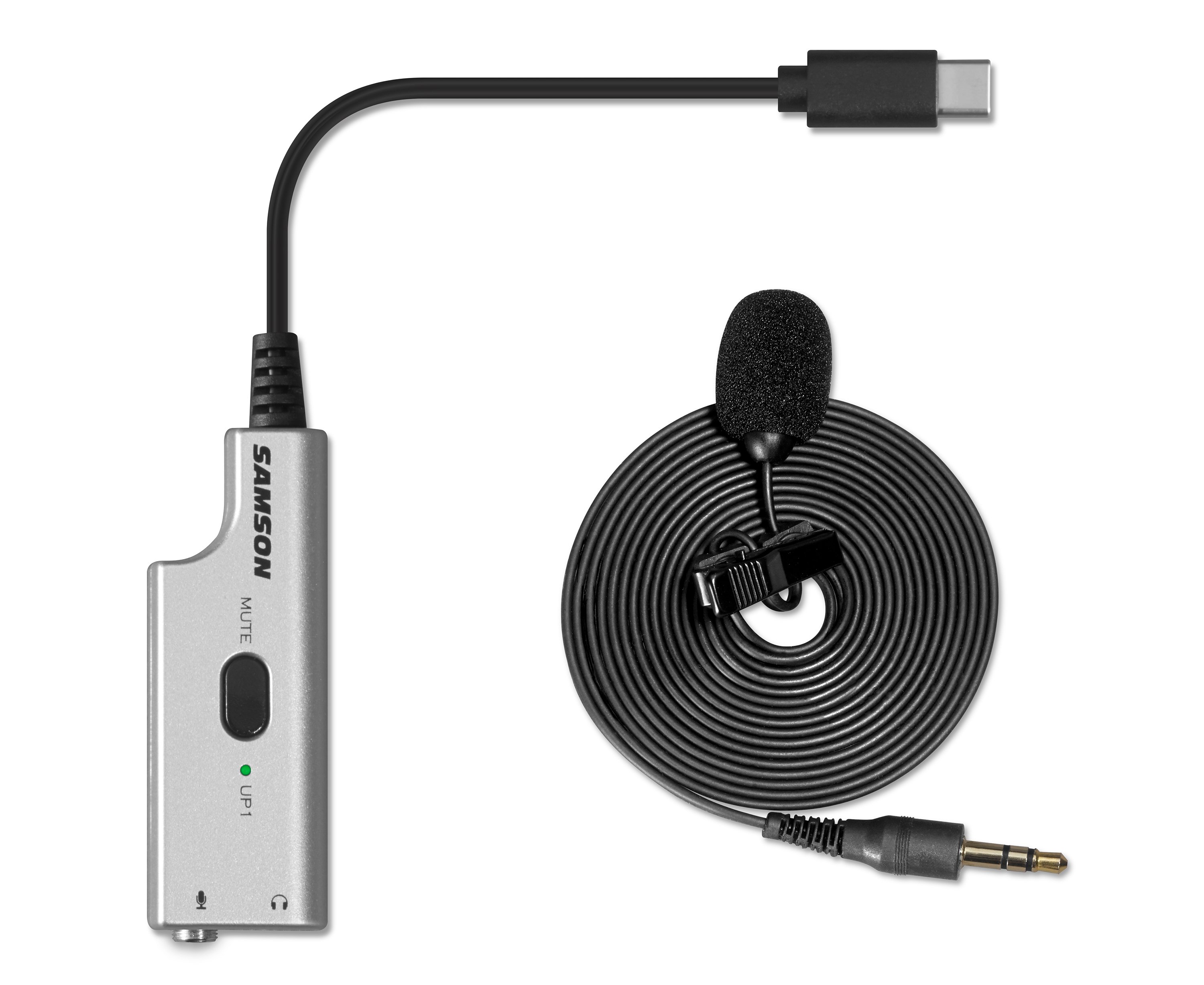

    The LMU1 bundle includes an LM8, a low-profile lavalier microphone with a 6.59mm capsule. An omnidirectional pickup pattern captures sound evenly in all directions without proximity effect or off-axis coloration. The result is clear, articulate vocal reproduction regardless of the capsule's position relative to the sound source. Plus, the lightweight clip design allows for low-profile, nearly invisible placement on ties, lapels, and more.

    LM1U-UP1-Model-Laptop-3

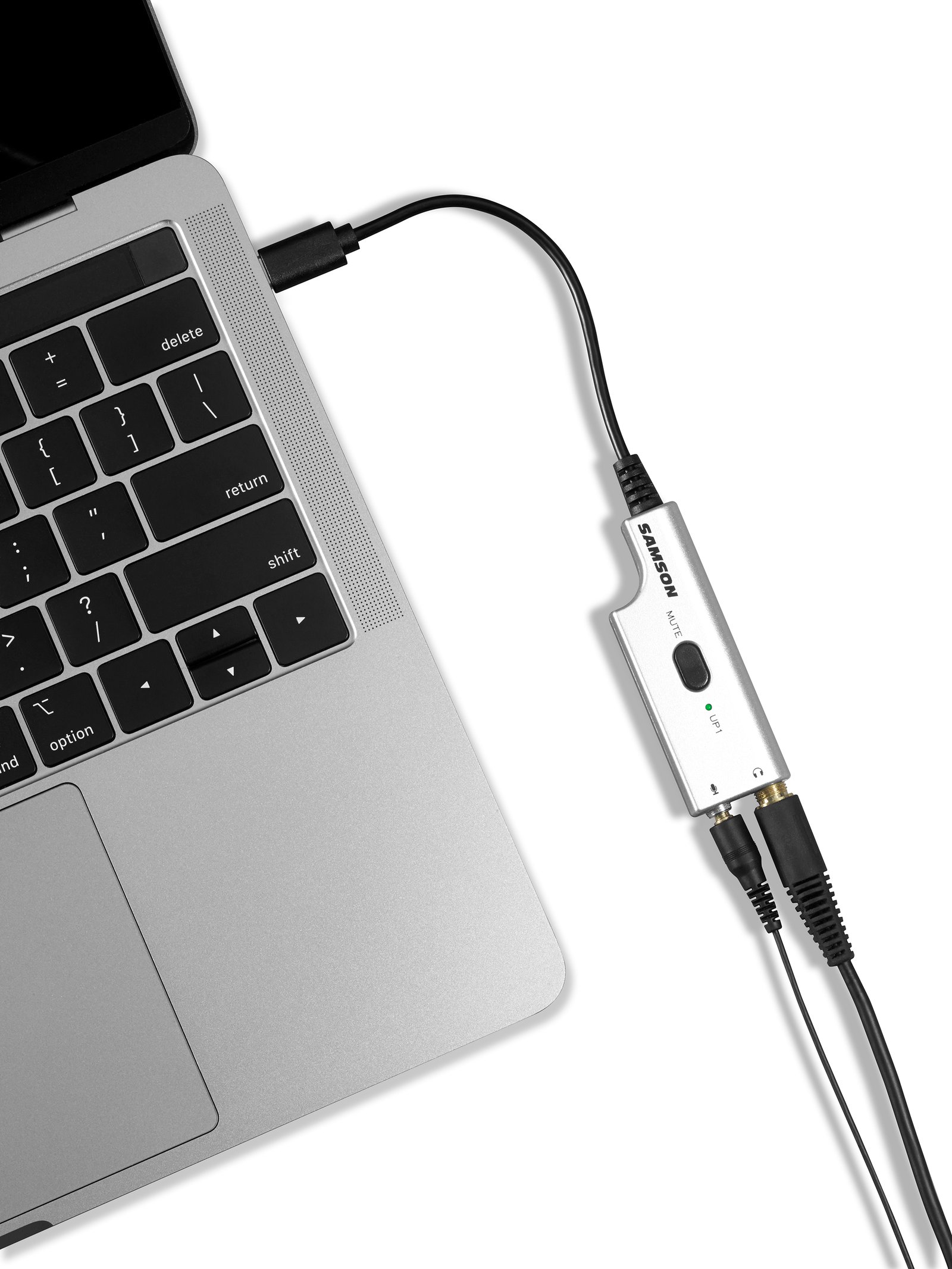

  • LM1U-UP1-Laptop

    Well Adapted

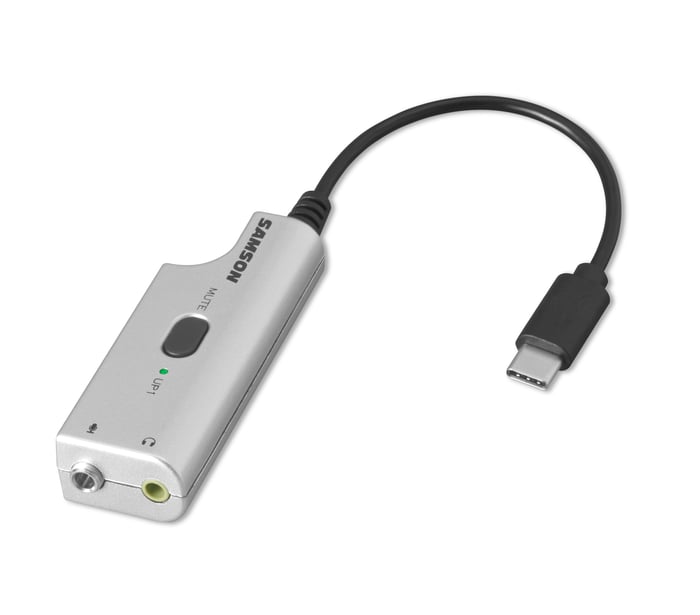

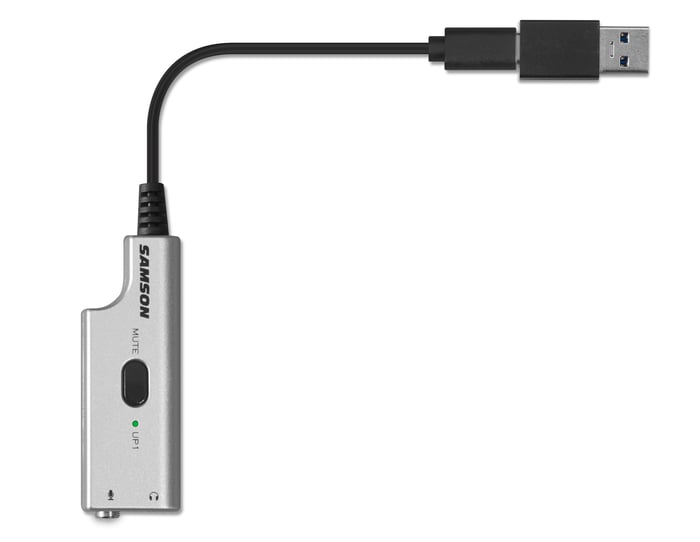

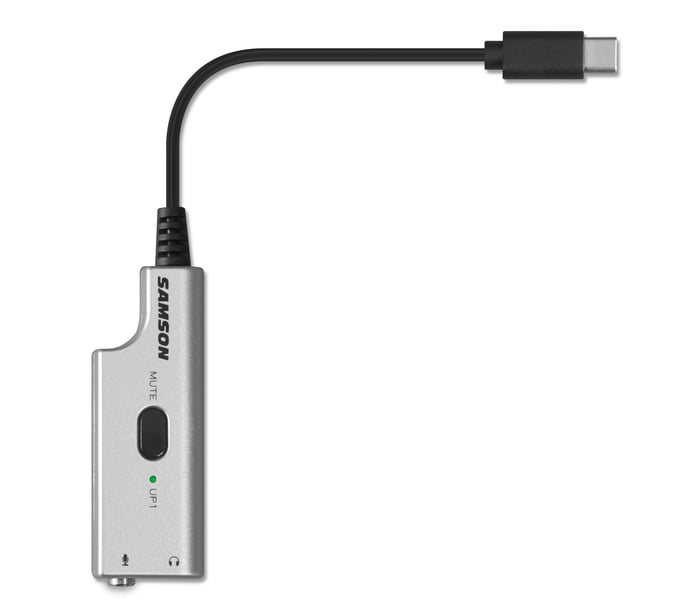

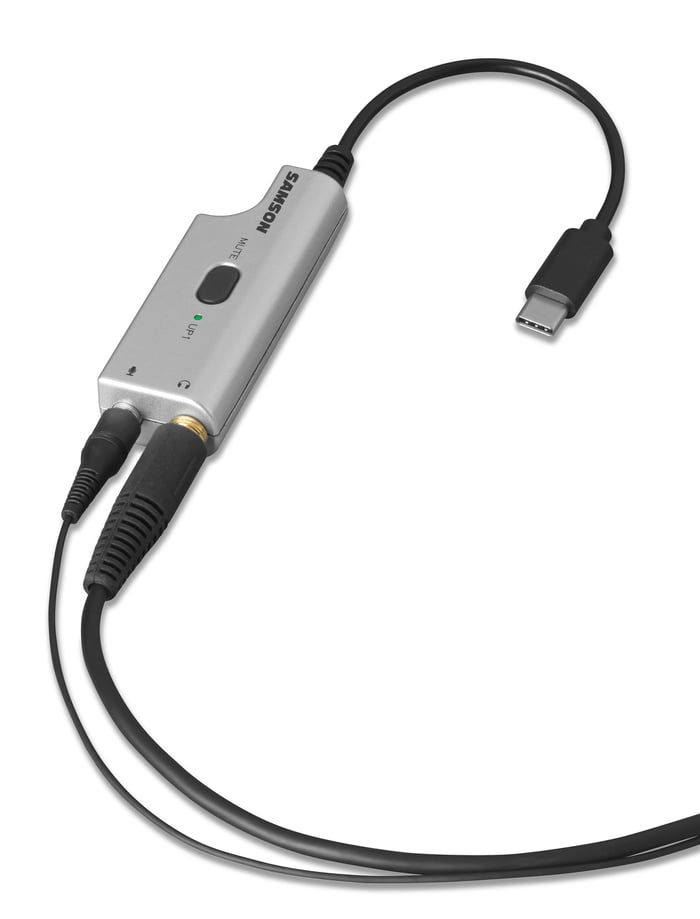

    The UP1 is an analog-to-digital USB audio adapter with a 1/8" (3.5 mm) microphone input and a 1/8" (3.5 mm) headphone output. It features a USB Type-C connector and includes a USB C to USB A adapter for connection to any computer.

Features / Specs

Features

  • LM8 Omnidirectional Low-Profile Lavalier Microphone
  • UP1 USB Audio Interface with USB C connecter
  • Includes USB C to USB A adapter
  • 1/8" Microphone Input
  • 1/8" Stereo Headphone Output
  • Mute Switch

Specifications

Microphone LM8 Omnidirectional Low-Profile Lavalier
Microphone Input 1/8” mono input, T: signal +3VDC mic bias, R: n/c, S: ground
Frequency Response 12Hz-18kHz, +0/-1dB
Maximum Input Signal +11dBu, ≤1%THD+N, 100Hz-20kHz minimum gain settings
Noise Floor -89dBFS (A-wt.) minimum gain settings
Dynamic Range 87dB (re 0dBFS, A-wt.), microphone gain setting: -1.1dB
Headphone Output 1/8”stereo input, T: left channel, R: right channel, S: headphone ground
Frequency Response 20Hz-18kHz, +0/-3dB
Maximum Output Power 25mW (re 0dBVS, 22Hz-22kHz BW)
Noise Floor -95dBU (A-wt.)
Dynamic Range 93dB (re-2dBU, A-wt.)
Digital to Analog Volume 0dBFS USB playback = -2dBu headphone out
USB I/O USB Type-C (USB2.0), USB C to USB A adapter included
Bit Depth 16-bit
Sample Rate 44.1kHz/48kHz
Power +5VDC, 100mA max
OS Compatibility MacOS, Windows, Linux, iOS, Android
Weight 0.67oz / 19g
Dimensions 8.25" x 0.9" x 0.6" / 210mm x 24mm x 15.75mm
