MDR10

10-Channel Mixer

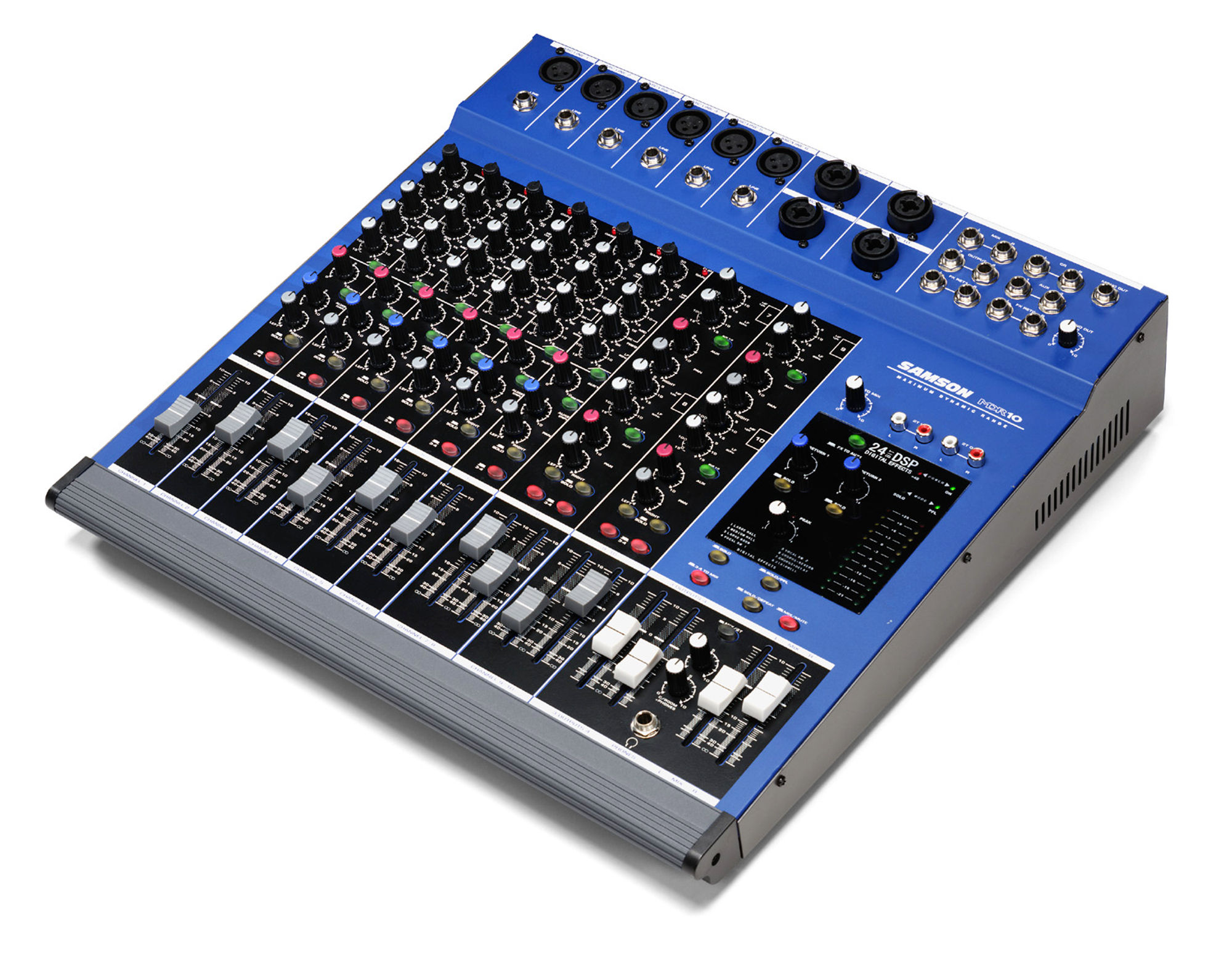

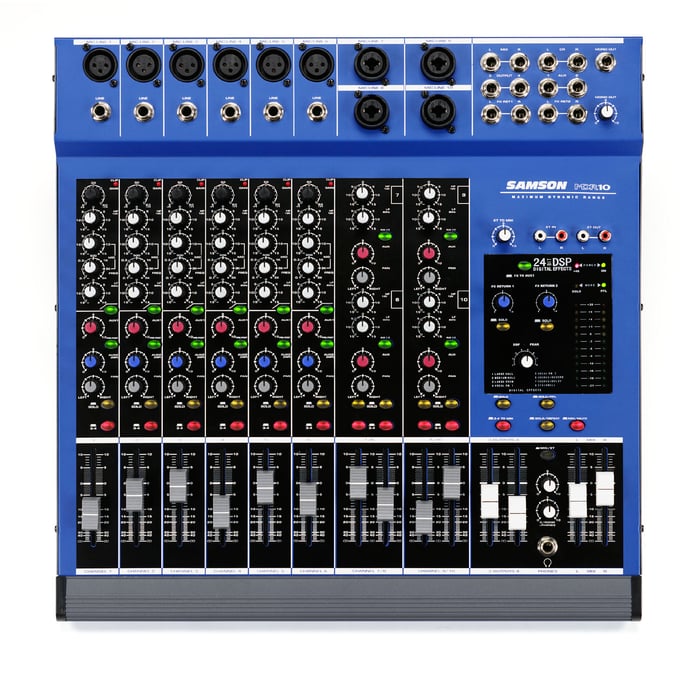

The MDR10 is a 10-channel mixer with ten low noise microphone preamps, four output buses and a built-in 24-bit DSP effects processor. This compact stereo mixer features six mono mic/line input channel strips with a 3-band, mid-swept equalizer plus a low cut filter for setting just the right tone on your microphones or instruments. These channels also offer auxiliary sends that can be used for creating a monitor mix and for routing your signals to effects processors. The mono channels also feature a pan control for creating a stereo image, bus output assign switches and a 60mm fader for setting the level. The MDR10 provides clean, clear sound reproduction with dazzling digital effects--including delay, chorus and lush reverb--packaged in a rugged enclosure. Optimized for recording, live sound reinforcement and commercial installations, the MDR10 is an ideal mixing solution offering big sound from a compact package.

We're sorry, this item is unavailable for order

Features/Specs

  • 10-channel stereo mixer with 2 + 2 bussing
  • Preamps on each channel
  • Low noise op-amps
  • Low impedance circuit design
  • 24-bit DSP effects
  • 60mm faders on each channel and mains
  • 3-band EQ with sweepable mids and a low cut filter on channels 1 thru 6
  • 10 XLR inputs with mic preamps
  • Mono out with level control
  • Dual 12-segment LEDs
  • 2 Aux sends with 2 stereo effects returns
  • Headphone out with level control
  • Phantom power
  • 2-track in and out connectors with send to mix switch
