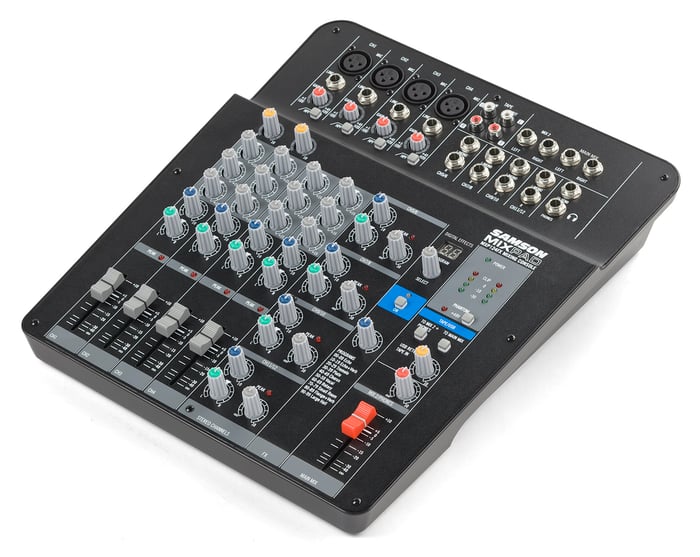

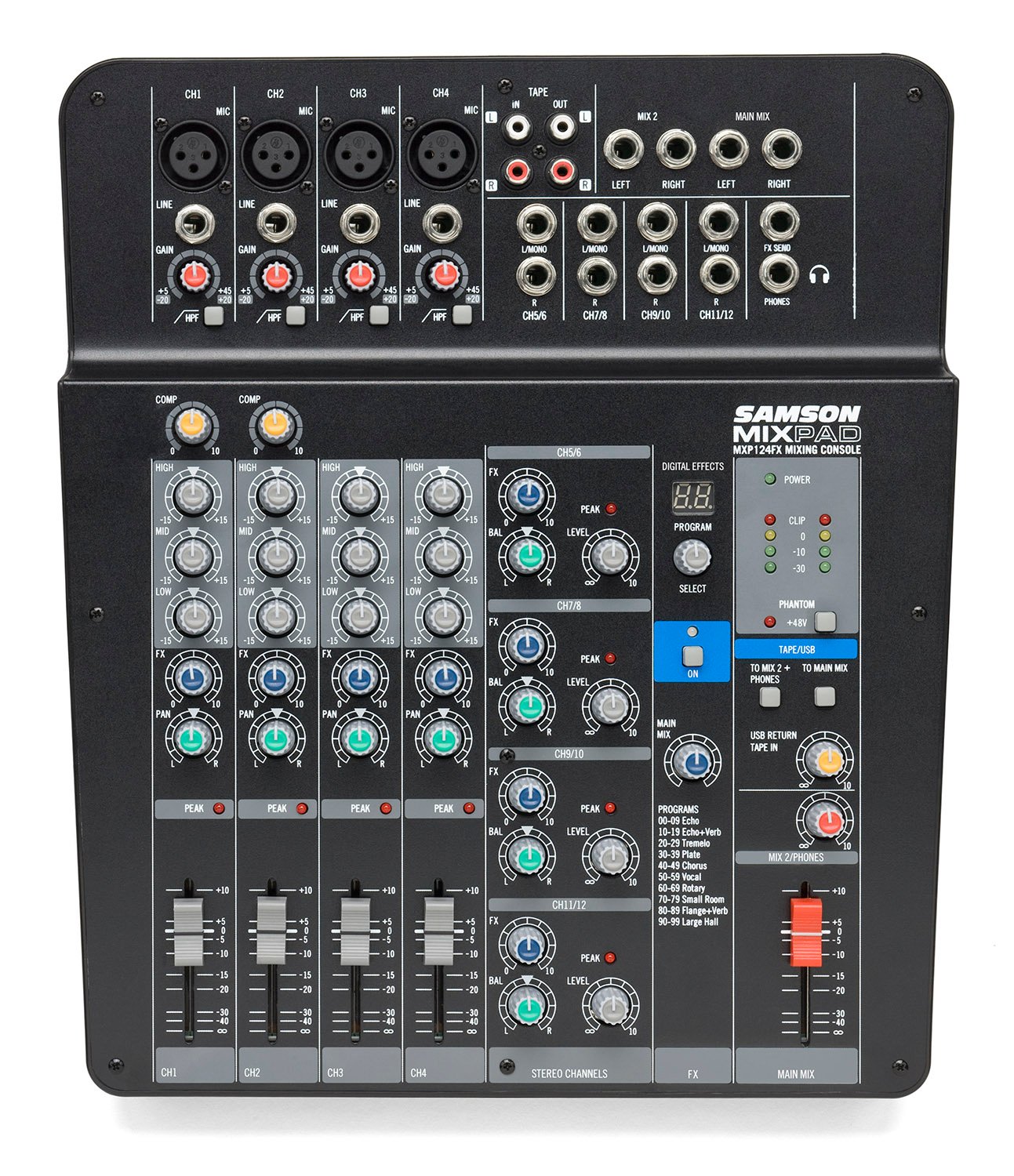

MixPad MXP124FX

12-Input Analog Stereo Mixer with Effects and USB

The MixPad® MXP124FX is a compact, 12-input analog stereo mixer with effects and USB that demonstrates Samson's commitment to quality, affordability and professional specifications. This lightweight mixer delivers the sonic clarity, ease-of-use, and premium performance that serious musicians demand.

Only Left

Preorder Today

Coming Soon

Call to order

We're sorry, but this item is unavailable.

Free -Day Shipping

Get it by when you order within

Get it if you order in Price:

Get it sooner

Great for: Audio for Video, Education, Theater / Production, Content Creation, Restaurant / Retail, Work From Home, Fitness, Home Audio

Premium Value For Live Mixing

The MXP124FX features premium circuitry specifically designed to work with Samson's MDR (Maximum Dynamic Range) mic preamps to provide a wide frequency range, definitive channel separation and natural response. This ensures that all your mixes originate from pure, authentic audio signals, making the MXP124FX perfect for education, broadcast, band rehearsals, and other live sound applications.
Upgrade Your Mixes

With 100 low-noise, 24-bit digital effects, the MXP124FX offers a studio-inspired effects processor to add a professional touch to your mixes. The mixer also features a high-integrity, bi-directional USB connection for recording a mix into your favorite DAW or incorporating digital music files from your computer into a project.
Compact Powerhouse

The MXP124FX features four MDR mic preamp channels, each with 3-band EQ, gain trim, high-pass filter, and pre-fader aux send. It also features high-quality faders that are not typical of such a small-format mixer. Two of its mic channels feature single-knob compressors for studio-quality dynamic control without the constant tweaking of external gear. In addition, the MXP124FX features four stacked stereo channels for increased input versatility and portability. Exceptional output flexibility makes the MXP124FX a worthy companion regardless of venue size, giving you precise fader control of your main mix, as well as a Mix 2 output, headphone (phones) monitoring with level control, and an RCA tape out for recording your performance.
Bringing Your Sound to Life

The MXP124FX has selectable 48V phantom power, so you can mix in the warm, natural response of your favorite condenser mics. For live performance, the MXP124FX features brightly colored knobs and a 4-segment LED level meter for safe and efficient operation in dark environments.
Portable, easy to use, and packed with features that ensure optimal control over your performance, the Samson MixPad® MXP124FX represents a new era of possibilities for affordable live mixers.

Ultra-low noise, high headroom analog mixer
Four Class A, MDR (Maximum Dynamic Range) mic preamps with 3-band EQ
Four Stacked-Stereo channels
High-quality, precision faders
Two single-knob, studio-quality compressors
High-integrity, bidirectional USB interface
100 24-bit, low-noise digital effects
One pre-fader Aux Send per channel for monitor mix
All mic channels equipped with input Gain and high pass filters
48V Phantom Power for condenser microphones
Multiple outputs: Main Mix, Mix 2, Phones and Tape
USB/Tape inputs assignable to Main Mix or Mix 2/Phones outputs
Optional mic stand mount available

Specifications

Frequency Response (Trim @ Min, unity gain ± 3 dB)
Mic to Main	20Hz~30KHz
Line to Main	20Hz~30KHz
Aux Return to Main	20Hz~30KHz
Line to Aux Send	20Hz~30KHz

T.H.D. (Trim @ Min, +4dBu output, unity gain, 1 kHz w/30 kHz LPF)
Mic/Line to Main (Mono Ch)	<0.03%
Line to Main (Stereo Ch)	<0.03%
Line to Aux Send	<0.03%

Equivalent Input Noise (“A” filter on, input shorted)
Mic (Trim @ Min﹐ Fader set ”0”)	< -90dB 20HZ~30KHZ A-weighted
Line (Trim @ Min﹐ Fader set ”0”)	< -90dB 20HZ~30KHZ A-weighted

Maximum Voltage Gain
Mic to Main	63dB
Line to Main (Mono Ch)	39dB
Line/Tape to Main (Stereo Ch)	26dB
Mic to Aux Send	63dB
Line to Aux Send (Stereo Ch)	29dB

Residual Noise (30 kHz LPF, all control Min)
Main (All fader min)	-105dBu A-weighted
Aux Send (All fader min)	-94dBu A-weighted

Crosstalk (@ 1 kHz w/ 30 kHz LPF)
Ch vs. Ch (Trim @ min﹐Fader set 0)	>75dB A-weighted
Input vs. Output	>60dB A-weighted

Maximum Input Level (1 kHz, ± 3dB)
Mic Input (Mono Ch)	+16dBu
Line Input (Mono Ch)	+40dBu

Input Channel Equalizer (± 3dB)
High	±15 dBu
Mid	±15 dBu
Low	±15 dBu

PEAK Indicators
Mic (Mono Ch)	+16dBu
Line (Stereo Ch)	+16dBu

Phantom Power	48V±3V
Headphone output (600 ohm load)	+20dBu
Internal DSP Effects	100 presets
USB Bus Power	USB2.0 +5V DC 0.5A max
Dimensions (W x D x H)	12.9” x 11.7” x 3” / 327mm x 298mm x 75mm
Weight	5.0lb / 2.3kg
