Powerful and Versatility

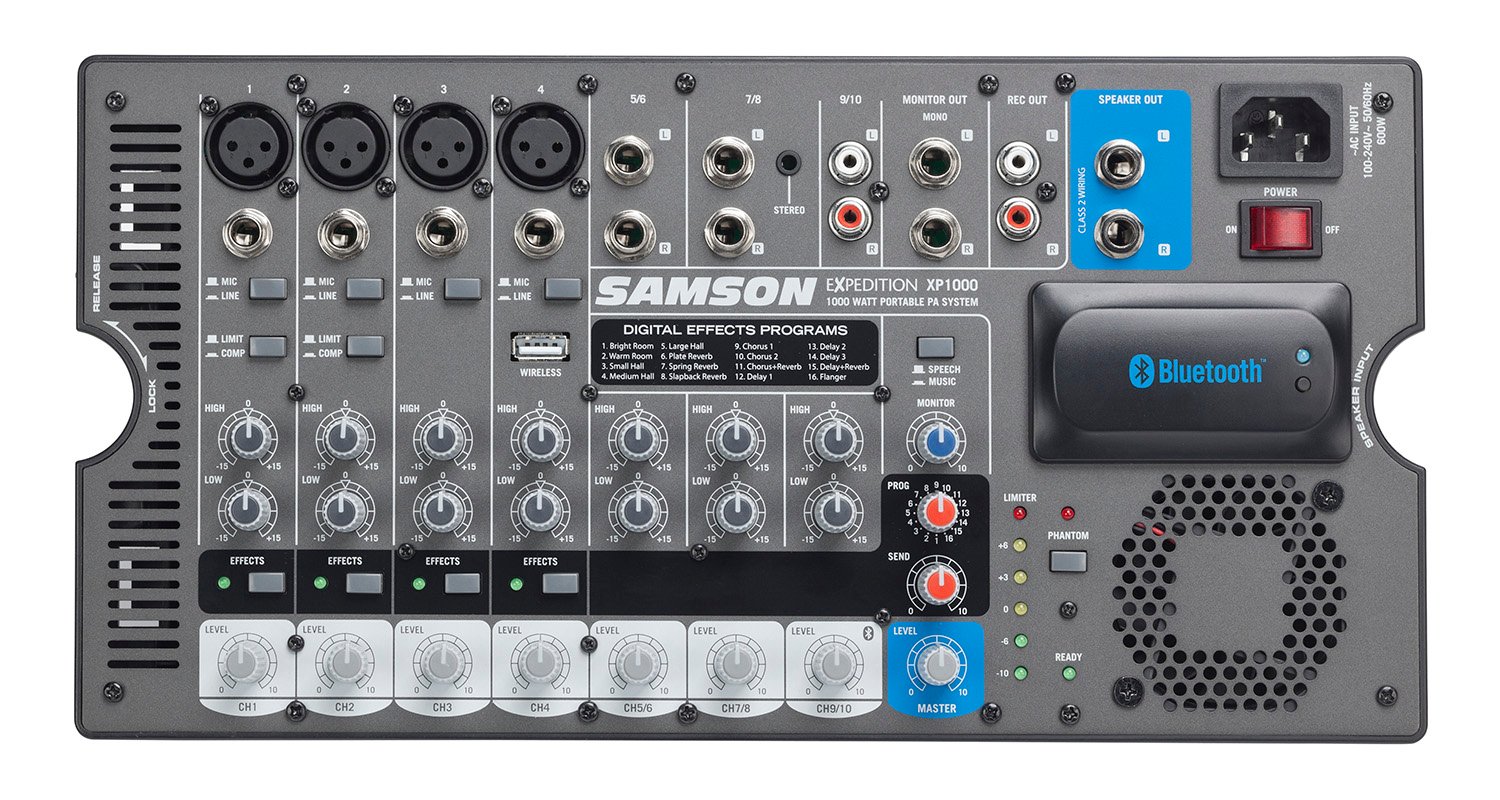

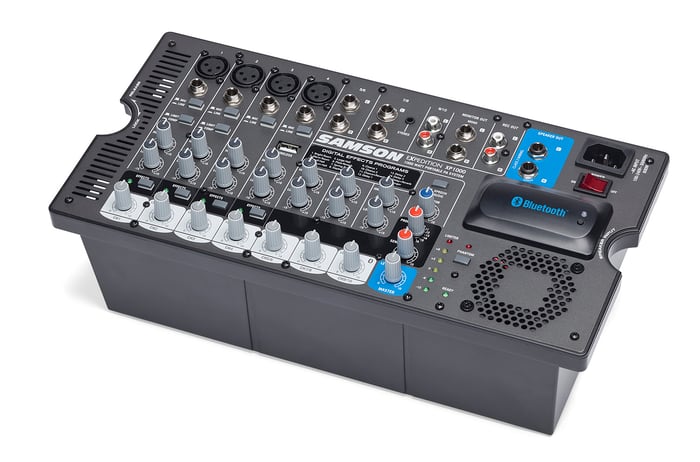

The XP1000 features a detachable 10-channel mixer powered by an impressive 1,000-watt (2 x 500) Class D amplifier. The mixer features four mic/line input channels, each with XLR and 1/4" inputs, for connecting microphones or active line level instruments. There are also three stereo input channels for connecting external devices such as MP3 players, keyboards, and more. Each channel has bass and treble controls, and the first two mic/line channels have a selectable compressor to balance levels while preventing clipping and distortion. For more control over your sound, the XP1000 offers 16 presets of high-quality DSP effects, perfect for vocals. For larger applications, the XP1000 offers stereo monitor outputs with level control to use the system with additional powered speakers.
-
Big Sound

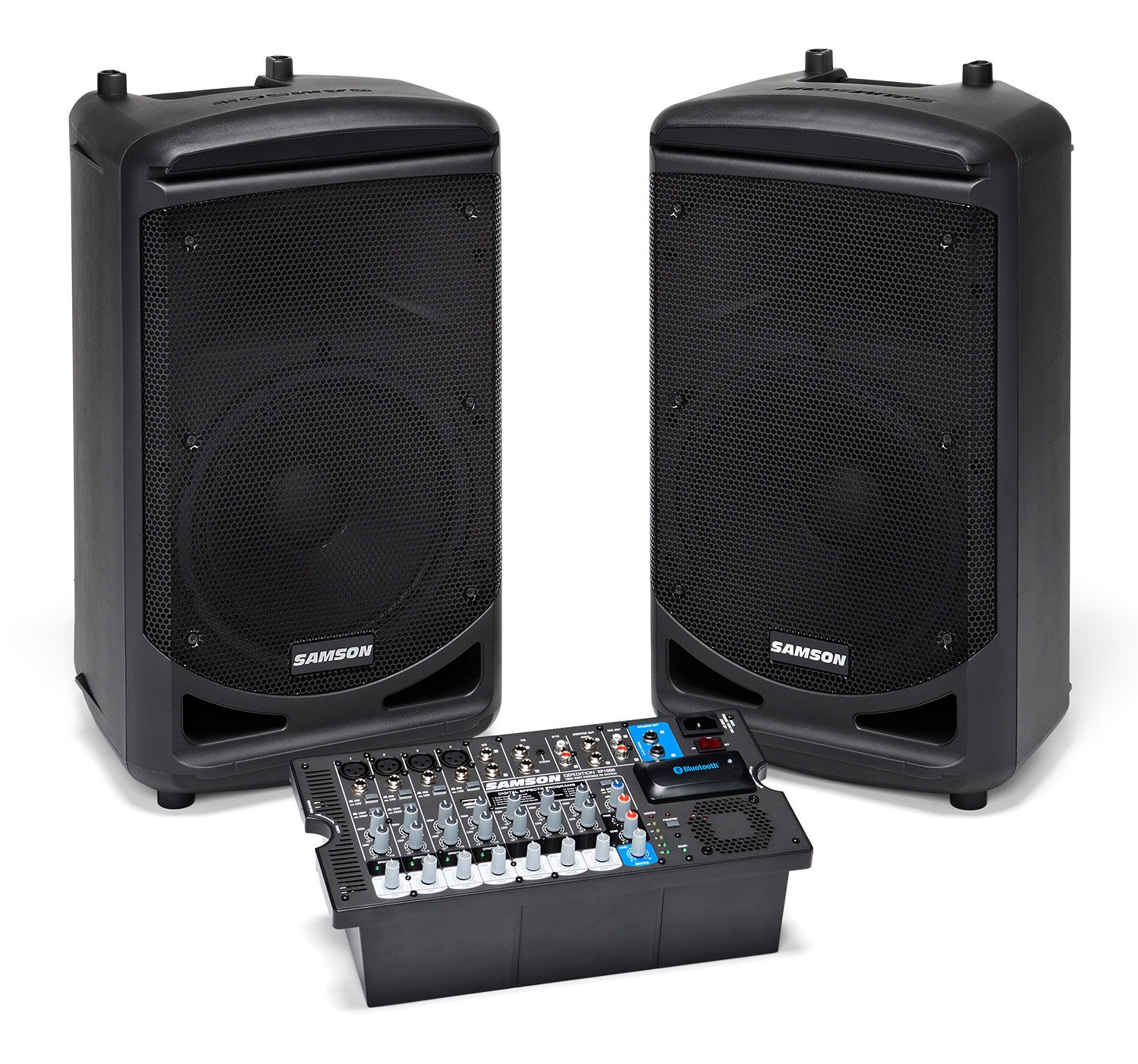

The XP1000's 2-way vented speakers offer a clean and powerful stereo sound. Their 10" low-frequency drivers produce excellent low-end punch, while the 1" high-frequency drivers receive wide dispersion from 60° x 90° horns. The ABS high-impact enclosures feature integrated 1 3/8" speaker stand mounts for performance versatility, and a 30° tilt-back design for use as floor monitors.
Flex Your Sound

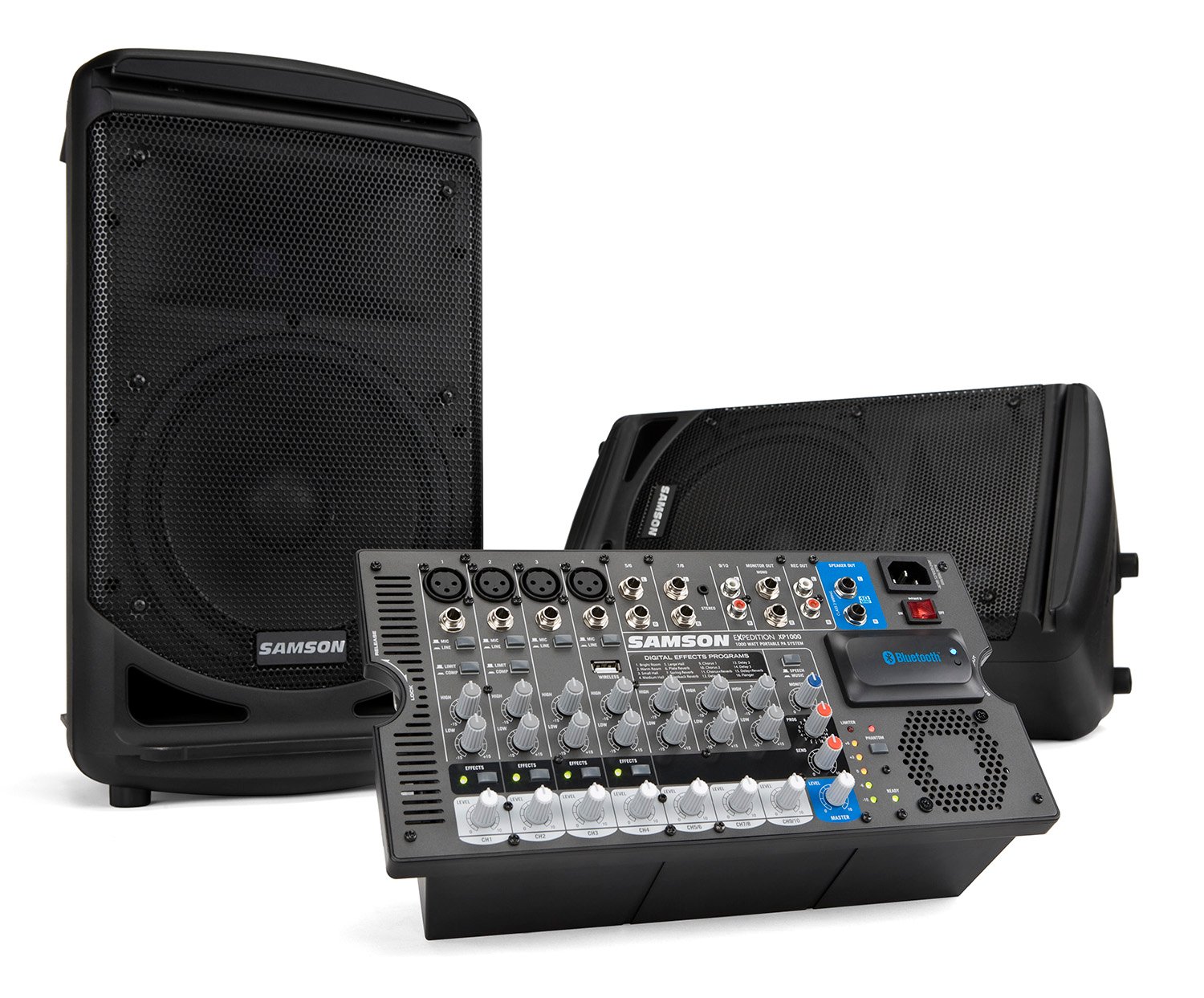

The Expedition XP1000 stands out as a complete portable PA system that is perfect for medium to large musical, educational, business, and recreational applications. Its Bluetooth capability allows you to wirelessly stream music from your smartphone, tablet or laptop. The XP1000 is lightweight and compact, making it easy to transport and set up. With its powerful 1,000-watt (2 x 500) Class D amplifier and convenient portability, the XP1000 is the perfect solution for anyone looking to enhance their audio experience.
-
Go Wireless

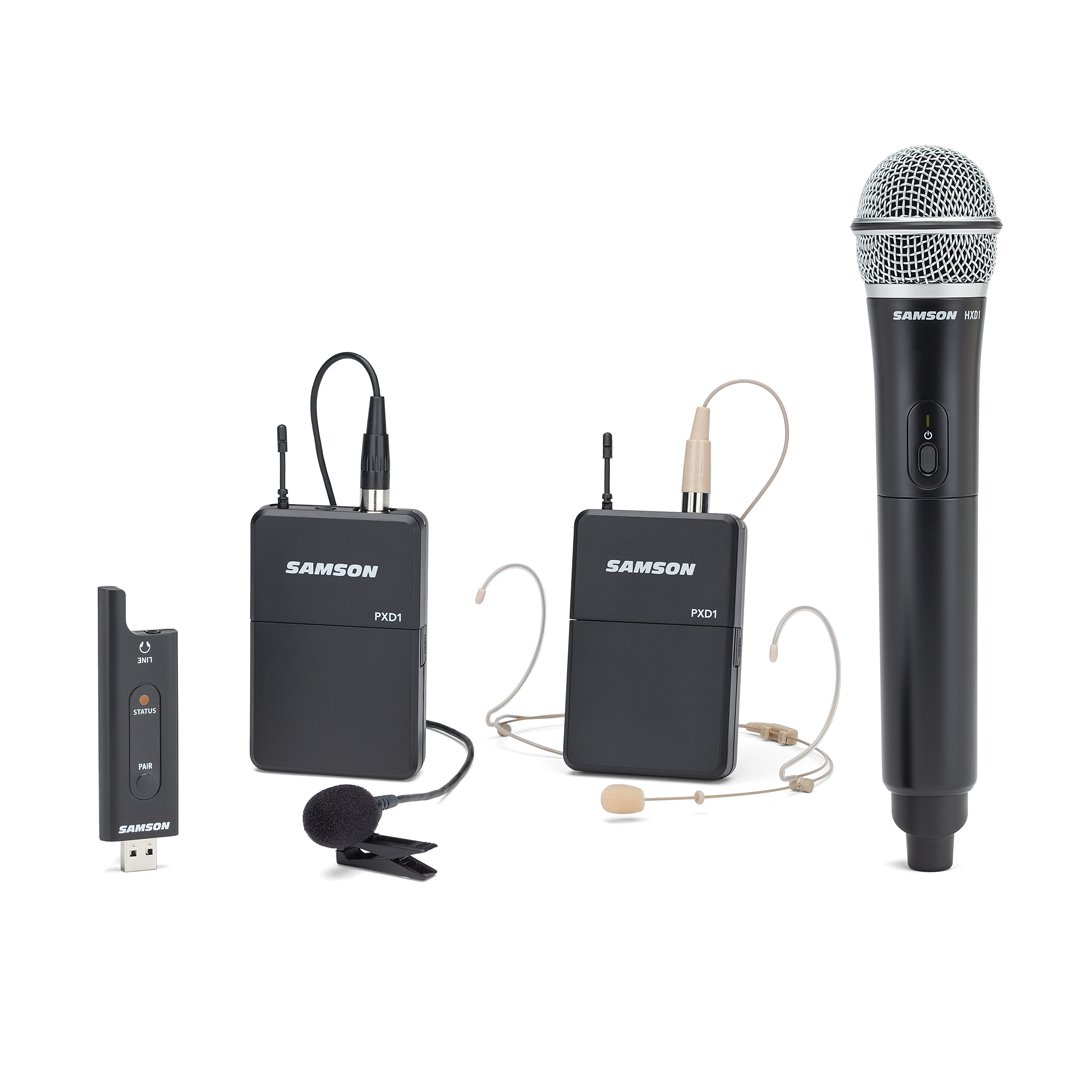

The XP1000 includes a USB Wireless port for integrating Samson's XPD USB Digital Wireless Systems (sold separately), now available in handheld, headset and lavalier configurations.
Features / Specs

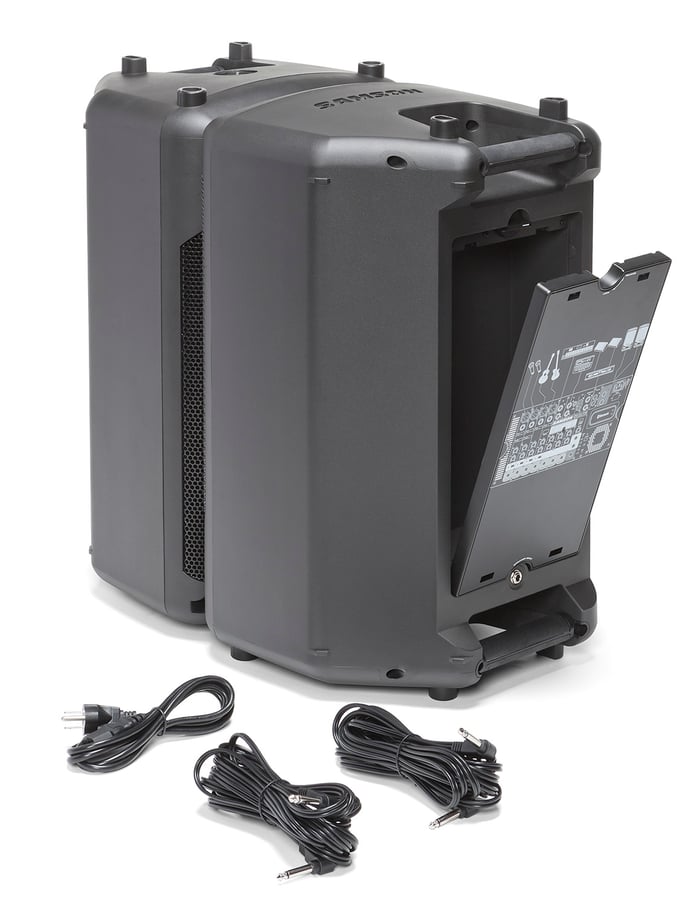

- Packs up into a single portable unit that weighs just over 50lb
- Lightweight, Class D amplifier produces 2 x 500 watts of stereo power
- Dual 2-way speaker enclosures with 10" woofers and 1" HF drivers
- Bluetooth connectivity to wirelessly stream music
- Removable 10-channel mixer
- Four Mic/Line inputs (XLR and 1/4" jacks) for microphone, guitars and other line level devices
- Three stereo channels with multiple input options (1/4", 1/8", RCA) for connecting external devices (MP3 players, keyboards, etc.)
- USB Wireless port for use with Samson XPD Series USB Digital Wireless Systems (sold separately)
- Bass and Treble controls on each channel
- 16 presets of 24-bit digital effects
- Phantom power for condenser microphones
- Two 1/4" Monitor outputs allow connections to external powered speakers
- Additional RCA output for external recorders
- Selectable compressor on two Mic/Line channels
- Music/Speech switch for optimizing output EQ for speech or music playback
- 6-segment level meter with limiter indicator
- Durable ABS high-impact plastic construction
- Integrated 1 3/8" speaker stand mount
- Tilt-back design for using speakers as floor monitors
- Two 25' speaker cables included
Specifications
Power (0.5% THD at 1KHz) | 1000 W @ 4Ω (500 W per channel) Peak, 500 W @ 4Ω (250 W per channel) Average |
---|---|
Frequency Response | 20 Hz - 20 kHz |
Low Frequency | 10" bass transducer |
---|---|
High Frequency | 1" tweeter |
Inputs | XLR, 1/4" balanced, RCA, 3.5mm stereo, USB Wireless |
---|---|
Outputs | 1/4" MONITOR, RCA REC OUT, 1/4" Speaker output |
Maximum Output Level (0.5% T.H.D at 1KHz) | +22dBu(MONITOR L/R) @10KΩ |
Phantom Power | +15V DC, Fixed Phantom Voltage |
Input Channel EQ | (High) 10kHz Shelving ±15 dB, (Low) 100Hz Shelving ±15 dB |
Speech/Music Switch | 167Hz, 3dB/Octave |
Indicators | 5-point Level, LIMITER, PHANTOM, READY, EFFECTS |
Bluetooth® | Bluetooth 3.0, A2DP |
Dimensions | 22.7" x 11.9" x 22" / 577mm x 301mm x 560mm |
---|---|
Weight | 52.8Ib / 24kg |
More from the Expedition Series
Expedition Portable PA Systems

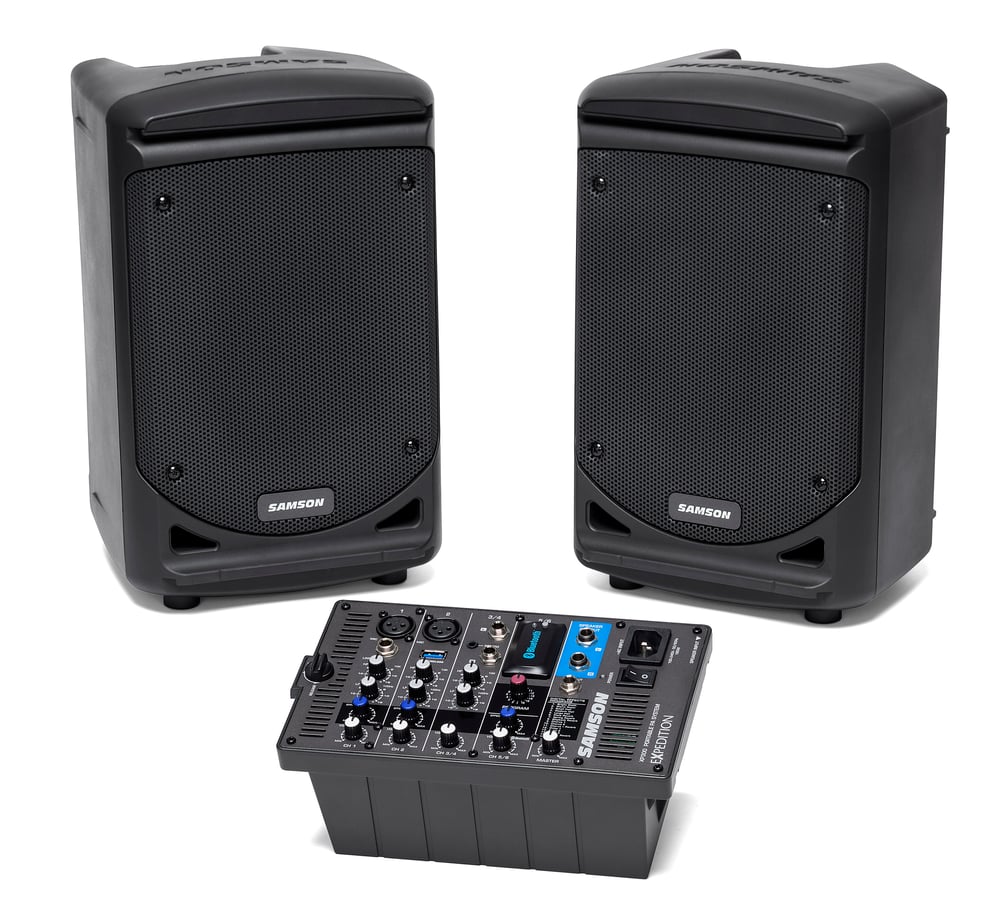

Expedition XP300 - | Expedition XP800 - | Expedition XP1000 - | |
---|---|---|---|
Audience Size | 250–500 people | 300–800 people | 500–1000 people |
Output Power | 300 watts (2 x 150 Stereo) | 800 watts (2 x 400 Stereo) | 1000 watts (2 x 500 Stereo) |
Woofer Size | 2 x 6" | 2 x 8" | 2 x 10" |
HF Driver Size | 2 x 1" | 2 x 1" | 2 x 1" |
Number of Channels | 6 (2 Mic/Line, 1 Stereo Line) | 8 | 10 |
Mic Inputs | XLR | XLR, 1/4" | XLR, 1/4" |
Line Inputs | 1/4", 1/8" (3.5mm) | 1/4", RCA, 1/8" (3.5mm) | 1/4", RCA, 1/8" (3.5mm) |
Channel EQ | Bass & Treble | Bass & Treble | Bass & Treble |
Line Outputs | 1/4" Sub Out | Stereo 1/4" Monitor Out, | Stereo 1/4" Monitor Out, |
1/4" Sub Out | Stereo RCA Rec Out | ||
Master EQ | – | Music / Speech Switch | Music / Speech Switch |
Bluetooth | Yes | Yes | Yes |
USB Wireless Port | Yes | Yes | Yes |
Effects | 16 Digital Effects | 16 Digital Effects | 16 Digital Effects |
Phantom Power | +24V DC | +15V DC | +15V DC |
Included Cables | 2 x 10' Speaker | 2 x 25' Speaker | 2 x 25' Speaker |
Dimensions | 14" x 15.5" x 8.5" /354 x 395 x 218mm | 20.1" x 10.6" x 19" / 510 x 270 x 485mm | 22.7" x 11.9" x 22" / 577 x 301 x 560mm |
Weight | 24lb | 42lb | 53lb |
