We're sorry, this item is unavailable for order
Features/Specs

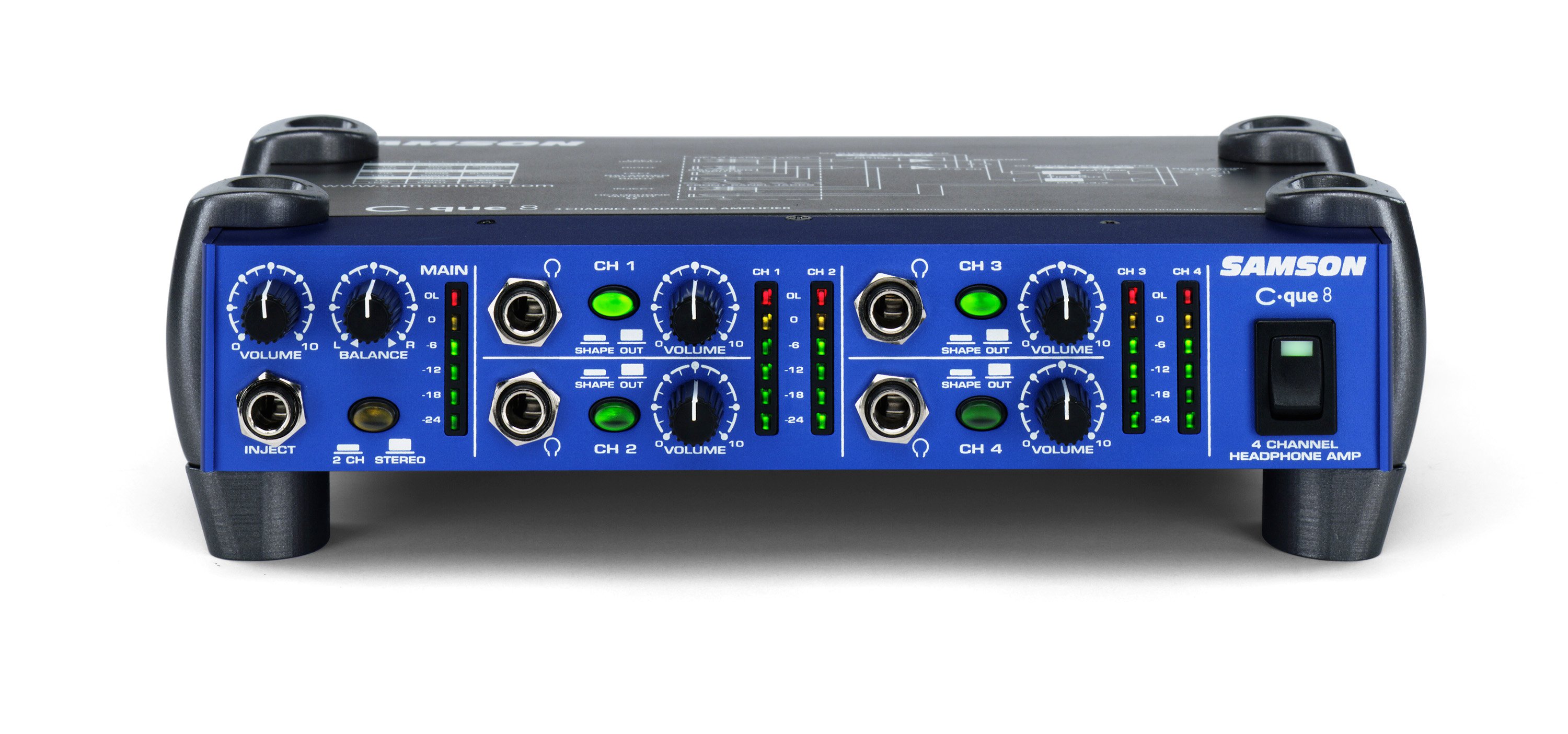

- Four channel headphone mixer amplifier providing individual controls for each channel. Ideal for digital-audio- workstations, stage and studios.
- Dual headphone outputs; one rear, plus one front panel output per channel allowing a total of eight headphones connected at the same time.
- Maximum output power on each channel regardless of different headphone impedances.
- Left and Right Line inputs for master stereo bus on balanced TRS (Tip Ring Sleeve) 1/4” phone connectors.
- Inject input on TRS (Tip Ring Sleeve) unbalanced stereo phone connector allowing for the insertion of an addi- tional stereo signal that is mixed with the stereo Line input for "more me" mixing.
- 2-Channel/Stereo mode switch configures the C que 8 to operate in traditional stereo mode, or in 2-Channel, mono mode.
- Balance controls pan in Stereo mode, or the level balance between the Line and Inject inputs in 2-Channel mode.
- EQ Shape circuit on each channel provides a “music contour” equalization curve that boosts the low and high fre- quencies of the headphone output.
- Each channel has a six-segment, LED Output meter, with a range of –24 to clip, making it easy to monitor the channel output level.
- A six-segment Main Level meter provides a clear and accurate indication of Line input level with an operating range of –24 to clip.
Downloads & Manual
