Highlights
Plug in. Rock Out.

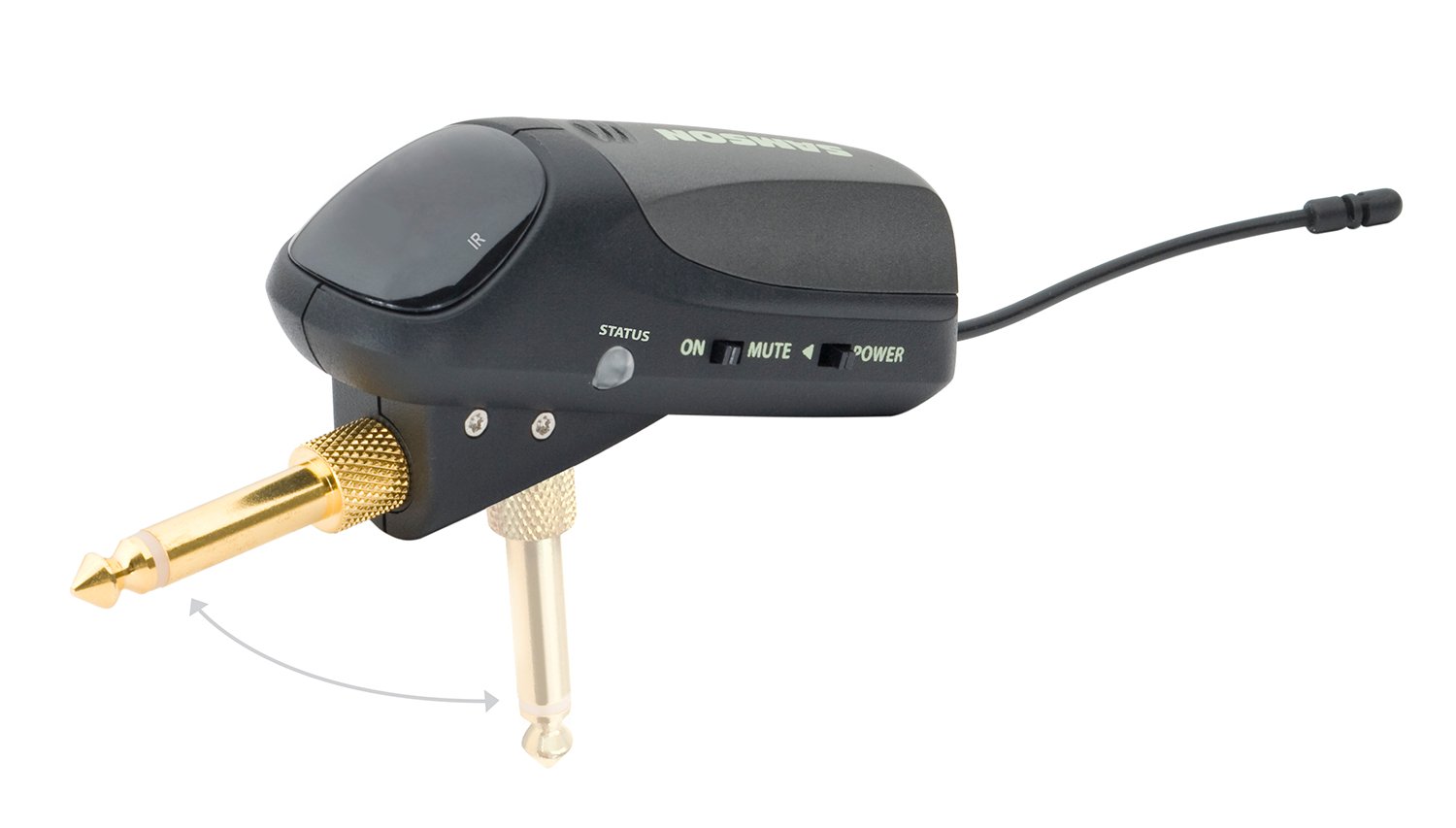

Compact and unobtrusive, the AG8 plug-in guitar transmitter is designed to be an extension of your instrument, allowing you to move freely on stage and interact with the audience like never before. It features IR sync for wirelessly matching receiver and transmitter frequency, an audio mute switch for silent instrument swapping, a battery life LED indicator, and up to 12 hours of operation on a single AA battery. The AG8 is as easy to use as a standard guitar cable. Just plug the small transmitter into your instrument and the receiver into your amp. It's that simple.
-
Versatile Performance
On stage, the AirLine 88x AG8 system offers outstanding versatility. The AG8 plug-in transmitter is designed with a dual-position connector that fits both Fender® (Stratocaster) and Gibson®-style guitar output jacks. AirLine 88x Guitar also provides exceptional low-frequency clarity, making it ideal for electric bass guitars. It's even a great wireless solution for acoustic-electric guitars, electric violins, and accordions.
Set the Stage

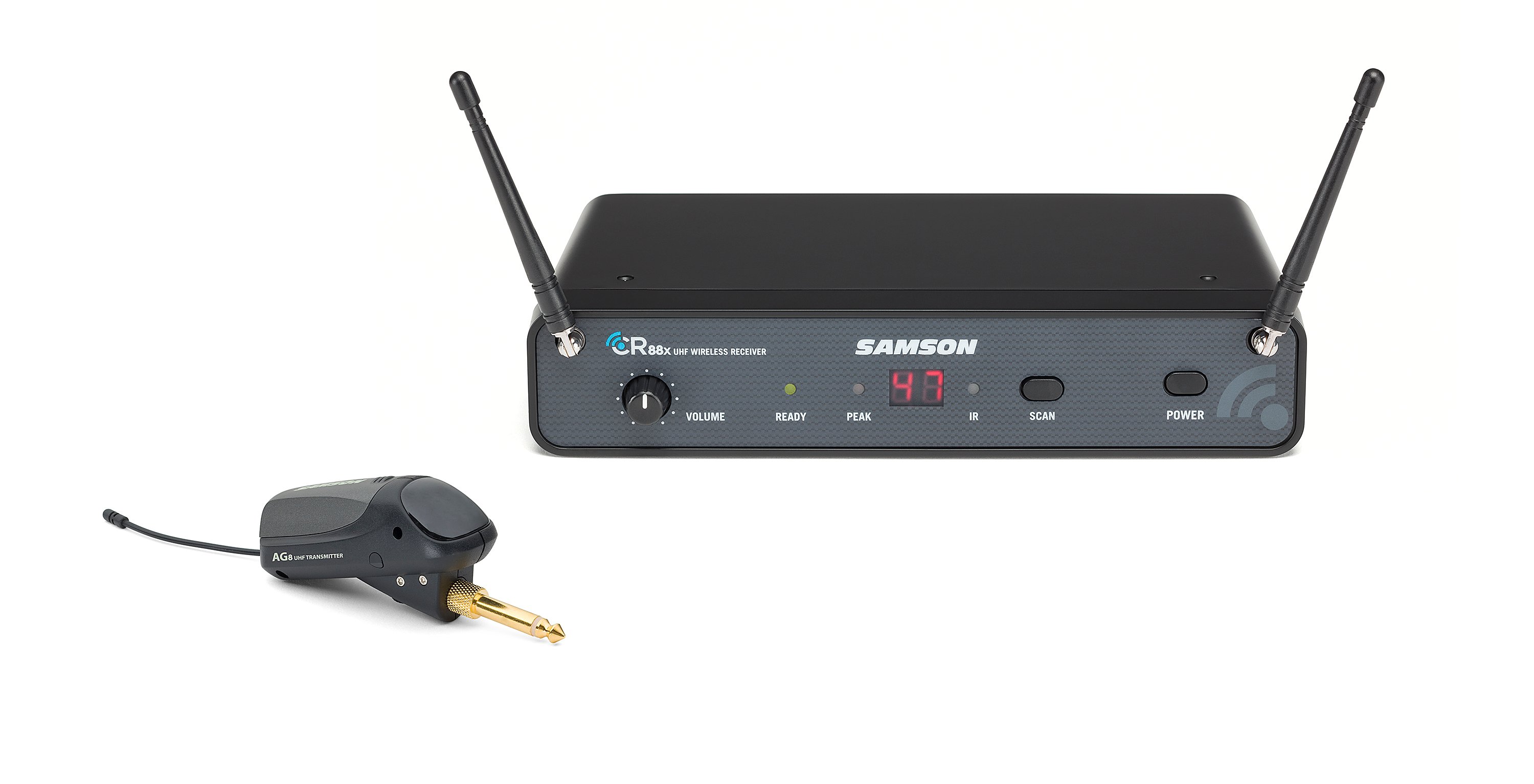

The AirLine 88x AG8 Guitar System is the ultimate wireless solution for the gigging musician who demands quick and easy setup. The system's rack-mountable CR88x receiver provides 100 wireless channels over a wide 25 MHz bandwidth and uses one-touch scanning to automatically select the clearest channel available in your performance space. The receiver's true-diversity design minimizes dropouts, while tone key and auto-mute technology eliminate unwanted noise and interference when the transmitter is out of range. The rear panel offers both balanced (XLR) and unbalanced (1/4") connectors for connection to an amplifier, sound system, or recording console. The included rackmount kit allows single or multiple CR88x receivers to be installed in a portable audio rack or fixed location.
Features / Specs
Airline 88x AG8 Guitar system
- High-performance professional UHF wireless system
- 100 operating channels across 25 MHz bandwidth
- 300' maximum operating range
- Rackmount kit included
AG8 Guitar Transmitter
- Plugs directly into the instrument (no beltpack or cable required)
- Dual-position connector fits a variety of guitar jacks
- Offers up to 12 hours of battery life using single AA battery
- Dual-color LED indicator – Low Battery; Peak Level; Mute status
- 300' operating range (line-of-sight)
- Variable Gain control
- Silent mute switch

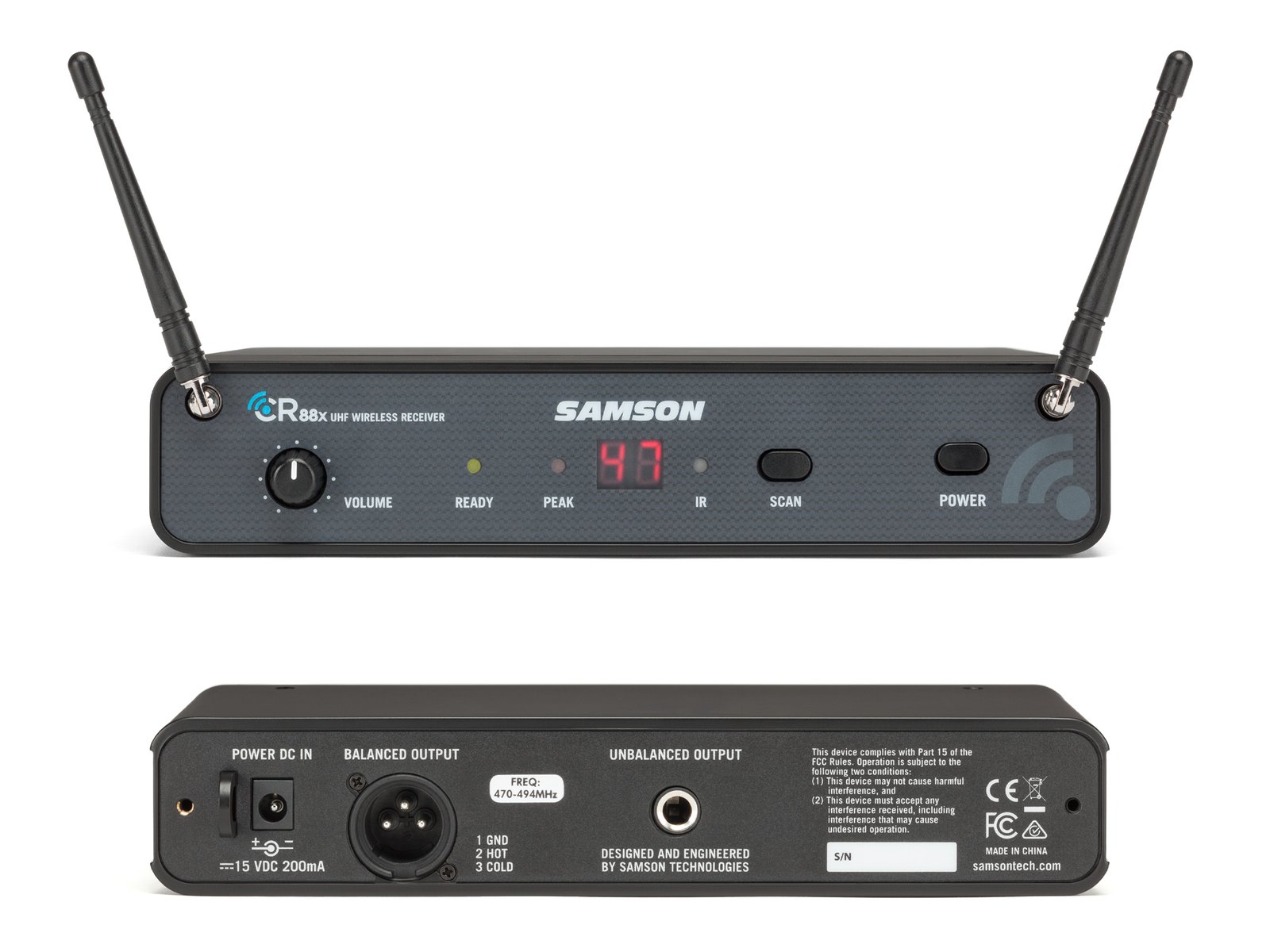

CR88x Wireless Receiver
- Bold LED display and visual indicators
- 100 available frequencies with automatic scanning/selection
- Infrared link locks the receiver and transmitter to the same channel
- True diversity design minimizes dropouts
- Tone-key and auto-mute functions eliminate background noise during dropouts
- Balanced XLR and unbalanced 1/4" outputs
Specifications
| Working Range | 300' (100m) line of sight |
|---|---|
| Audio Frequency Response | 50 Hz - 15 kHz |
| T.H.D. (Overall) | <1% (@AF 1 kHz, RF 46 dBu) |
| Dynamic Range | >100 dB A-weighted |
| Signal to Noise | >90 dB |
| Operating Temperature | –10°C (14°F) to +60°C (+140°F) |
| Tone Key Frequency | 35 kHz |
| Input Connector | 1/4” Plug |
|---|---|
| Input Impedance | 1MΩ |
| Input Gain Range | 30dB |
| RF Power | 5mW EIRP |
| Power Requirements | 1 x AA (LR6) |
| Battery Life | 5 hours |
| Dimensions (1/4” plug is mounted at 45°) | 1.17” x 1.6” x 4.5” / 30mm x 40mm x 114mm |
| Weight | 0.12lb / 50g |
| Audio Output Level - Unbalanced | +14 dBu |
|---|---|
| Audio Output Level - Balanced | +9 dBu |
| Audio Output Impedance - Unbalanced | 810 Ohms |
| Audio Output Impedance - Balanced | 240 Ohms |
| Sensitivity | -100 dBm / 30 dB sinad |
| Image Rejection | >50 dB |
| Operating Voltage | 15 VDC 200mA |
| Dimensions | 8.25" x 4.9" x 1.75" / 210mm x 125mm x 44mm |
| Weight | 0.88lb / 400g |
More Guitar Wireless
Compare Guitar Wireless Systems
| Concert 88x Guitar - | Concert 99 Guitar - | AirLine 88x Guitar - | |
|---|---|---|---|
| Type | UHF | UHF | UHF |
| Frequencies | 100 | 80 | 100 |
| Compatible Systems per band | 8 | 8 | 8 |
| Transmitter | CB88 Beltpack | CB99 Beltpack | AG8 Plugin |
| Transmitter Battery | 2xAA / 8 hours | 2xAA / 8 hours | 1xAAA / 12 Hours |
| Receiver Type | Half-rack | Half-rack | Half-rack |
| Rack-mountable | Yes - Rack kit included | Yes - Rack kit included | Yes - Rack kit included |
| Receiver Output Connections | XLR, 1/4" | XLR, 1/4" | XLR, 1/4" |
| Antenna Distribution Capable | No | Yes | No |
