Highlights
Take The Worry Out Of Wireless
The dual-channel, frequency-agile Concert 288 Handheld allows up to 12 systems (24 performers) to operate simultaneously (depending on your region). The Concert 288 Handheld gives both performers an impressive 300' of wireless range between the transmitters and receiver, making the system ideal for large stages and crowd participation. To ensure interference-free performance, the Concert 288 Handheld features a true diversity design. In the event of a loss, the receiver automatically mutes to eliminate background noise until the signal is restored.
-
Perform in Pairs

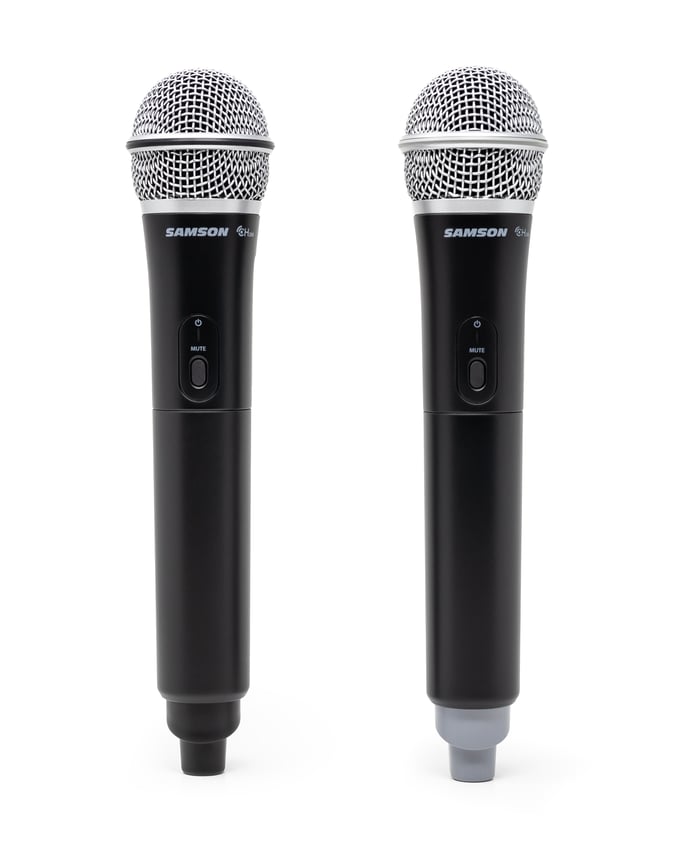

The Concert 288 Handheld includes two CH288 handheld transmitters with Q6 dynamic microphone capsules. Powered by two AA batteries for up to eight hours each, the transmitters are meticulously engineered to provide the ultimate in sonic performance. With the Concert 288 handheld wireless system, advanced technology and total versatility combine to deliver high-quality wireless performance wherever singers, presenters, educators, and others need it.
Dual-Channel Receiver

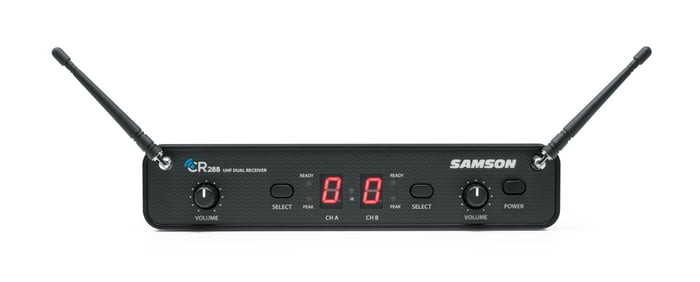

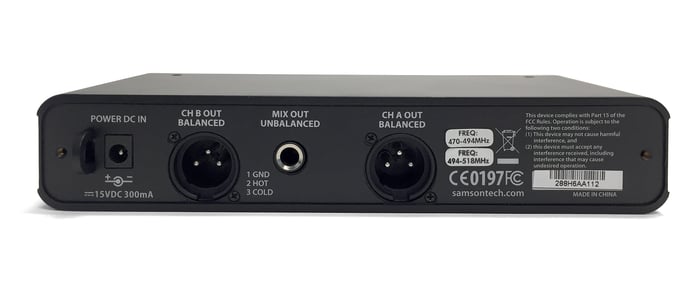

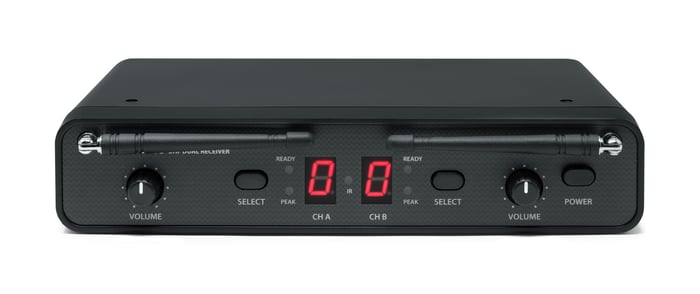

With a user-friendly front panel, the CR288 wireless receiver makes system setup quick and easy. To help you find your optimal channel, the CR288 has two select buttons that automatically synchronize the receiver and transmitter channels via an infrared signal. The front panel also features a dual 7-segment LED to indicate operating channels, two volume controls, two tuned antennas, and Ready and Peak indicators for optimal functionality and monitoring. The rear of the receiver features two separate balanced XLR outputs for routing signals to two separate mixer channels, as well as a 1/4" unbalanced mix output that combines both signals into a single channel for direct connection to a PA speaker.
Features / Specs

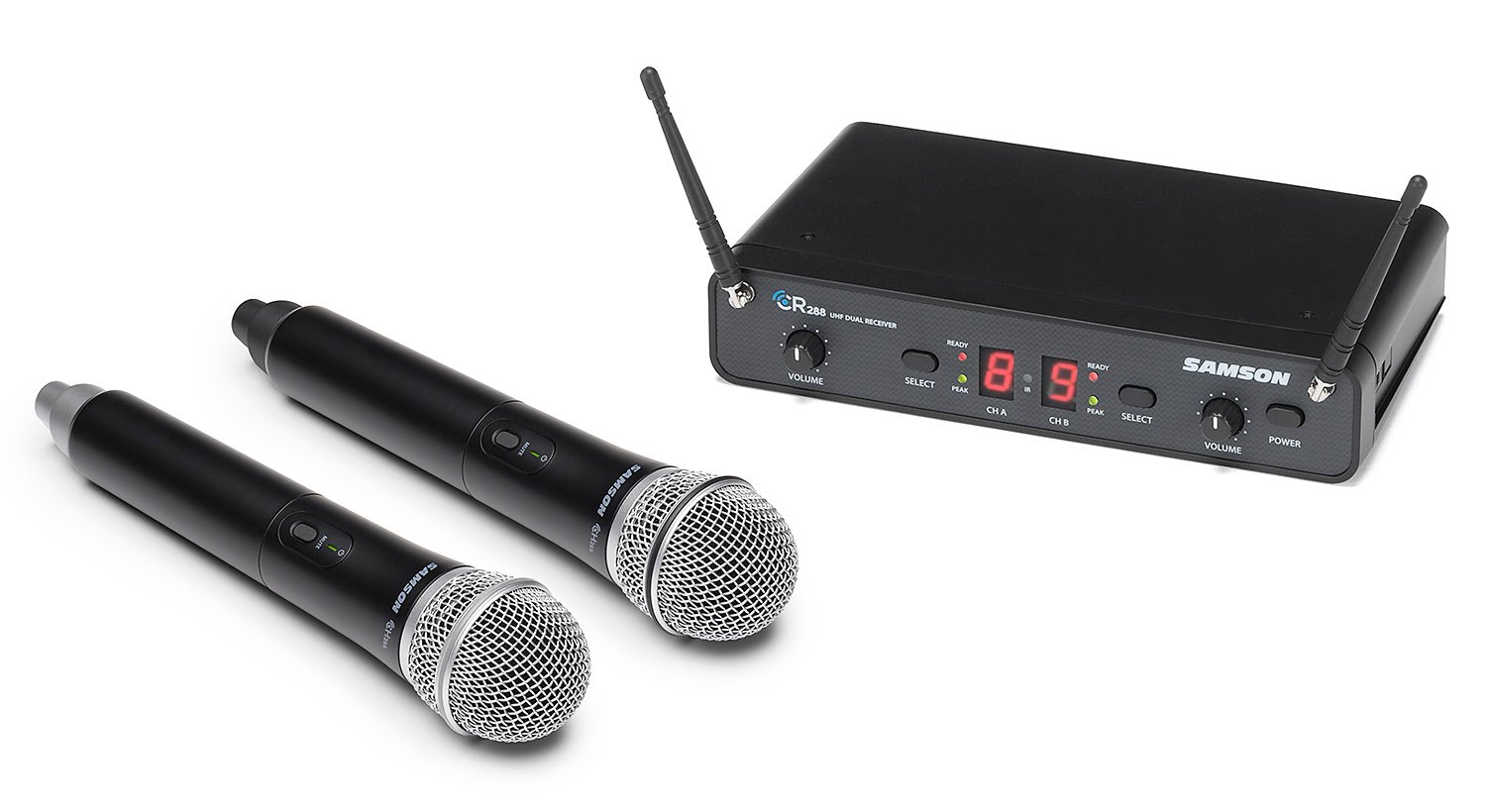

Concert 288 Handheld System
- Dual-channel, high-performance UHF wireless system
- 1/4” audio cable, AC adapter and rackmount kit included
Two CH288 Handheld Transmitters
- Two Q6 Dynamic Microphone capsules
- Each offers up to eight hours of battery life using two AA batteries
- 300' operating range
CR288 Wireless Receiver
- Multiple frequency options for interference-free performance in any environment
- Up to 12 systems can be operated simultaneously (region dependent)
- Separate Volume controls for each wireless signal
- Dual balanced XLR outputs for routing signals to two separate mixer channels
- 1/4” unbalanced mix output to combine signals to one output channel
Specifications
| Working Range | 300' (100m) line of sight |
|---|---|
| Audio Frequency Response | 50 Hz - 15 kHz |
| T.H.D. (Overall) | <1% (@AF 1 kHz, RF 46 dBu) |
| Dynamic Range | >100 dB A-weighted |
| Signal to Noise | >85 dB |
| Tone Key Frequency | 32.768 kHz |
| Microphone Element | Q6 Dynamic |
|---|---|
| Input Gain Range | 28 dB |
| RF Power | 10 mW EIRP |
| Power Requirements | Two AA (LR6) alkaline batteries |
| Battery Life | 8 hours |
| Dimensions (HxØ) | 10.23" x ø2.1" / 260mm x ø54mm |
| Weight | 0.48lb / 218g |
| Audio Output Level - Mix Unbalanced | +14 dBu |
|---|---|
| Audio Output Level - Balanced | +14 dBu |
| Audio Output Impedance - Unbalanced | 1k Ohms |
| Audio Output Impedance - Balanced | 470 Ohms |
| Sensitivity | -100 dBm / 20 dB sinad |
| Image Rejection | >50 dB |
| Operating Voltage | 15 VDC 300mA |
| Dimensions (LxWxH) | 8.25" x 4.9" x 1.75" / 210mm x 125mm x 44mm |
| Weight | 0.99lb / 450g |
More from Concert 288 Series
Multi-Channel Wireless Comp Chart
| Stage 200 - | Stage 212 - | XPD2m Handheld - | Concert 288 Handheld - | Concert 288m Handheld - | Stage 412 - | |
|---|---|---|---|---|---|---|
| Type | VHF | VHF | 2.4GHz Digital | UHF | UHF | VHF |
| Dual / Quad | Dual | Dual | Dual | Dual | Dual | Quad |
| Frequencies per Channel | 1 | 12 | n/a | 16 | 100 | 6 |
| Compatible Systems | 4 | 3 | 1 | 10 per band | 4 per band | 3 |
| Available Configurations | Dual Handheld | Dual Handheld | Dual Handheld, Presentation | Dual Handheld, Presentation, All-In-One | Dual Handheld, Presentation, All-In-One | Quad Handheld |
| Transmitter Battery | 2xAA / 12 hours | 2xAA / 10 hours | 2xAA / 20 hours | 2xAA / 8 hours | 2xAA / 8 hours | 2xAA / 10 hours |
| Receiver Type | Tabletop | Tabletop | Tabletop | Half-rack | Tabletop | Tabletop |
| Rack-mountable | No | No | No | Yes - Rack kit included | No | No |
| Receiver Output Connections | Dual 1/4", Mixed XLR | Dual 1/4", Mixed XLR | Dual XLR, Mixed 1/4", Mixed 1/8" | Dual XLR, Mixed 1/4" | Dual XLR, Mixed 1/4", Mixed 1/8" | 4x 1/4", 3x Mixed XLR |
