CR288 Dual Channel Receiver

Dual Channel Receiver for Concert 288 Wireless

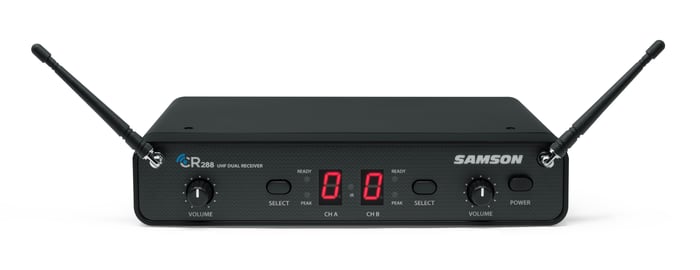

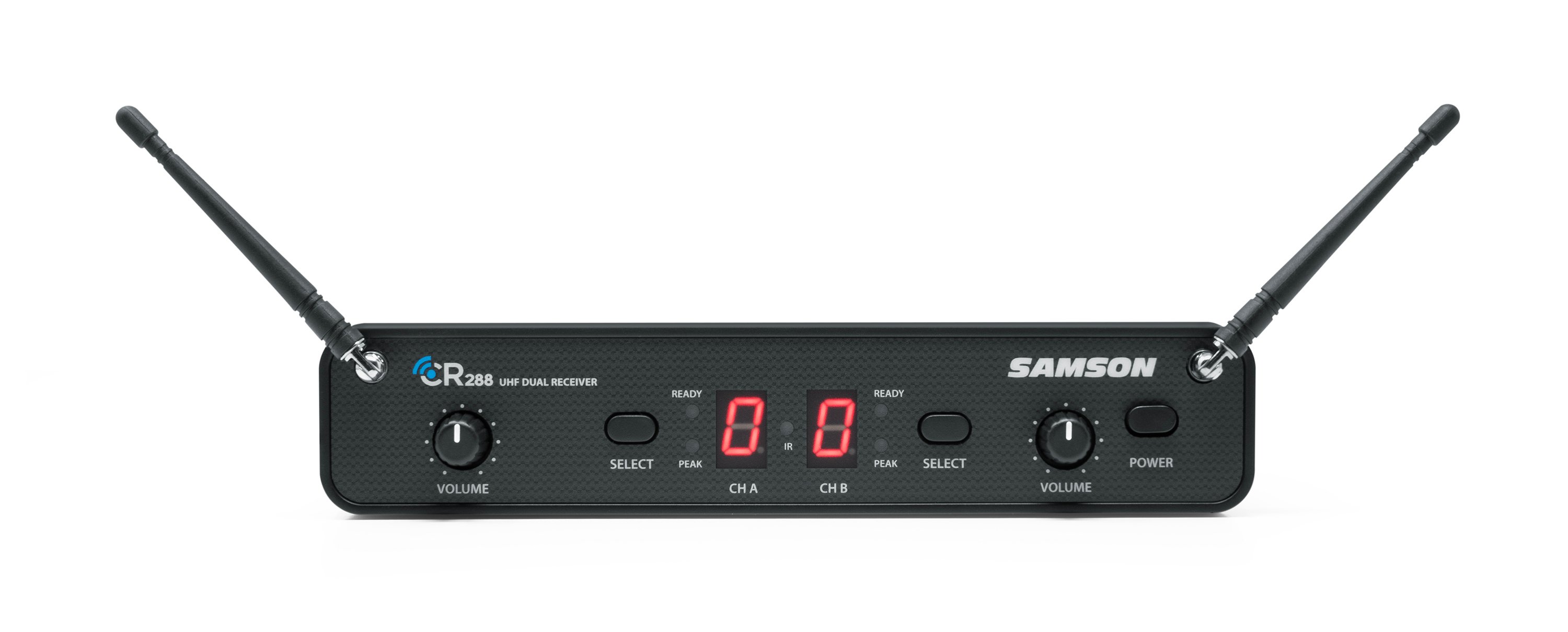

With a user-friendly front panel, the CR288 wireless receiver makes system setup quick and easy. To help you find your optimal channel, the CR288 has two select buttons that automatically sync the receiver and transmitter channels via an infrared signal. The front panel also features a dual 7-segment LED to indicate operating channels, two volume controls, two tuned antennas, and Ready and Peak indicators for optimal functionality and monitoring. The rear of the receiver features two separate balanced XLR outputs for routing signals to two separate mixer channels, as well as a 1/4" unbalanced mix output that combines both signals into a single channel for direct connection to a PA speaker.

As low as 0% APR available for orders $199 and up. Learn more
Only Left
Preorder Today
Coming Soon
Call to order
We're sorry, but this item is unavailable.
Free -Day Shipping
Get it by when you order within
Get it if you order in Price:

Features / Specs

CR288 Wireless Receiver

  • Multiple frequency options for interference-free performance in any environment
  • Up to 12 systems can be operated simultaneously (region dependent)
  • Separate Volume controls for each wireless signal
  • Dual balanced XLR outputs for routing signals to two separate mixer channels
  • 1/4” unbalanced mix output to combine signals to one output channel

Specifications

Audio Output Level - Mix Unbalanced +14 dBu
Audio Output Level - Balanced +14 dBu
Audio Output Impedance - Unbalanced 1k Ohms
Audio Output Impedance - Balanced 470 Ohms
Sensitivity -100 dBm / 20 dB sinad
Image Rejection >50 dB
Operating Voltage 15 VDC 300mA
Dimensions (LxWxH) 8.25" x 4.9" x 1.75" / 210mm x 125mm x 44mm
Weight 0.99lb / 450g
