Highlights
Easy Addition

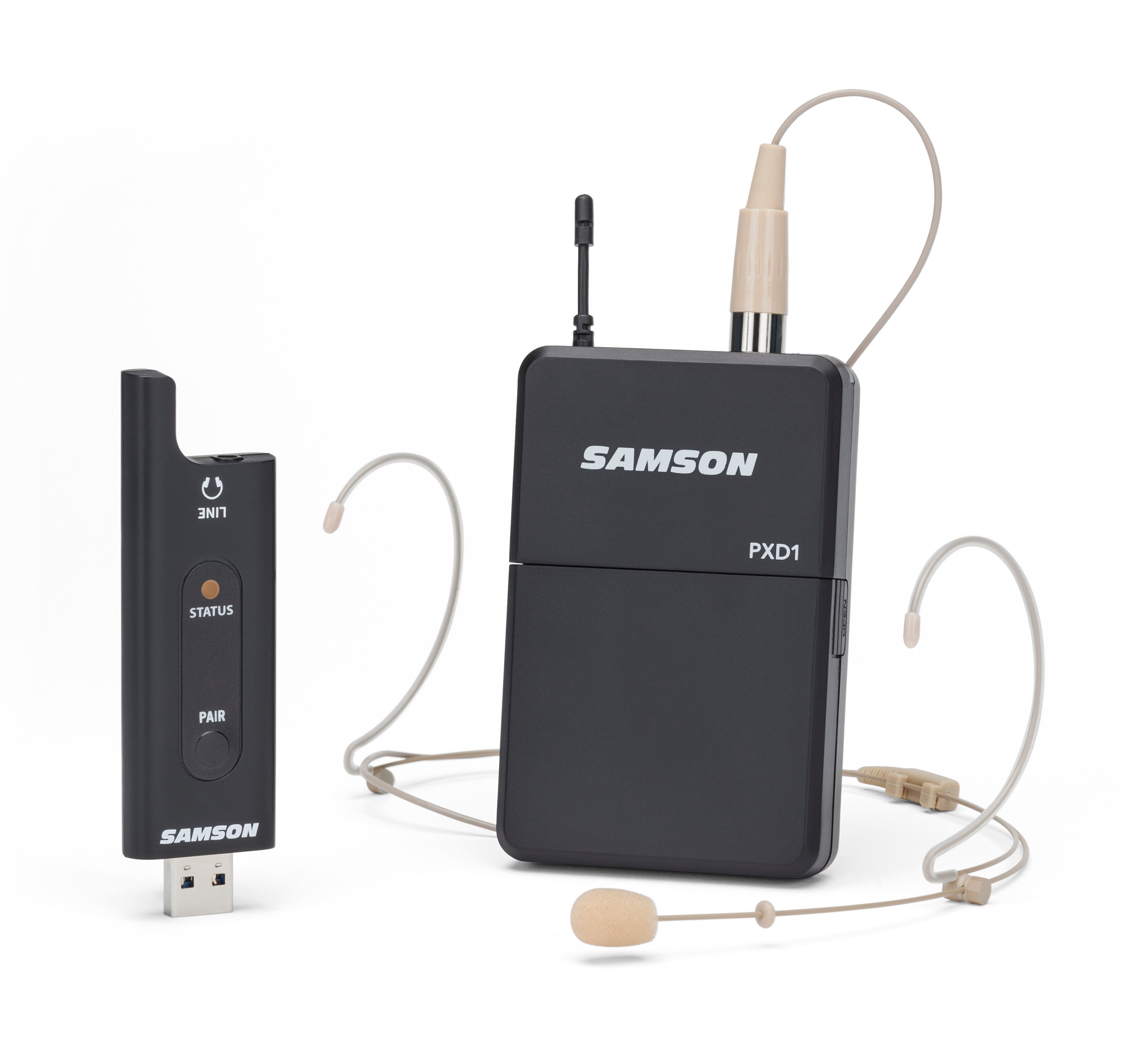

The XPD2 Headset system combines micro-receiver technology, intuitive design, and incredible audio quality to make integrating wireless microphones into your audio production extremely easy and affordable.
-
High-Quality Digital Sound
XPD2 Wireless delivers its high-quality audio through digital transmission. This type of wireless technology allows the PXD1 handheld transmitter to send an uncompressed signal to the receiver. The result is a higher signal-to-noise ratio compared to a traditional wireless system, and performance that sounds as good as a wired microphone.
The RXD2 USB stick receiver connects directly to Mac or PC computers, or to any Samson Expedition Series Portable PA system that has a USB wireless port. An added feature from the previous generation system, the 1/8" (3.5mm) output allows for headphone monitoring, or the XPD2 Headset can be used with any device that has an analog line input, including smartphones and other mobile devices.
To connect to an iOS device, Apple's Lightning to USB Camera Adapter is required. To connect to an Android device, a host OTG adapter is required.
Even More Ways to Connect
A streamlined setup is essential to empower any active performer or presenter. The RXD2 USB key receiver easily connects to any Samson Expedition Series portable PA system or Samson mixer with a USB wireless port. The RXD2 has a 1/8" (3.5mm) analog output that can be used with headphones or to connect to other devices with an analog input. A USB-A to USB-C adapter is also included for use with other compatible devices.
USB Digital Wireless
The XPD2 is a wireless microphone solution for content creation, digital communication and live sound reinforcement. Offering easy setup and professional full-range audio, the XPD2 features a uniquely designed USB stick receiver that connects to computers, smartphones and XPD Wireless-enabled Samson portable PA systems.
Features / Specs
- 2.4GHz USB digital wireless system
- Ideal for broadcasting, live streaming, presentations and more
- Plug-and-play operation with Mac and Windows
- Works with iPad via Apple's Lightning to USB Camera Adapter
- Works with Android devices via a host OTG adapter
- RXD2 USB stick receiver
- Receiver features a 1/8" (3.5mm) headphone/monitor output
- PXD1 beltpack transmitter with Samson DE5 Micro Headset Microphone
- Transmitter offers 20 hours of battery life using two AA batteries (not included)
- 100' operating range (line-of-sight, environment dependent)
- 1-touch pairing, adjustable Volume controls on transmitter
- Compatible with Samson Expedition Series Portable PAs that feature USB Wireless ports
- Includes USB extension cable
Specifications
| Simultaneous Systems | 2 |
|---|---|
| Working Range | 100’ line of sight |
| Working Frequency | 2.404~2.476 GHz |
| Modulation type | GFSK |
| Audio Frequency Response | 20 Hz – 17 kHz (-1 dB) |
| T.H.D | <0.1% (at 1 kHz, -10 dBu) |
| Signal to Noise | >85 dB |
| Microphone | Samson DE5 micro headset mic |
|---|---|
| Input Connector | Mini-XLR (P3) |
| RF Power | <10 mW EIRP |
| Power Requirements | Two AA (LR6) alkaline batteries |
| Battery Life | 20 hours |
| Audio Sample Rate | 32 kHz |
| Dimensions | .75” x 2.44” x 0.75” / 96mm x 62mm x 18.5mm |
| Weight | 0.2lb / 93g |
| Max. Analog Audio Output Level | 9 dBu |
|---|---|
| Headphone Output | 22 mW into 16 Ω or 32 Ω |
| Operating Voltage | 5V DC |
| Dimensions | 3.5” x 0.9” x .31” / 89mm x 23mm x 8mm |
| Weight | 0.35oz / 10g |
More XPD Digital Wireless
Compare Fitness Wireless Systems
| XPD2 Headset - | XPDm Headset - | Concert 88x Headset - | |
|---|---|---|---|
| Type | 2.4GHz Digital | 2.4GHz Digital | UHF |
| Frequencies | n/a | n/a | 100 |
| Compatible Systems per band | 2 | 2 | 8 |
| Mic Capsule | DE5 Headset | DE5 Headset | HS5 Headset |
| Transmitter Battery | 2xAA / 20 hours | 2xAA / 20 hours | 2xAA / 8 hours |
| Receiver Type | USB Stick | Tabletop | Half-rack |
| Rack-mountable | No | No | Yes - Rack kit included |
| Receiver Output Connections | USB, 1/8" | XLR, 1/4", 1/8" | XLR, 1/4" |
| Antenna Distribution Capable | No | No | No |
