Highlights
Digital Wireless Technology
The XPD2m Digital Wireless System delivers high-quality audio using digital transmission at 2.4 GHz, with results that sound as good as a traditional wired microphone. Set up is extremely easy and you can start performing with one-touch pairing that syncs the transmitter and receiver channel. Simply connect the RXD2M to your mixer or sound system, set the levels, and enjoy wireless audio that sounds as good as a wired microphone.
-

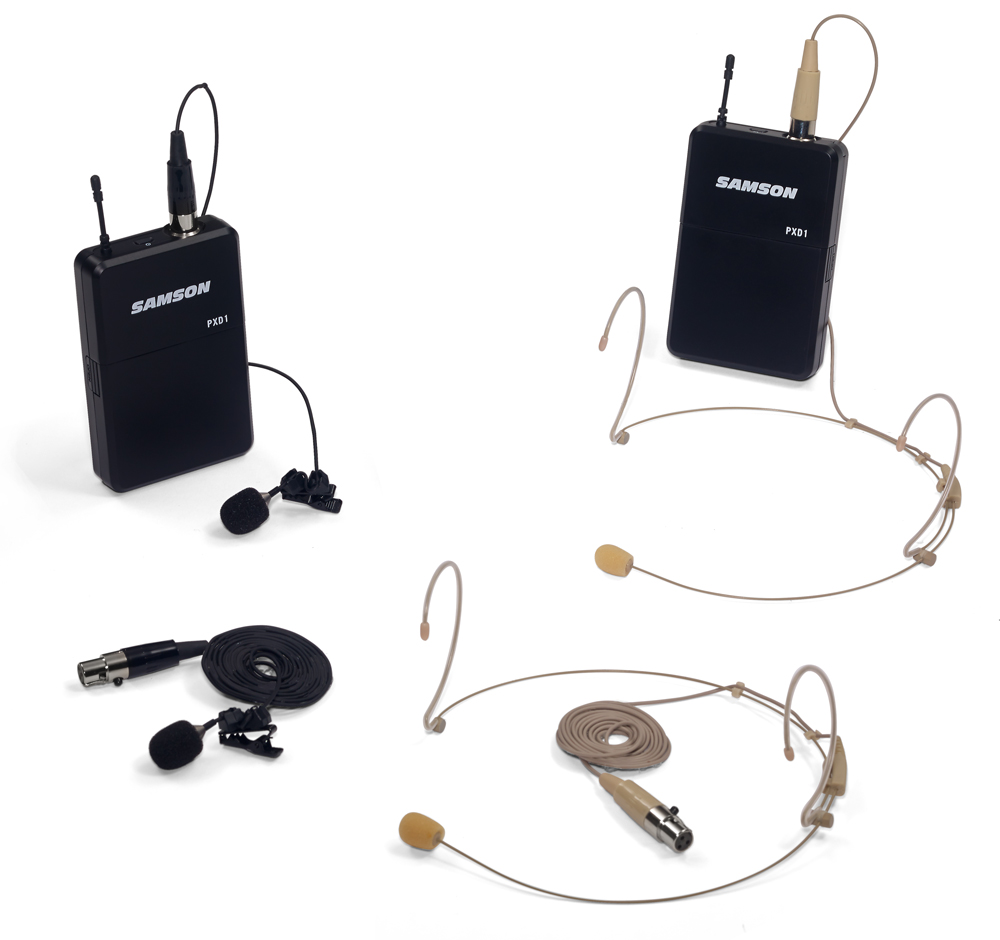

Lavalier and Headset

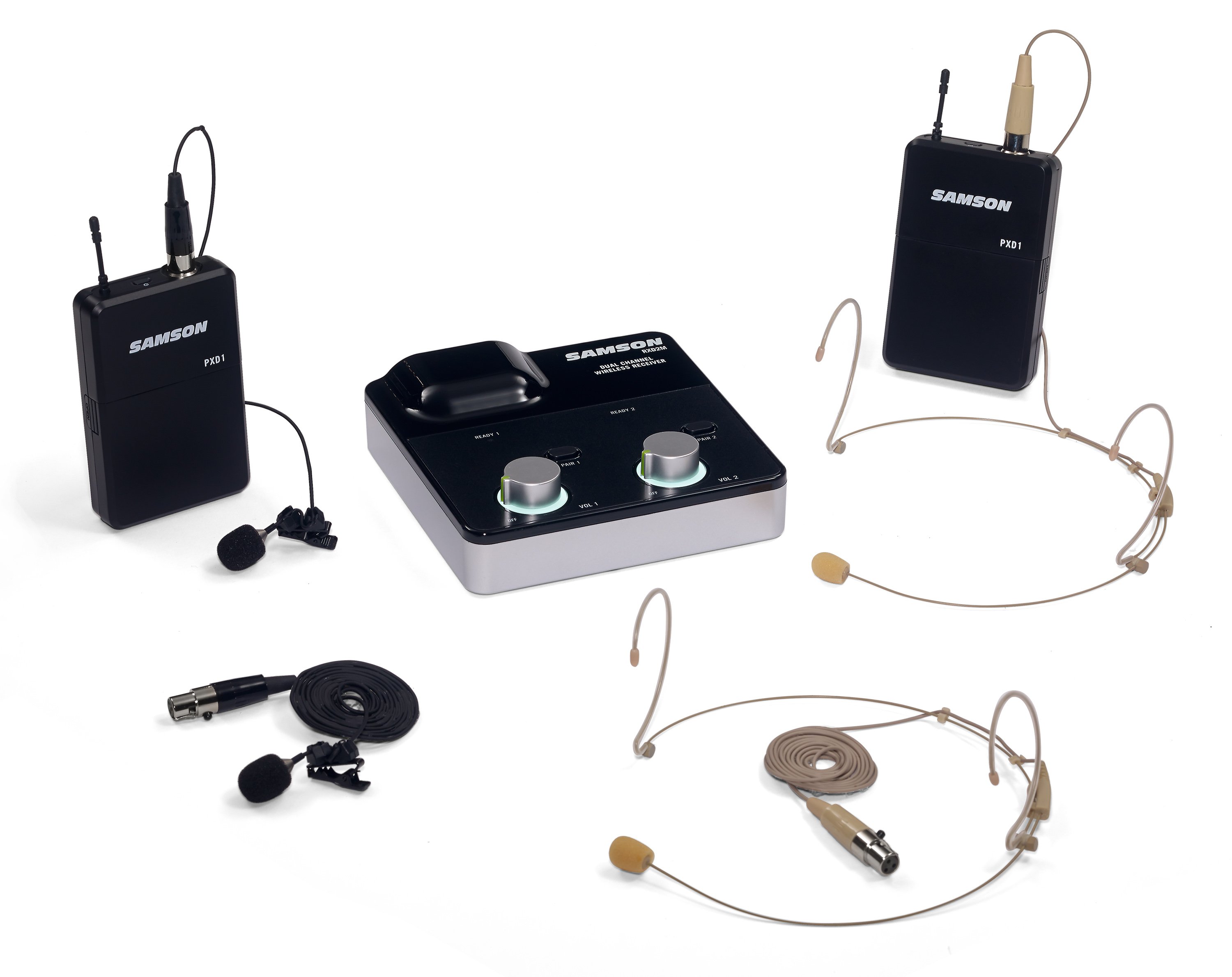

The PXD1 beltpack transmitters allow for a completely cordless performance and capture vocals with absolute clarity. Offering 20 hours of continuous use from two AA batteries and 100’ of wireless operation, the PXD1 delivers reliable performance in any application. The XPD2m Presentation system comes with two LM7 unidirectional lavalier microphones and two DE5 low-profile headset microphones. This gives you the choice to use the microphone that best suits your situation. Each microphone features locking connectors for a secure and stable connection and is designed to capture every detail of your performance with stunning, professional-quality audio.
Easy Integration

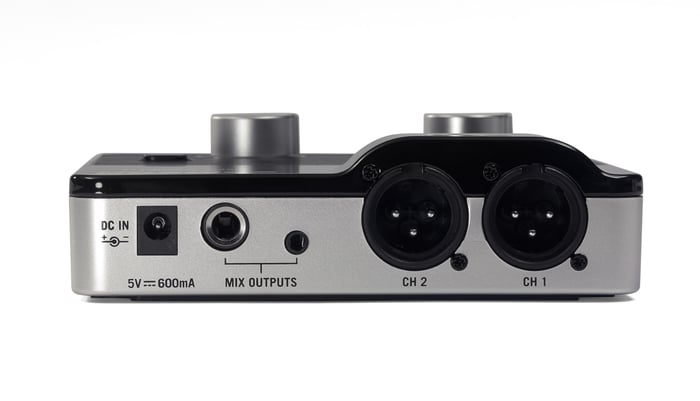

The XPD2m two-channel desktop receiver easily connects to any audio system. Two balanced XLR outputs allow each wireless channel to be routed independently, or send a mix of both channels via the 1/4" and 1/8" mix outputs.
Features / Specs
XPD2m Handheld System
- High performance dual channel digital wireless system
- Operates on 2.4GHz License-free frequency
- 100’ (30m) line-of-sight operating range
PXD1 Beltpack Transmitters
- Mini XLR connector
- Offers up to 20 hours of battery life using two AA batteries

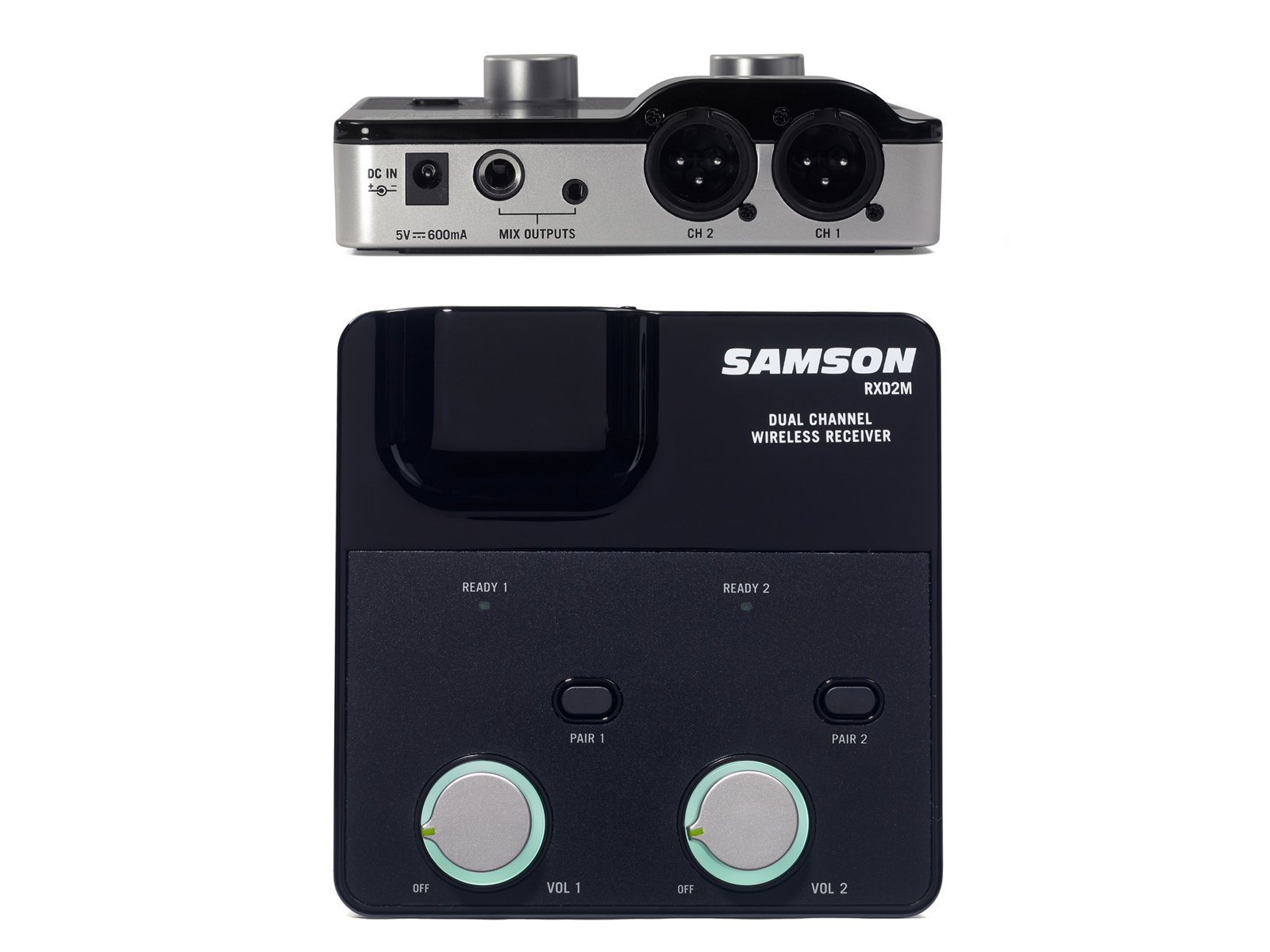

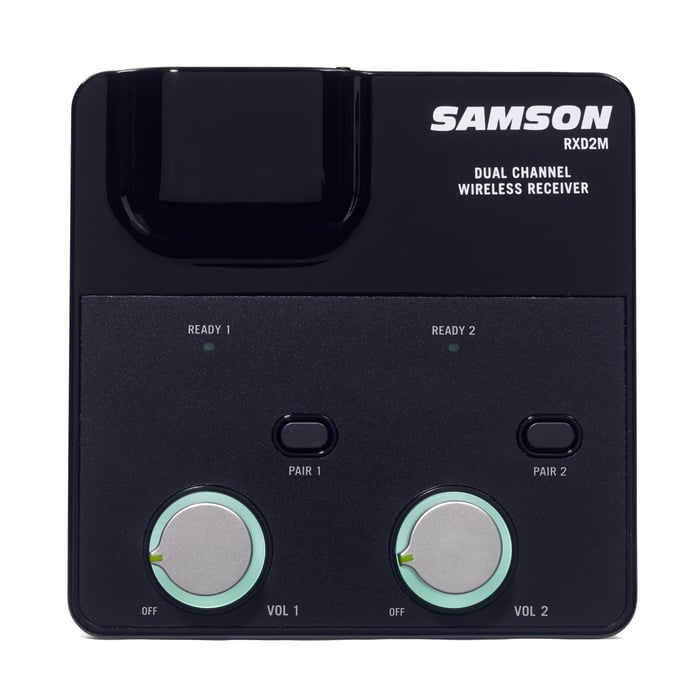

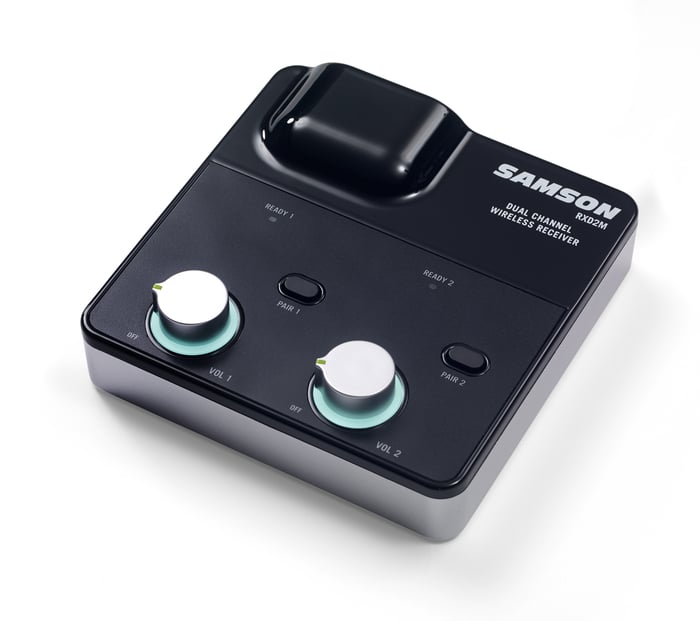

RXD2M Tabletop Receiver
- Dual balanced XLR outputs for routing signals to two separate mixer channels
- 1/4" and 1/8" unbalanced mix outputs combine signals to one output channel
- Simple one-touch pairing button
- Separate Volume controls for each channel
Specifications
| Operating Range | 100’ (30m) line of sight |
|---|---|
| Audio Frequency Response | 24Hz - 18kHz (+0/-3dB) |
| T.H.D.+N (Overall) | <0.1%, +4dBu, 22kHz BW |
| Dynamic Range XLR | 81.9 dB re - 1.1 dBu |
| Dynamic Range Unbalanced | 81.3 dB re +5.3 dBu |
| Modulation Type | GFSK |
| Oscillation Type | PLL |
| Signal to Noise | 90dB,re +4dBu, 22kHz BW |
| Operating Frequency | 2.404~2.476+GHz |
| Frequency Stability | +/- 0.005% |
| Max channels per system | 2 |
| Max simultaneous systems | 1 |
| Input Connector | Mini-XLR (P3) |
|---|---|
| RF Power | <10 mW EIRP |
| Power Requirements | Two AA (LR6) alkaline batteries |
| Battery Life | 20 hours |
| Audio Sample Rate | 32 kHz |
| Dimensions | 3.75” x 2.44” x 0.75” / 96mm x 62mm x 18.5mm |
| Weight | 0.2lb / 93g |
| Audio Output Level 1/8” (3.5mm) & 1/4” (6.3mm) jack (unbalanced) | +4 dBu, 1 kHz, <0.6% THD+N |
|---|---|
| Audio Output Level XLR jack (balanced) | +4 dBu, 1 kHz, <0.6% THD+N |
| Audio Output Impedance 1/8” (3.5mm) & 1/4” (6.3mm) jack (unbalanced) | 110 ohms @ 1kHz |
| Audio Output Impedance XLR output jack (balanced) | 2.4Kohms @ 1kHz |
| RF Sensitivity | -78dBm/20dB SINAD |
| Image Rejection | >50dB |
| Operating Voltage | 5VDC 500mA |
| Dimensions | 4.3” x 3.7” x 1.5” / 110mm x 95mm x 39mm |
| Weight | 0.33lb / 152g |
More XPD Digital Wireless
Compare Multi-Channel Presentation Wireless Systems
| XPD2m Presentation - | Concert 288 Presentation System - | Concert 288m Presentation - | |
|---|---|---|---|
| Type | 2.4GHz Digital | UHF | UHF |
| Microphones | 2x LM7 Lavaliers, 2x DE5 Low-Profile Headsets | 2x LM5 Lavaliers, 2x HS5 Headsets | 2x LM7 Lavaliers, 2x HS5 Headsets |
| Frequencies per Channel | n/a | 16 | 100 |
| Compatible Systems | 1 | 8 per band | 4 per band |
| Transmitter Battery | 2xAA / 20 hours | 2xAA / 8 hours | 2xAA / 8 hours |
| Receiver Type | Tabletop | Half-rack | Tabletop |
| Rack-mountable | No | Yes - Rack kit included | No |
| Receiver Output Connections | Dual XLR, Mixed 1/4", Mixed 1/8" | Dual XLR, Mixed 1/4" | Dual XLR, Mixed 1/4", Mixed 1/8" |
