Highlights
Digital Wireless Technology

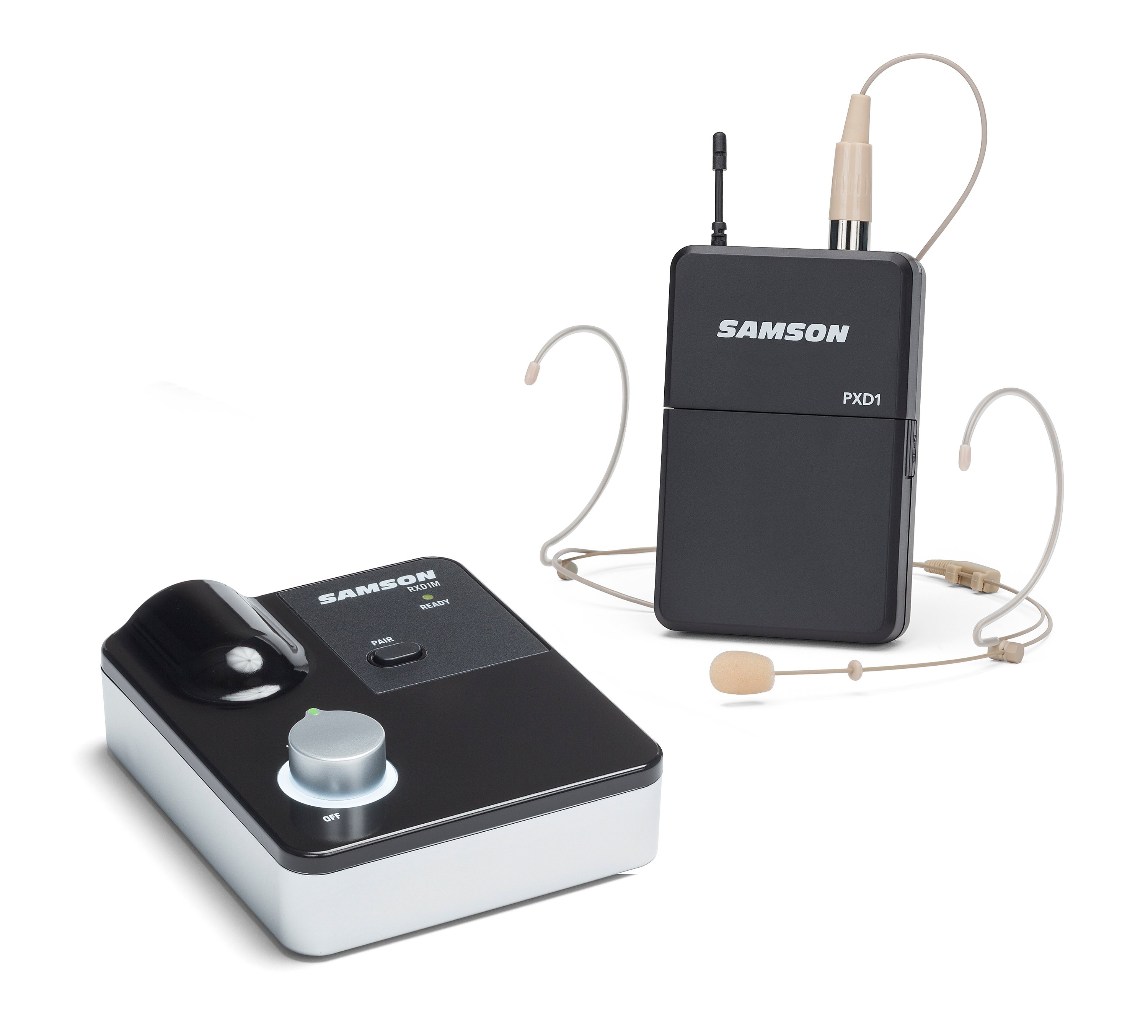

The XPDm Headset system delivers high-quality audio using 2.4 GHz digital transmission. This wireless technology allows the microphone transmitter to send an uncompressed signal to the receiver, providing a higher signal-to-noise ratio than traditional wireless systems.
-
Ready Set Headset

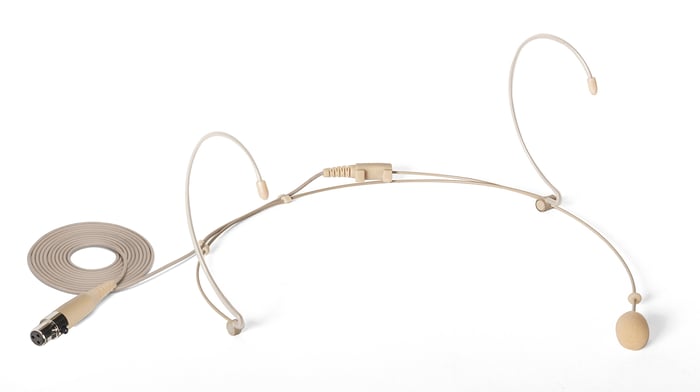

The PXD1 beltpack transmitter provides 100' of wireless range and up to 20 hours of use on two AA batteries. The DE5 Omnidirectional Headset Microphone is a unique binaural headset designed to keep the microphone in place while the user is moving. The omnidirectional pickup pattern captures vocals for clear and articulate sound regardless of the capsule's position relative to the sound source. A clothing cable clip is included for discreet and unobtrusive cable placement, and a windscreen is included to reduce wind noise and plosives.
Simple Addition
Easily integrate the XPDm Headset System into your audio setup with a lightweight and portable RXD1M receiver that has XLR, 1/4,” and 1/8” outputs. Simply pair the handheld PXD1 transmitter to the receiver via the pair button for straightforward synching.
Features / Specs
XPDm Headset Digital Wireless System
- High performance digital wireless system
- Operates on 2.4GHz License-free frequency
- 100’ (30m) line-of-sight operating range

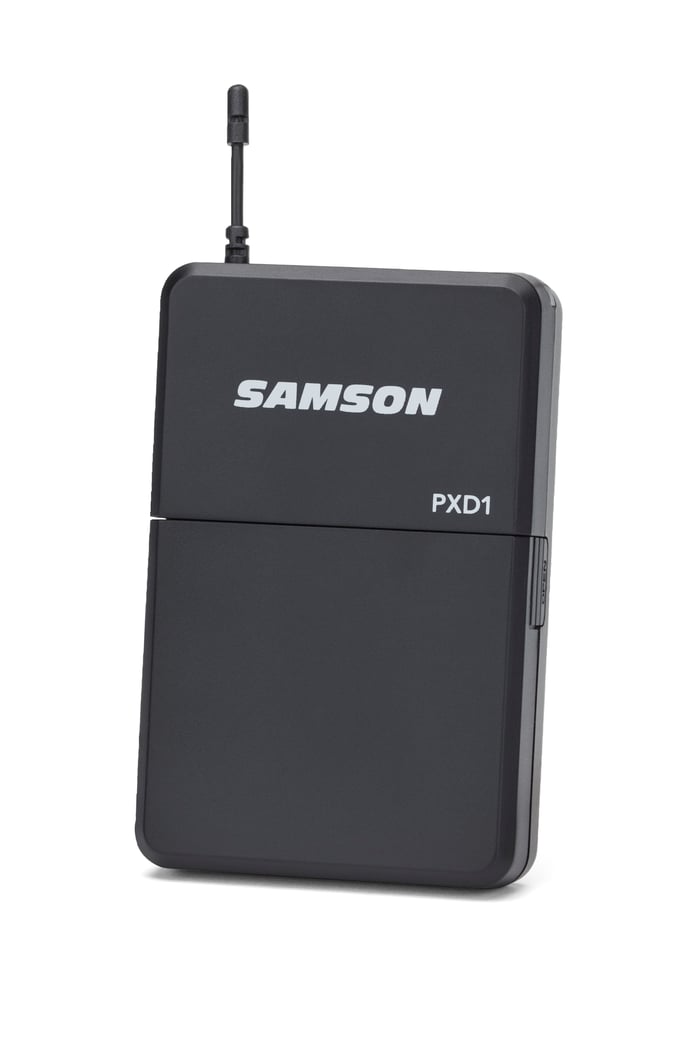

PXD1 Beltpack Transmitter
- Includes DE5 Omnidirectional Headset Microphone
- Offers up to 20 hours of battery life using two AA batteries

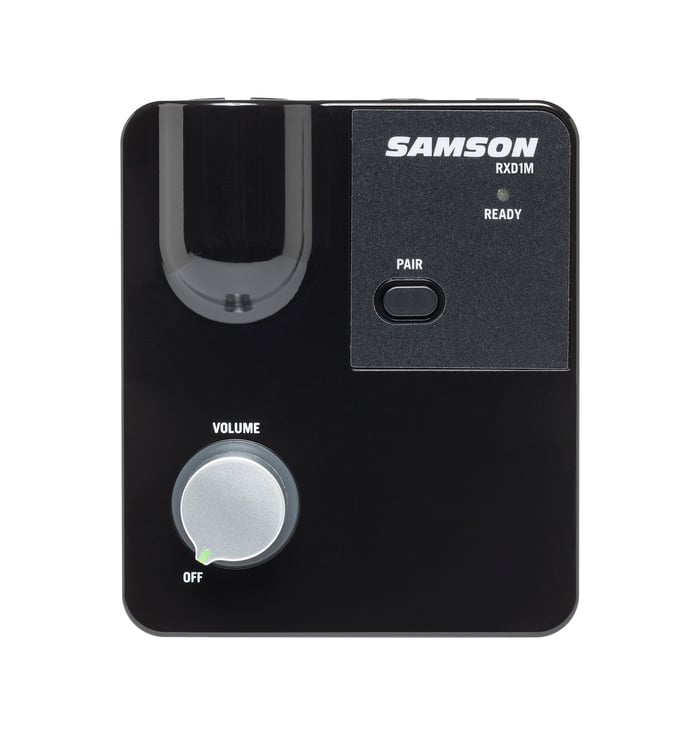

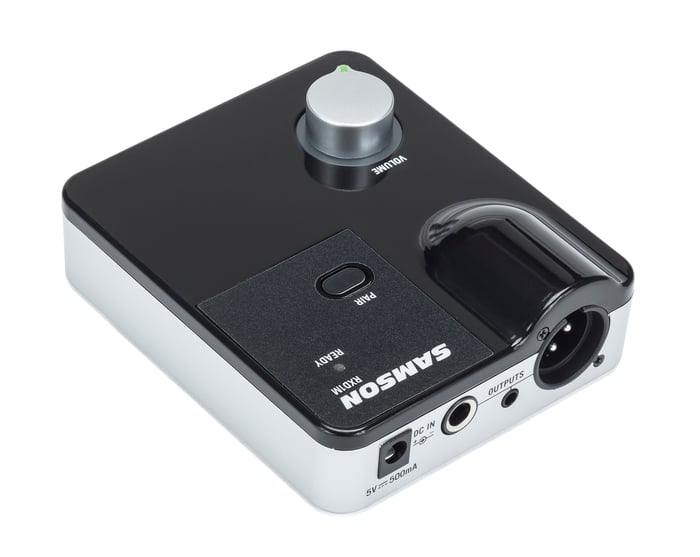

RXD1M Tabletop Receiver

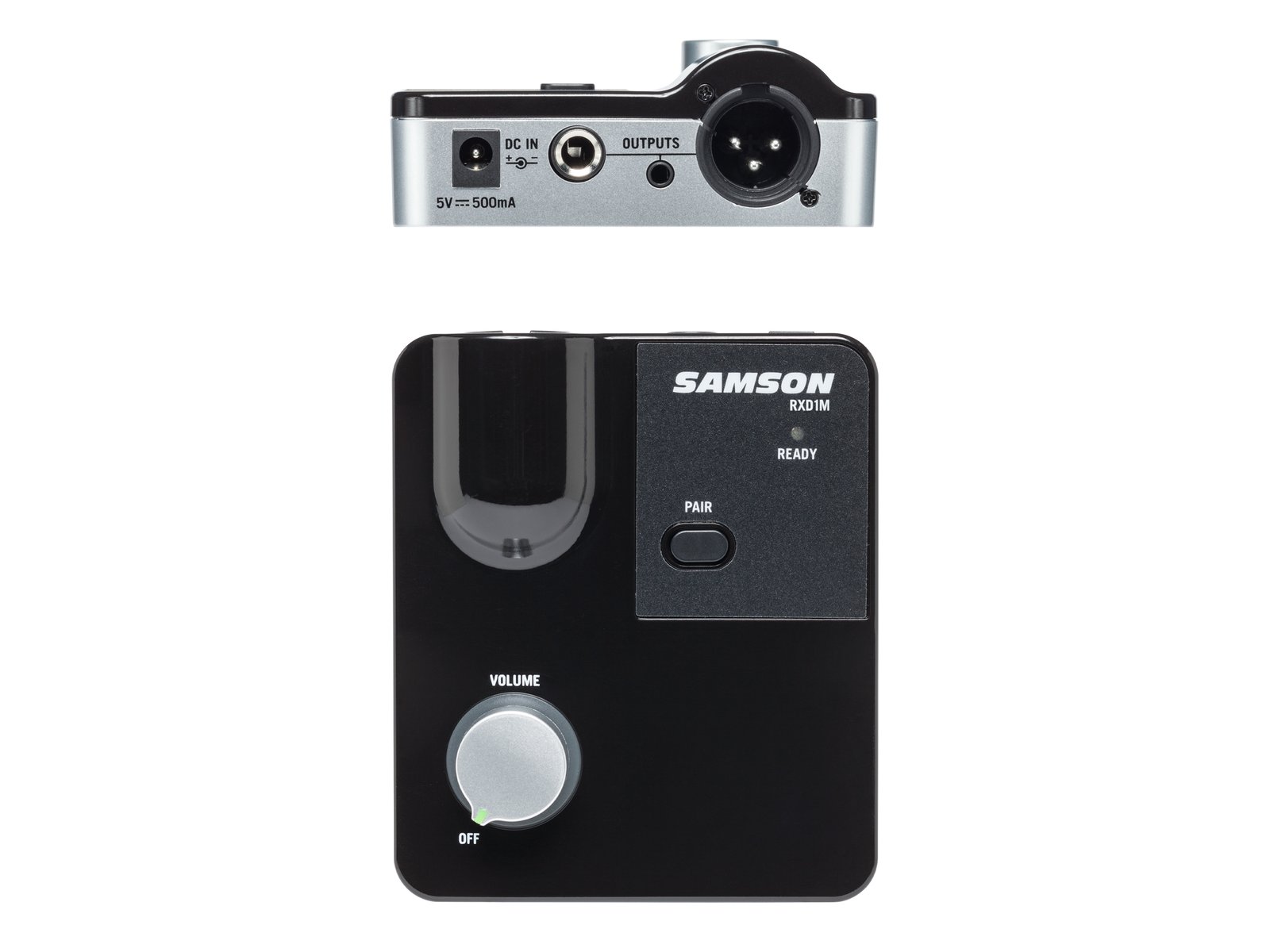

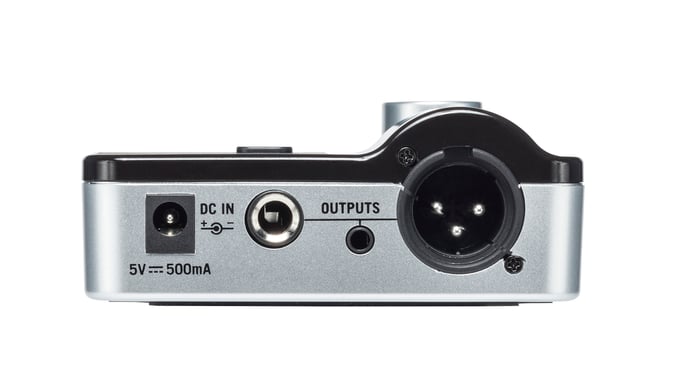

- Balanced XLR, unbalanced 1/4,” and unbalanced 1/8” outputs
- One-touch pairing button
- Rotary volume knob with integrated power switch
Specifications
| Simultaneous Systems | 2 |
|---|---|
| Working Range | 100’ line of sight |
| Working Frequency | 2.404~2.476 GHz |
| Modulation type | GFSK |
| Audio Frequency Response | 20 Hz – 17 kHz (-1 dB) |
| T.H.D | <0.1% (at 1 kHz, -10 dBu) |
| Signal to Noise | >85 dB |
| Microphone | Samson DE5 micro headset mic |
|---|---|
| Input Connector | Mini-XLR (P3) |
| RF Power | <10 mW EIRP |
| Power Requirements | Two AA (LR6) alkaline batteries |
| Battery Life | 20 hours |
| Audio Sample Rate | 32 kHz |
| Dimensions | 0.75” x 2.44” x 0.75” / 96mm x 62mm x 18.5mm |
| Weight | 0.2lb / 93g |
| Audio Output Level 1/8” (3.5mm) & 1/4” (6.3mm) jack (unbalanced) | +4 dBu, 1 kHz, <0.6% THD+N |
|---|---|
| Audio Output Level XLR jack (balanced) | +4 dBu, 1 kHz, <0.6% THD+N |
| Audio Output Impedance 1/8” (3.5mm) & 1/4” (6.3mm) jack (unbalanced) | 110 ohms @ 1kHz |
| Audio Output Impedance XLR output jack (balanced) | 2.4Kohms @ 1kHz |
| RF Sensitivity | -78dBm/20dB SINAD |
| Image Rejection | >50dB |
| Operating Voltage | 5VDC 500mA |
| Dimensions | 4.3” x 3.7” x 1.5” / 110mm x 95mm x 39mm |
| Weight | 0.33lb / 152g |
More XPD Digital Wireless
Compare Fitness Wireless Systems
| XPD2 Headset - | XPDm Headset - | Concert 88x Headset - | |
|---|---|---|---|
| Type | 2.4GHz Digital | 2.4GHz Digital | UHF |
| Frequencies | n/a | n/a | 100 |
| Compatible Systems per band | 2 | 2 | 8 |
| Mic Capsule | DE5 Headset | DE5 Headset | HS5 Headset |
| Transmitter Battery | 2xAA / 20 hours | 2xAA / 20 hours | 2xAA / 8 hours |
| Receiver Type | USB Stick | Tabletop | Half-rack |
| Rack-mountable | No | No | Yes - Rack kit included |
| Receiver Output Connections | USB, 1/8" | XLR, 1/4", 1/8" | XLR, 1/4" |
| Antenna Distribution Capable | No | No | No |
