RSXM10A

10" 800-Watt Coaxial Powered Stage Monitor

The RSXM10A is a compact active loudspeaker designed to provide powerful, exceptional monitoring for front-of-house engineers, live sound professionals, musicians and DJs. The 10" coaxial speaker with 1" horn-loaded tweeter provides wide coverage, while the ultra-efficient 800-watt Class D amplifier provides plenty of headroom for even the loudest stages.

Great for: Fitness, Theater / Production

Your Stage Sidekick

The RSXM10A produces 800 watts of Class D power through its 10" woofer and premium 1" horn-loaded tweeter. A compact, coaxial design gives the monitor amazing portability with impeccable sound. In addition, the RSXM10A features an integral 1 3/8" pole mount and a Monitor/FOH optimization switch for added flexibility.
Multi-Talented Monitor

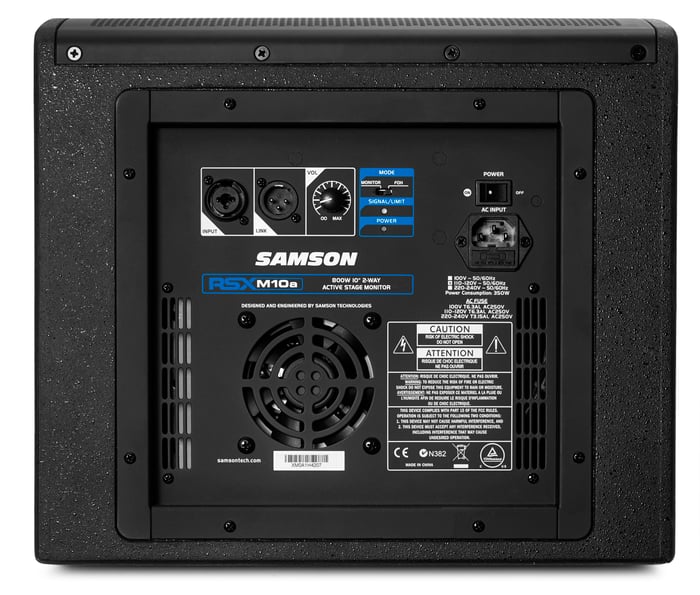

Designed to bring professional performance to a variety of monitoring applications, including keyboards and electronic drums, the RSXM10A is also convenient for DJs who need a dedicated monitor while working in a compact booth. A single XLR-1/4" combo input is provided, along with an XLR link output for system expansion. In addition, the RSXM10A features a powder-coated steel grille and two integrated side carrying handles, making it durable yet highly portable for use on the road.

Lightweight Class D 2-way active stage monitor
800 watts of output power
All-wood cabinet construction
Compact, coaxial design
10" low frequency driver
1" tweeter
XLR-1/4" combo input
XLR Link output
Dedicated Volume knob
FOH/Monitor selector switch to optimize sound

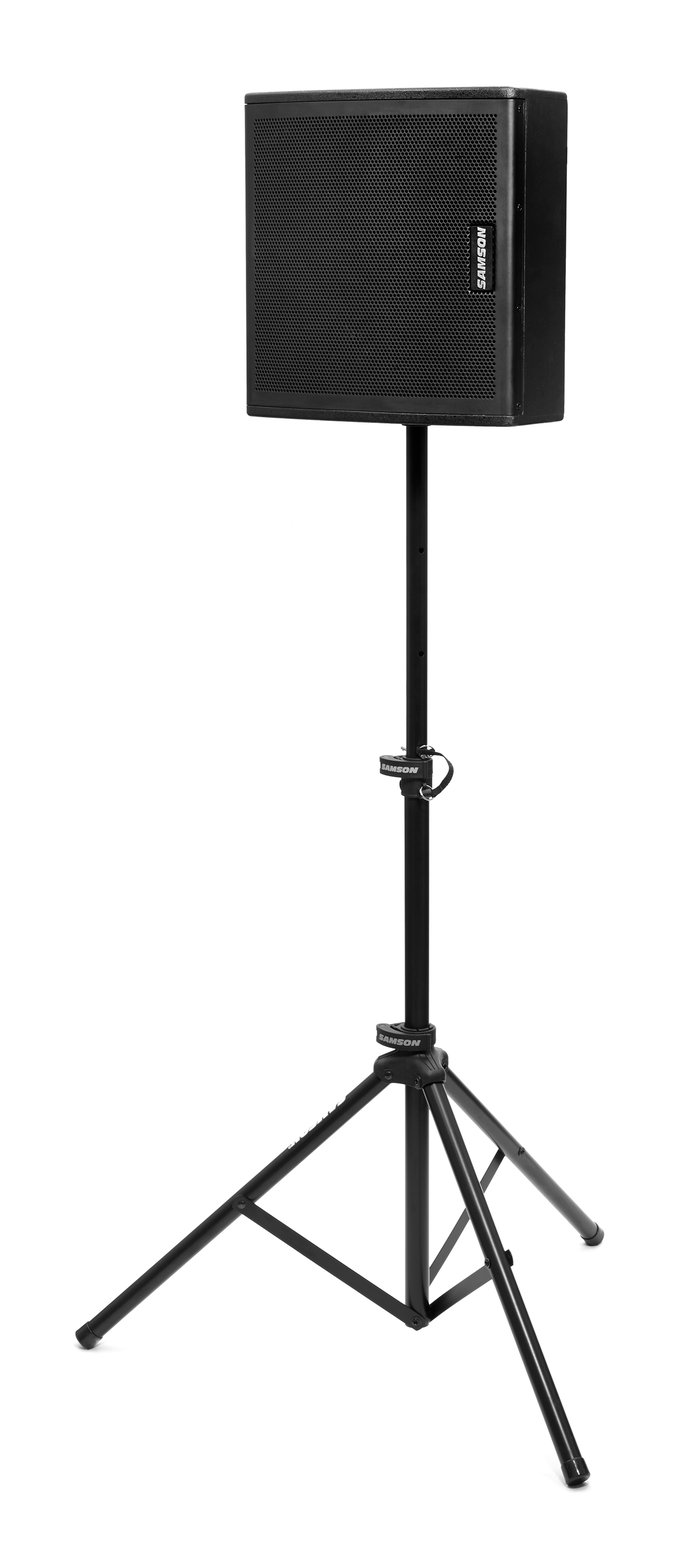

1 3/8" pole mount receptacle
Integrated side carry handles
Perforated steel grill protects all monitor components
Durable black, textured paint finish

Specifications

Low Frequency	350W
Peak Power	700W
High Frequency	50W
Peak Power	100W
Low Frequency	10” (254 mm) woofer with 2” (51 mm) voice-coil
High Frequency	1” (25.4 mm) Driver with 1” (25.4 mm) voice-coil
Frequency Response (-3 dB)	60 Hz to 20 kHz
Maximum SPL (Peak Power)	125 dB SPL @ 1 m
Coverage Angle (Horz. x Vert.)	70° x 70°
Equalization Switch	Monitor, FOH (Front of House)
Crossover Type	12 dB/oct
Crossover Frequency	3.5 kHz
Inputs	Balanced XLR & 1/4” Connectors
Output	Balanced XLR Line Output
Mounting Method	Integral 1 3∕8” Pole Mount Receptacle
Dimensions	14.27” x 13.8” x 12.87” / 362.5mm x 350.6mm x 327mm
Weight	27.66lb / 12.55kg
