RSXM12A

12" 800-Watt Coaxial Powered Stage Monitor

The RSXM12A 2-Way Active Stage Monitor offers touring musicians/DJs, front-of-house engineers, and live sound professionals exceptional monitoring versatility, ultra-efficient Class D power, and the durability of all-wood cabinet construction.

As low as 0% APR available for orders $199 and up. Learn more
Only Left
Preorder Today
Coming Soon
Call to order
We're sorry, but this item is unavailable.
Free -Day Shipping
Get it by when you order within
Get it if you order in Price:
Great for: Fitness, Theater / Production

Highlights

  • Your Stage Sidekick

    The RSXM12A produces 800 watts of Class D power through its 12" woofer and premium 1" horn-loaded tweeter. A compact, coaxial design gives the monitor amazing portability with impeccable sound. In addition, the RSXM12A features an integral 1 3/8" pole mount and a Monitor/FOH optimization switch for added flexibility.

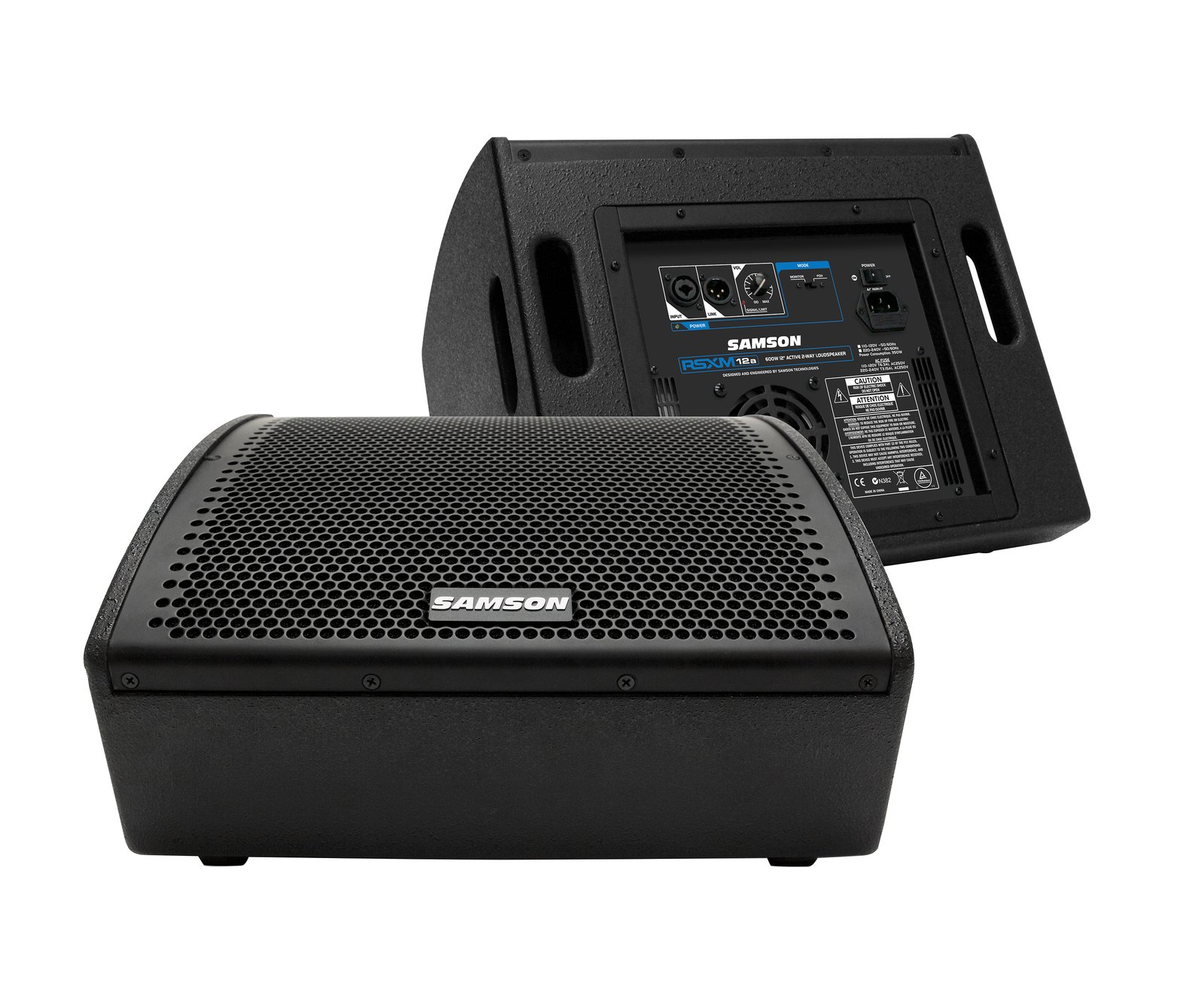

    RSXM12a-Front-Back-Pathed

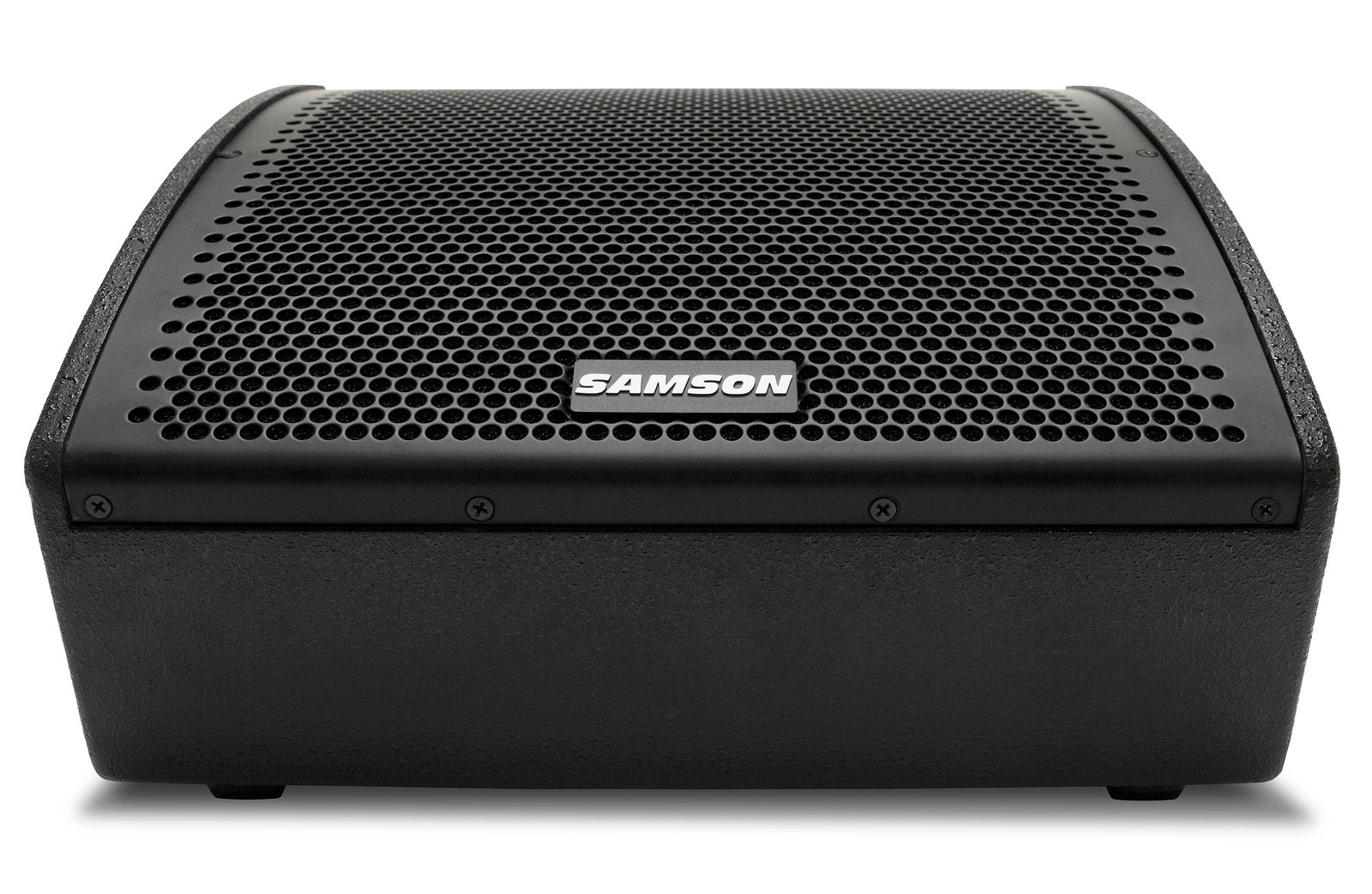

  • RSXM12a Closeup

    Multi-Talented Monitor

    Designed to bring professional performance to a variety of monitoring applications, including keyboards and electronic drums, the RSXM10A is also convenient for DJs who need a dedicated monitor while working in a compact booth. A single XLR-1/4" combo input is provided, along with an XLR link output for system expansion. In addition, the RSXM10A features a powder-coated steel grille and two integrated side carrying handles, making it durable yet highly portable for use on the road.

Features / Specs

  • Lightweight Class D 2-way active stage monitor
  • 800 watts of output power
  • All-wood cabinet construction
  • Compact, coaxial design
  • 12" low frequency driver
  • 1" tweeter
  • XLR-1/4" combo input
  • XLR Link output
  • Dedicated Volume knob
  • FOH/Monitor selector switch to optimize sound
  • 1 3/8" pole mount receptacle
  • Integrated side carry handles
  • Perforated steel grill protects all monitor components
  • Durable black, textured paint finish

Specifications

Low Frequency  350W
Peak Power 700W
High Frequency 50W
Peak Power 100W
Low Frequency 12” (304 mm) woofer with 2” (51 mm) voice-coil
High Frequency 1” (25.4 mm) Driver with 1” (25.4 mm) voice-coil
Frequency Response (-3 dB) 56 Hz to 20 kHz
Maximum SPL (Peak Power) 126 dB SPL @ 1 m
Coverage Angle (Horz. x Vert.) 70° x 70°
Equalization Switch Monitor, FOH (Front of House)
Crossover Type 12 dB/oct
Crossover Frequency 3.0 kHz
Inputs Balanced XLR & 1/4” Connectors
Output Balanced XLR Line Output
Mounting Method Integral 1 3∕8” Pole Mount Receptacle
Dimensions 15.47” x 15.39” x 14.03” / 393mm x 391mm x 356.4mm
Weight 31.81lb / 14.43kg
