Highlights
Built for Power and Mobility

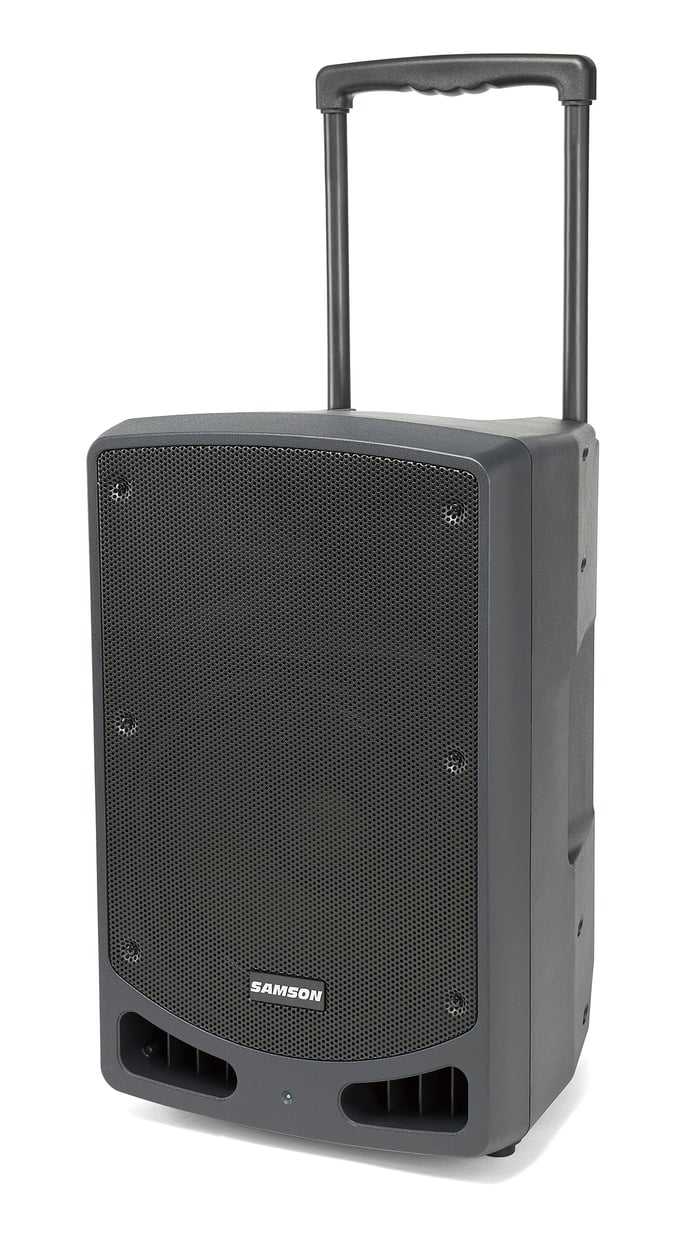

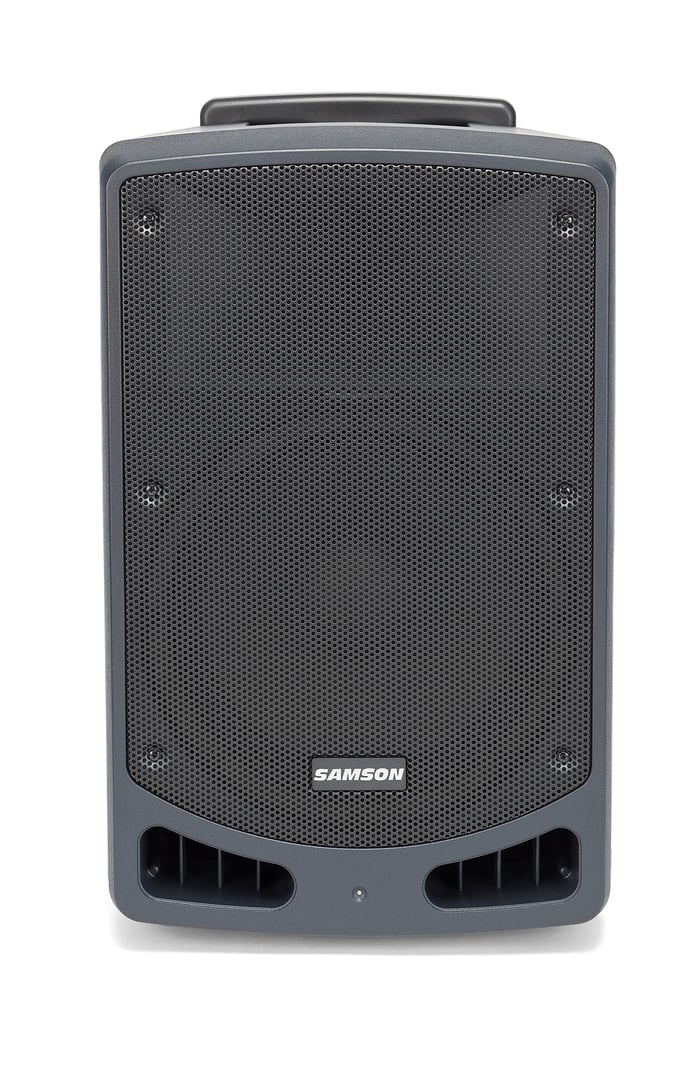

The XP312w provides up to 12 hours of continuous use from its built-in rechargeable lithium-ion battery. Its lightweight Class D amplifier delivers 300 watts of power to a 2-way speaker system with a 12" woofer and 1" tweeter. All of this is housed in a rugged polypropylene enclosure with a steel grille that weighs only 38 pounds. And with a retractable handle and smooth-running wheels, the XP312 is easy to transport. Plus, a 1 3/8" speaker stand socket allows the XP312w to be mounted on any standard speaker stand.
-
Stream, Connect, and Mix

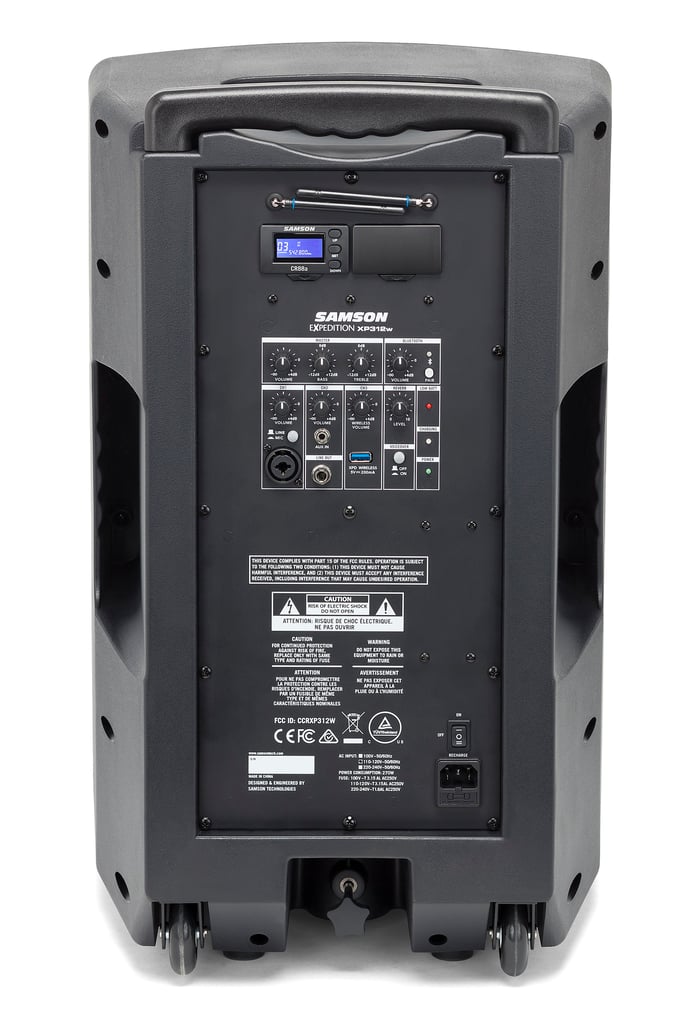

The XP312w features a 4-channel mixer with XLR, 1/4" and 1/8" inputs for connecting microphones and line-level devices, making setup quick and easy. The speaker can also stream music wirelessly from any Bluetooth device. A variable reverb control adds depth, and a voice-over ducker automatically lowers the music when speaking or singing into a microphone (XLR or wireless inputs). In addition, a master 2-band EQ is provided to adjust the tonal characteristics of the XP312w, as well as a line output for daisy-chaining additional speakers.
Wireless XPansion

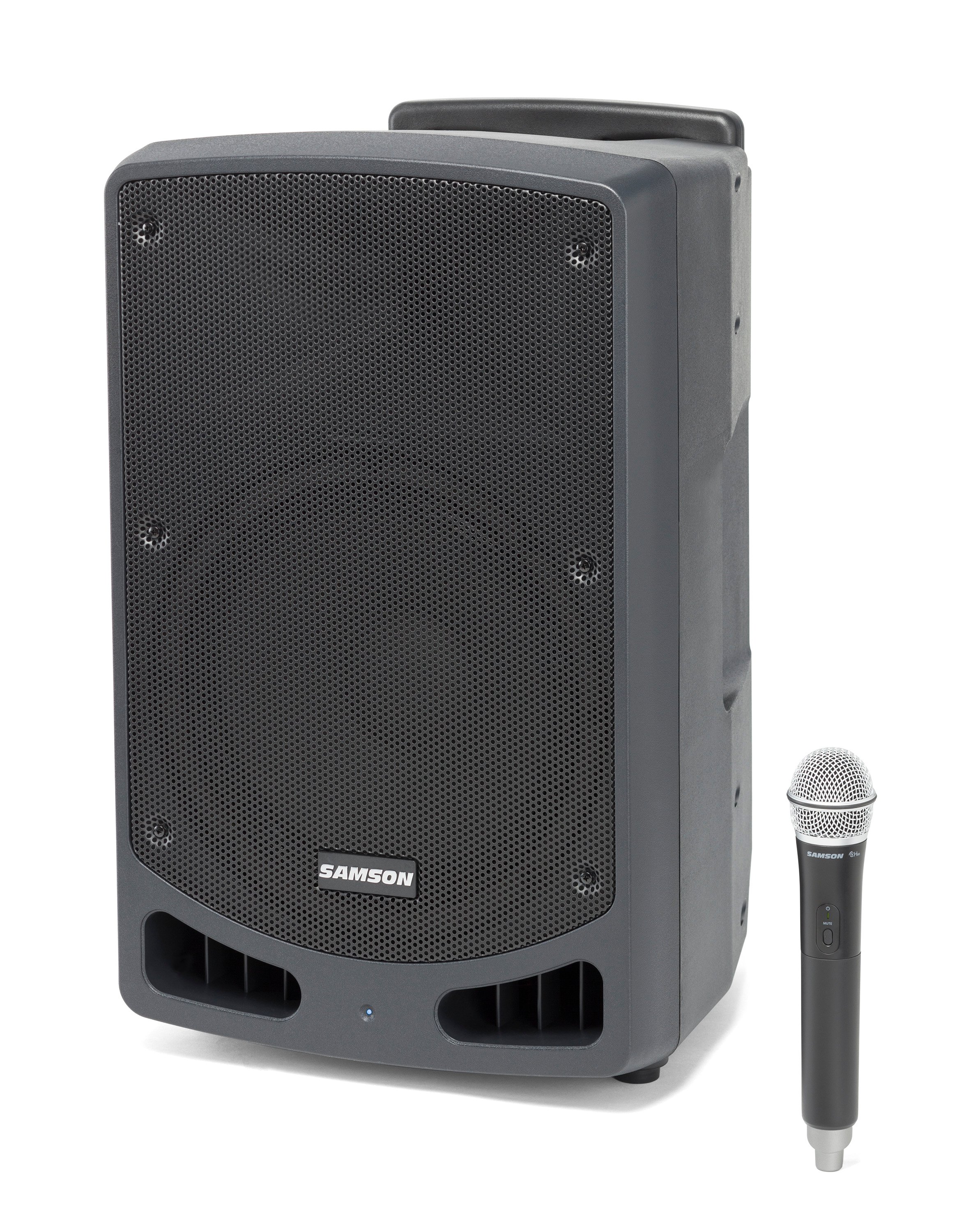

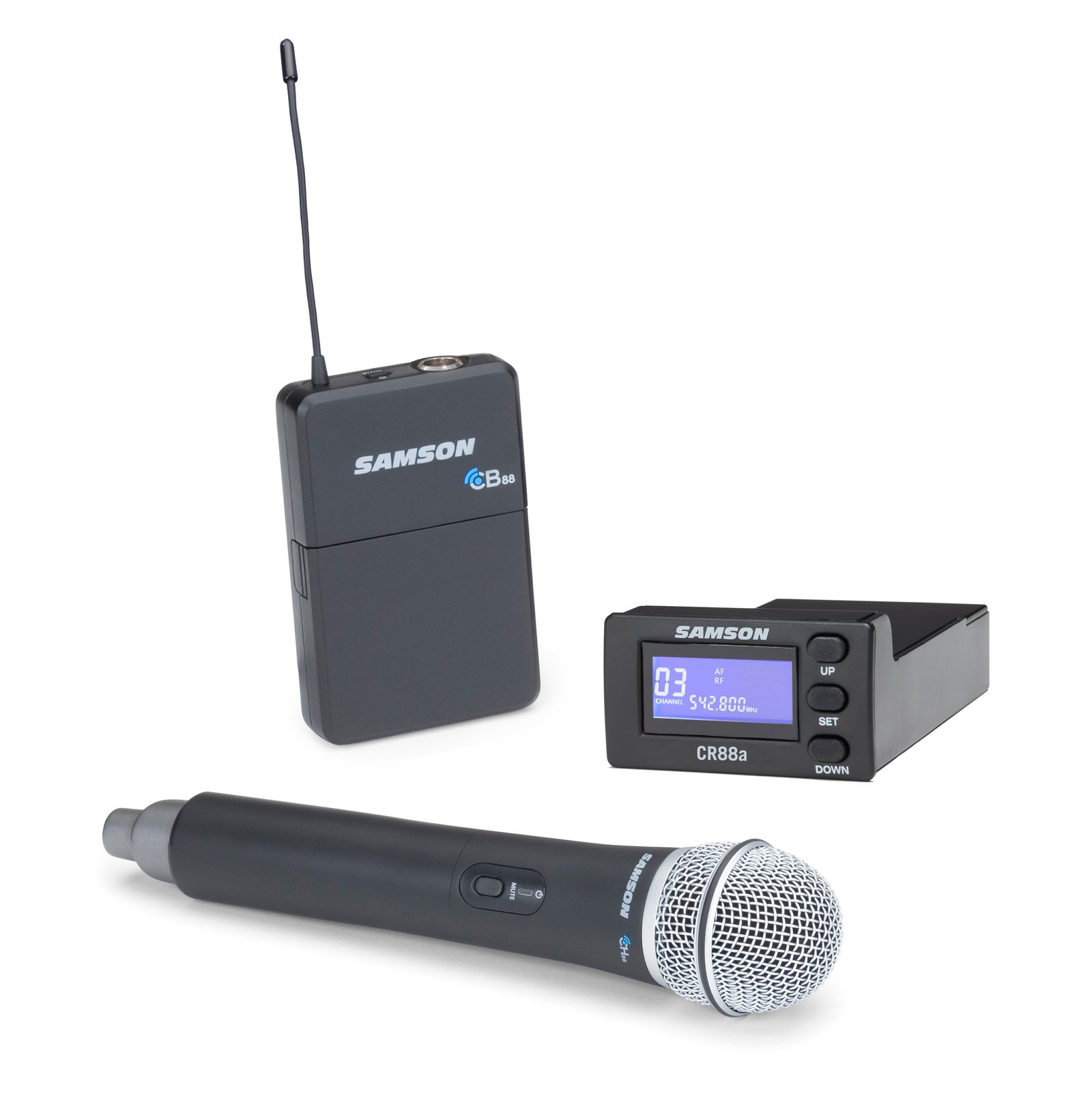

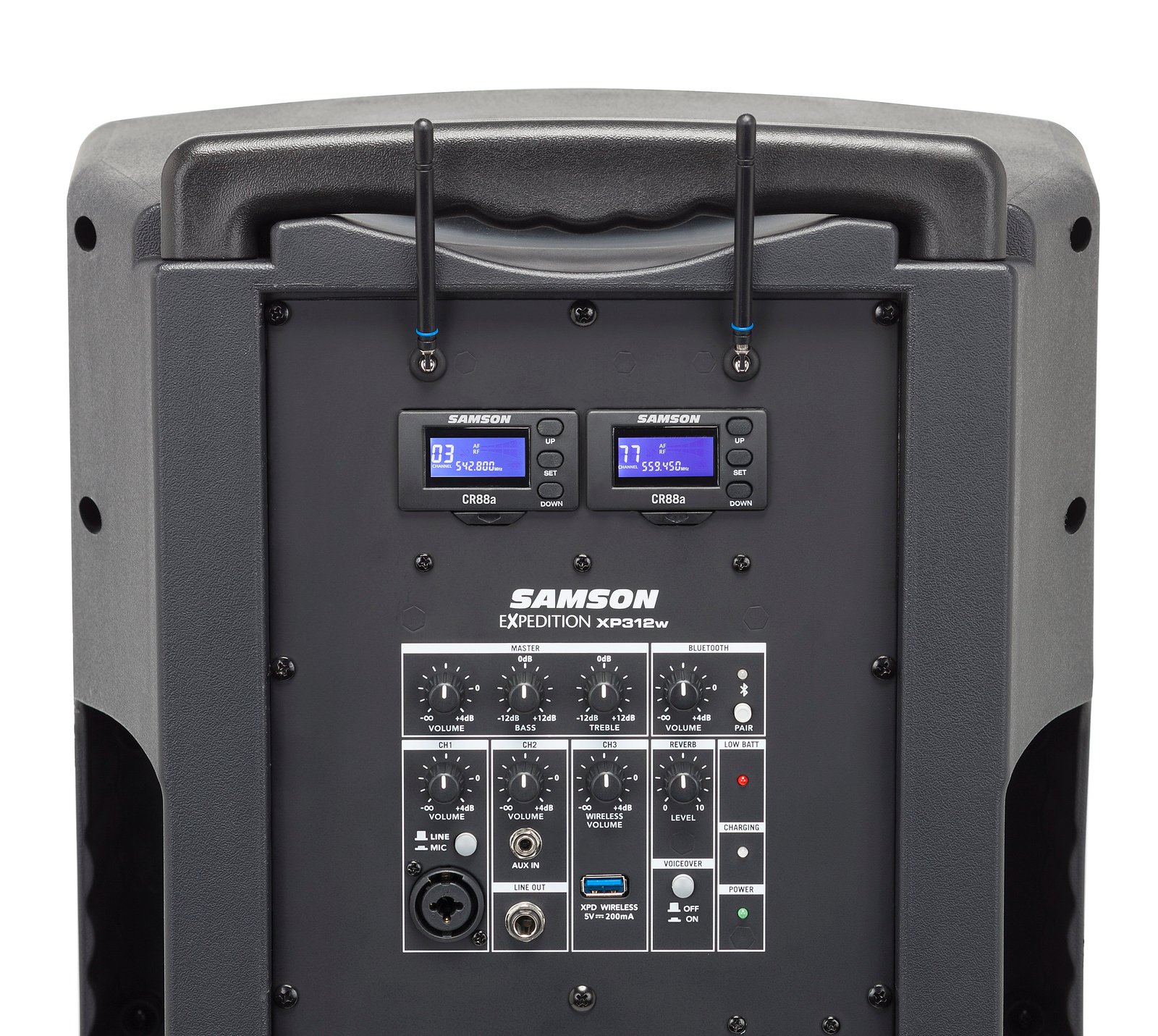

Perfect for multi-performer vocal and speech applications, the XP312w can handle up to three wireless systems simultaneously. The XP312w comes with a single Concert 88a handheld frequency-agile UHF wireless system that provides up to 300' of operating range. An additional wireless receiver slot is included for adding a second Concert 88a Series wireless system (sold separately), while the USB wireless port also allows integration of an XPD Series USB digital wireless system (sold separately).
Features
- All-in-one portable PA system that weighs 27.5lb
- Internal rechargeable lithium ion battery for up to 12 hours of continuous use
- Bluetooth connectivity to connect wireless music sources
- Includes Concert 88a Handheld Frequency-agile UHF Wireless System (300' operating range)
- Extra wireless receiver slot for adding an additional Concert 88a Series wireless system (sold separately)
- 2-way speaker enclosure with 10" woofer and 1" tweeter
- Class D amplifier produces 300 watts of Peak power
- Top-mounted 4-channel mixer with 2-band (Bass and Treble) EQ
- Independent volume controls on each channel
- XLR-1/4" combo selectable mic/line input for microphones and line level devices
- 1/8" (3.5mm) input for stereo line level devices (MP3 players, keyboards, etc.)
- Variable reverb control for mic/wireless inputs
- Voiceover control with priority ducking
- Line output to daisy-chain multiple systems together
- USB wireless port for use with Samson XPD Series USB Digital Wireless Systems (sold separately)
- Battery level, Charging and Power LED indicators
- Rugged polypropylene enclosure with steel grille
- Locking telescopic handle and smooth rolling wheels for easy transport
- 1 3/8" speaker stand mount
- Two integrated microphone mounts for wireless mic storage
More Expedition Rechargeable Portable PA Systems
XPD2 Promotion
Expedition XP106w
Rechargeable Portable PA with Handheld Wireless System
XPD2 Promotion

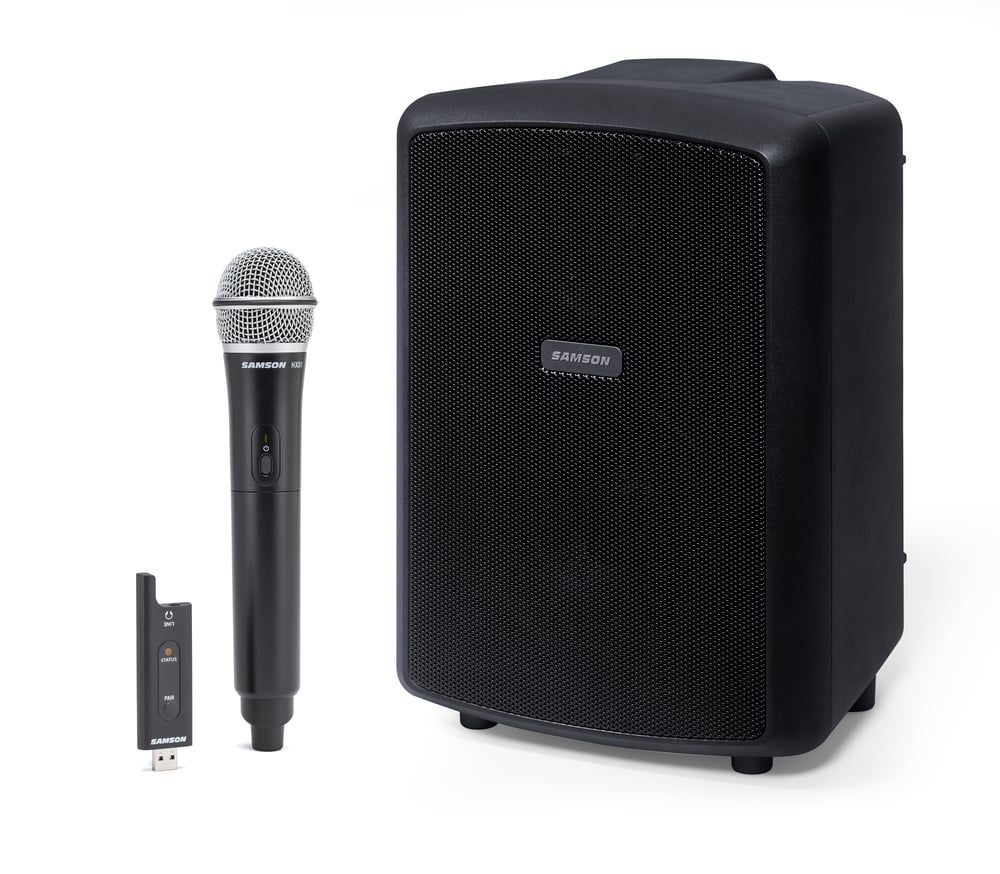

Expedition Explor with Handheld Wireless
Rechargeable Portable PA System with Handheld Wireless System
XPD2 Promotion
Expedition XP208w
Rechargeable Portable PA with Handheld Wireless System
XPD2 Promotion
Expedition XP312w
Rechargeable Portable PA with Handheld Wireless System
Expedition Rechargeable Portable PA Systems
| Expedition Escape+ - | Expedition Express+ - | Expedition XP106w - | Expedition Explor with Handheld Wireless - | Expedition XP208w - | Expedition XP310w - | Expedition XP312w - | |
|---|---|---|---|---|---|---|---|
| Audience Size | 25–50 people | 50–100 people | 75–200 people | 100–300 people | 100–300 people | 200–400 people | 300–500 people |
| Output Power | 50 watts | 75 watts | 100 watts | 200 watts | 200 watts | 300 watts | 300 watts |
| Woofer Size | 6" | 6" | 6" | 8" | 8" | 10" | 12" |
| Mid-Range Driver | – | – | – | 3.5" | – | – | – |
| HF Driver Size | 1" | 1" | 1" | 2x1" | 1" | 1" | 1" |
| Number of Channels | 2 | 3 | 4 | 3 | 4 | 4 (Top Mounted) | 4 |
| Mic Inputs | 1/4" | XLR-1/4" Combo | XLR-1/4" Combo | XLR-1/4" Combo | XLR-1/4" Combo | XLR-1/4" Combo (selectable) | XLR-1/4" Combo (selectable) |
| Line Inputs | 1/8" (3.5mm) | 1/4", 1/8" (3.5mm) | 1/4", 1/8" (3.5mm) | XLR-1/4" Combo, 1/8" (3.5mm) | 1/4" | 1/8" (3.5mm) | 1/8" (3.5mm) |
| Line Outputs | – | – | 1/4" | 1/4" | 1/4" | 1/4" | 1/4" |
| Bluetooth | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| XPD Wireless Ports | 1 | 1 | 1 | 1 | 2 | 1 | 1 |
| Concert 88a Wireless Slots | – | – | – | – | – | 2 | 2 |
| Voice Priority | – | – | – | – | Yes | Yes | Yes |
| EQ Controls | – | Bass & Treble | Music / Speech Switch | Bass, Mid & Treble | Bass & Treble | Bass & Treble | Bass & Treble |
| Included Microphones | – | Wired Handheld Mic | XPD Handheld Wireless Mic | XPD Handheld Wireless Mic | XPD Handheld Wireless Mic | Concert 88a Handheld Wireless Mic | Concert 88a Handheld Wireless Mic |
| Battery Life | Up to 20 hours | Up to 20 hours | Up to 20 hours | Up to 12 hours | Up to 20 hours | Up to 12 hours | Up to 12 hours |
| Dimensions | 8.75" x 8.75" x 12.7" /222 x 210 x 323mm | 8.75" x 8.75" x 12.7" / 222 x 210 x 323mm | 9.5" x 9" x 14.2" / 240 x 230 x 360mm | 9.4" x 11" x 16.3" / 238mm x 279mm x 413mm | 10.9" x 9.9" x 16.9" / 277 x 252 x 429mm | 12.2" x 12.2" x 22" / 310 x 310 x 560mm | 15.4" x 14.2" x 23.6" / 390 x 360 x 600mm |
| Weight | 10.4lb / 4.7kg | 11.9lb / 5.4kg | 16lb / 7.2kg | 15lb / 6.8kg | 23.8lb / 108kg | 27.5lb / 12.5kg | 38lb / 17.3kg |
