Highlights
Fitness Focus

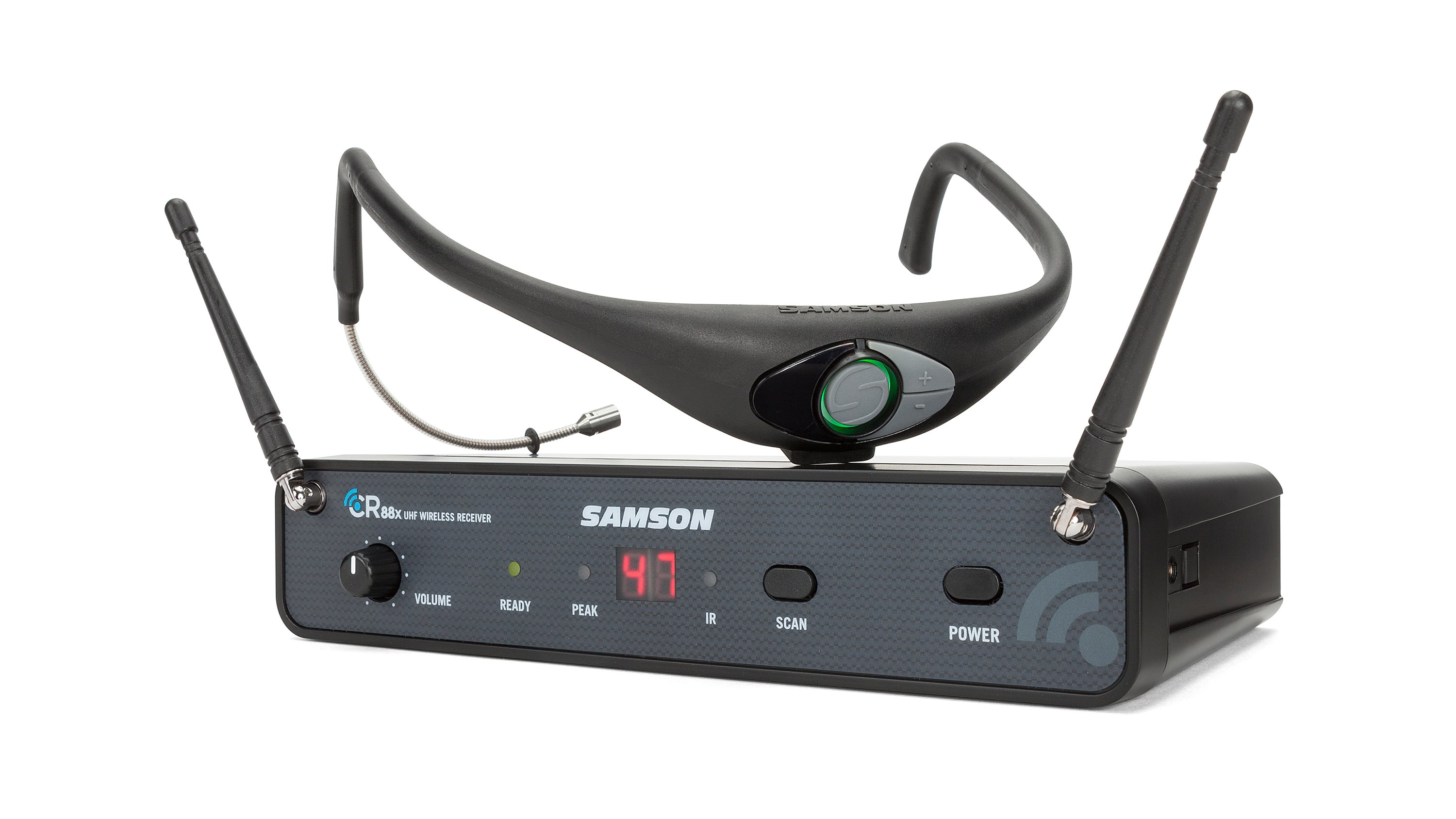

Designed to meet the needs of yoga, Pilates, Zumba, and cycling instructors, the AH8 Fitness Headset features water-resistant components to protect against sweat and the elements, including a marine-grade stainless steel gooseneck and AE50X micro-miniature microphone capsule. The capsule's cardioid pickup pattern provides excellent isolation from stray and unwanted noise for clear, intelligible speech.
-
Simple Setup, Flawless Performance
Simplicity and performance are at the heart of the Concert 88x wireless systems. One-touch scanning analyzes all available channels and selects the clearest channel for your performance space. An infrared signal then locks the transmitter and receiver together on the selected channel. With 100 frequencies and a wide 25 MHz bandwidth, there are plenty of channels available for your application.
True Wireless Performance
The True-diversity design minimizes dropouts to provide clear wireless reception for up to a 300' performance range. Tone-key and auto-mute circuitry ensure that only the audio signal from the AH8 transmitter reaches the receiver, automatically muting the system when the transmitter is out of range to prevent unwanted noise from entering the signal path.
The rear panel includes balanced (XLR) and unbalanced (1/4") outputs for connections to an amplifier or sound system. For classes with more than one instructor or facilities with multiple studios, up to eight systems per frequency band can be used simultaneously.
Features / Specs
System
- High-performance professional UHF wireless system
- 100 operating channels across 25 MHz bandwidth
- 300' maximum operating range
- Rackmount kit included
AH8 Fitness Headset Transmitter
- Integrated headset mic and transmitter (no beltpack or cable required)
- Comfortable design mold to the user’s head
- Water-resistant materials; sealed circuit board

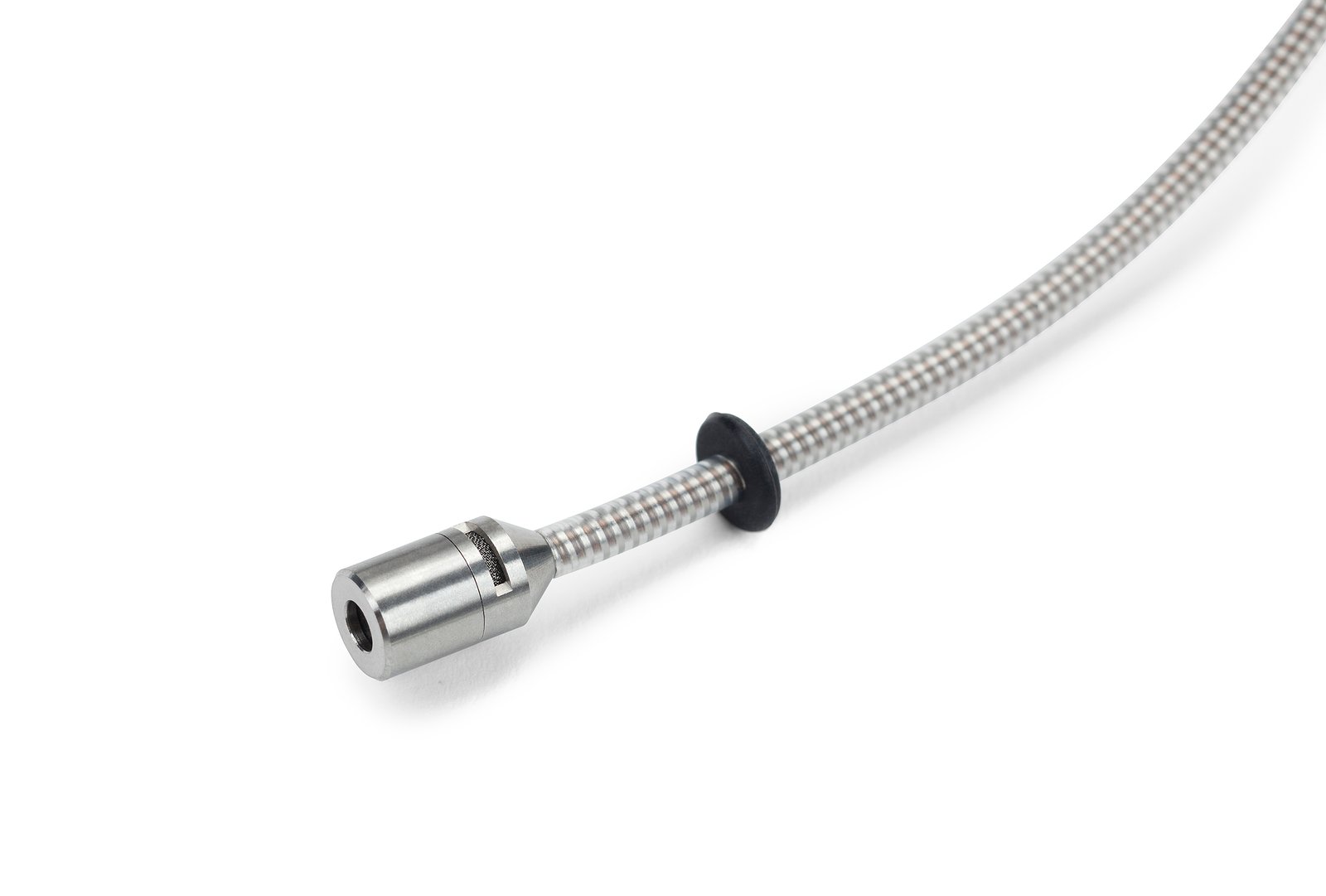

- Marine-grade stainless steel gooseneck
- Micro-miniature Samson AE50X cardioid mic capsule
- Rechargeable Lithium-ion Battery operates for up to 8 hours
- Tri-color LED indicator – Low Battery, Charging, Muted, Normal
- 300' operating range (line-of-sight)
- Variable Gain control
- Silent mute switch

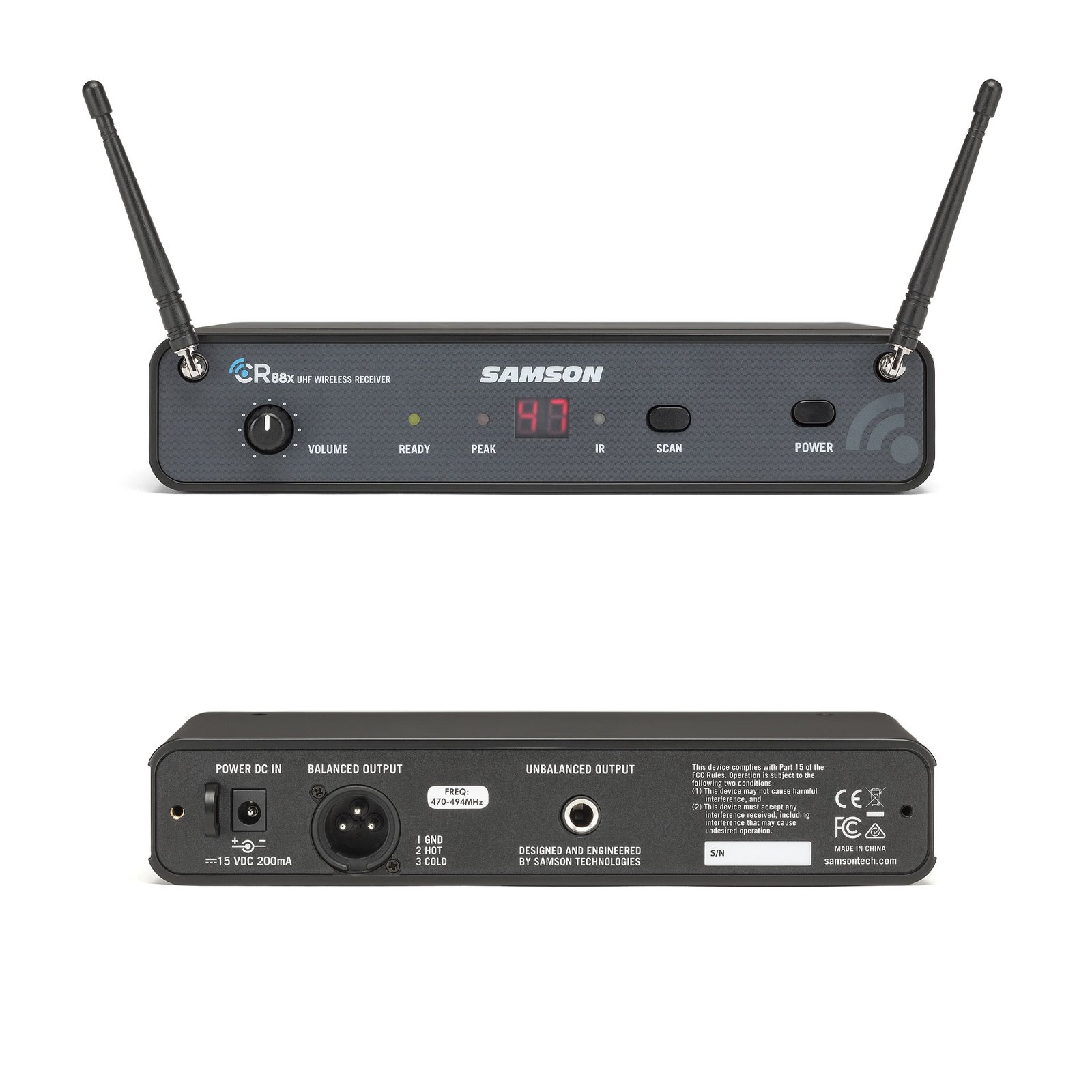

CR88x Wireless Receiver
- Bold LED display and visual indicators
- 100 available frequencies with automatic scanning/selection
- Infrared link locks the receiver and transmitter to the same channel
- True diversity design minimizes dropouts
- Tone-key and auto-mute functions eliminate background noise during dropouts
- Balanced XLR and unbalanced 1/4" outputs
Specifications
| Working Range | 300' (100m) line of sight |
|---|---|
| Audio Frequency Response | 50 Hz – 15 kHz |
| T.H.D. (Overall) | <1% (@AF 1 kHz, RF 46 dBu) |
| Dynamic Range | >100 dB A-weighted |
| Signal to Noise | >95 dB |
| Operating Temperature | –10°C (14°F) to +60°C (+140°F) |
| Tone Key Frequency | 35 kHz |
| Microphone Element | Condenser Mic |
|---|---|
| Microphone Polar Pattern | Unidirectional |
| Input Gain Range | 20dB |
| RF Power | 10mW EIRP |
| Power Requirements | 3.6V 500mAh Lithium Ion rechargeable battery |
| Battery Life | 8 hours |
| Included Accessories | 4 foam windscreens, 1 stainless steel windscreen, rubber headband |
| Dimensions (LxWxH) | 5.9" x 6.7" x 3.9" / 150mm x 170mm x 100mm |
| Weight | 0.13lb / 60g |
| Audio Output Level - Unbalanced | +14 dBu |
|---|---|
| Audio Output Level - Balanced | +9 dBu |
| Audio Output Impedance - Unbalanced | 810 Ohms |
| Audio Output Impedance - Balanced | 240 Ohms |
| Sensitivity | -100 dBm / 30 dB sinad |
| Image Rejection | >50 dB |
| Operating Voltage | 15 VDC 200mA |
| Dimensions (LxWxH) | 8.25" x 4.9" x 1.75" / 210mm x 125mm x 44mm |
| Weight | 0.88lb / 400g |
More AirLine Headset Wireless Systems
New
Compare Fitness Wireless Systems
| AirLine 77 Fitness - | AirLine 88x Fitness - | AirLine 99 Fitness - | AirLine 99m Fitness - | AirLine XD Fitness - | |
|---|---|---|---|---|---|
| Type | UHF | UHF | UHF | UHF | 2.4GHz Digital |
| Frequencies | 1 | 100 | 80 | 100 | n/a |
| Compatible Systems per band | 6 | 8 | 8 | 8 | 2 |
| Mic Capsule | Qe Fitness Headset | AE50x capsule (integrated into transmitter) | Qe Fitness Headset | Qe Fitness Headset | Qe Fitness Headset |
| Transmitter Battery | 1xAAA / 8 Hours | Lithium Ion Rechargeable / 8 Hours | Lithium Ion Rechargeable / 8 Hours | Lithium Ion Rechargeable / 8 Hours | Lithium Ion Rechargeable / 6 Hours |
| Receiver Type | Half-rack | Half-rack | Half-rack | Tabletop | USB Stick |
| Rack-mountable | Yes - Rack kit included | Yes - Rack kit included | Yes - Rack kit included | No | No |
| Receiver Output Connections | XLR, 1/4" | XLR, 1/4" | USB, 1/8" | XLR, 1/4", 1/8" | USB, 1/8" |
| Antenna Distribution Capable | No | No | Yes | No | No |
