Unleash Your Workout Potential
While Samson revolutionized wireless with the original AirLine transmitter, the AH9 is the exciting next chapter in the story. With its micro design, the AH9 transmitter attaches directly to the headset microphone, eliminating beltpacks and cables from the setup.
Micro Wireless Design, Macro Wireless Performance.
Vocal care is extremely important when teaching group fitness classes. Making sure your students can hear you without yelling not only makes the class more enjoyable, but also reduces the stress on your voice. The AirLine 99m wireless system allows you to be heard loud and clear without restricting your movement.
AH9 Micro Transmitter
The AH9 transmitter mounts directly to the included Qe headset, eliminating belt packs and cables, ideal for active performers. In addition to a 300' operating range, the AH9 features easy-access gain and mute controls, a low-battery LED indicator, and an 8-hour rechargeable lithium-ion battery.
-

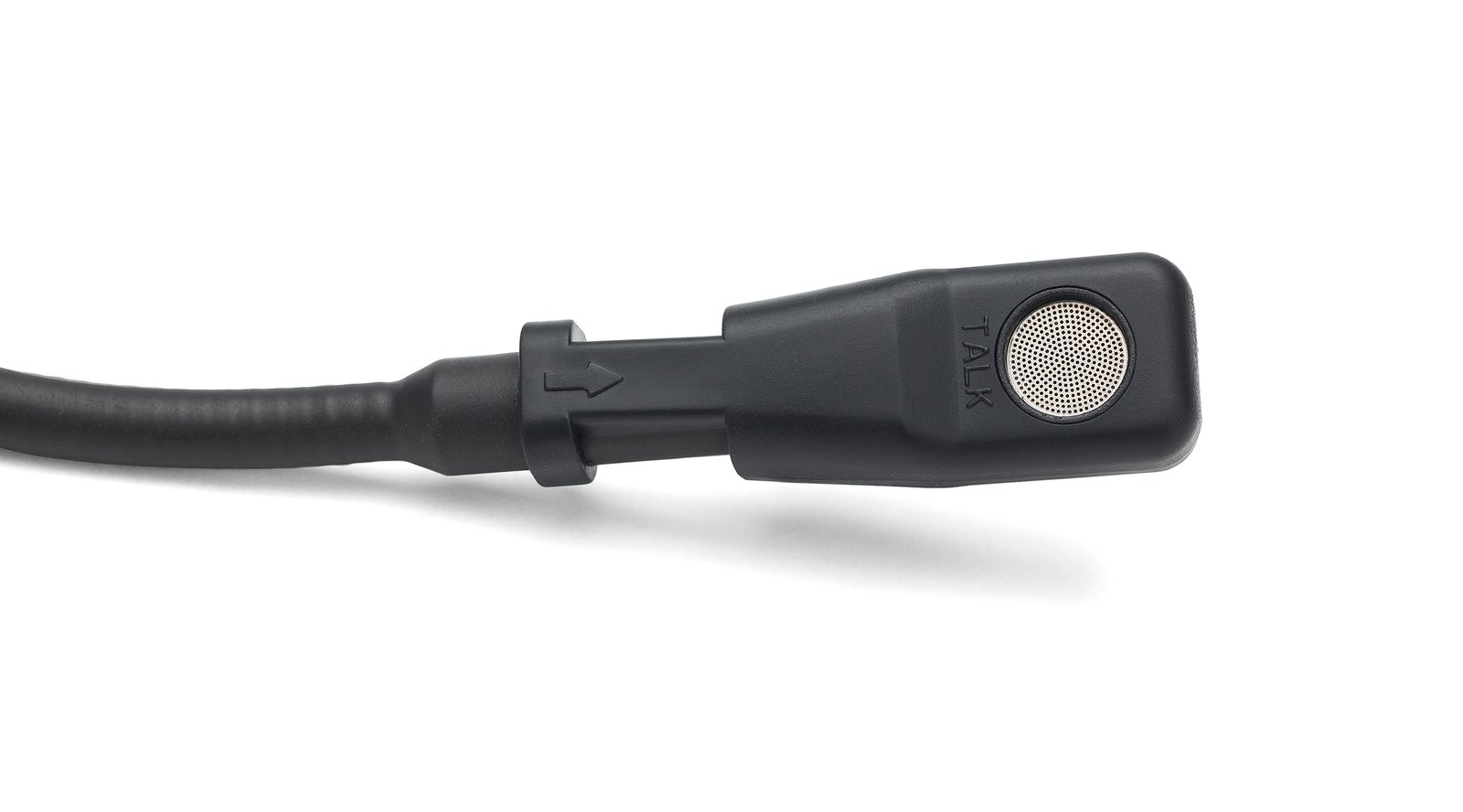

Qe Fitness Headset Microphone
The QEx is a lightweight headset that fits comfortably around your ears and head with an adjustable strap for a secure fit when needed. An adjustable stainless steel metal gooseneck with a waterproof condenser microphone prevents corrosion from prolonged exposure to moisture, which is common in fitness environments.

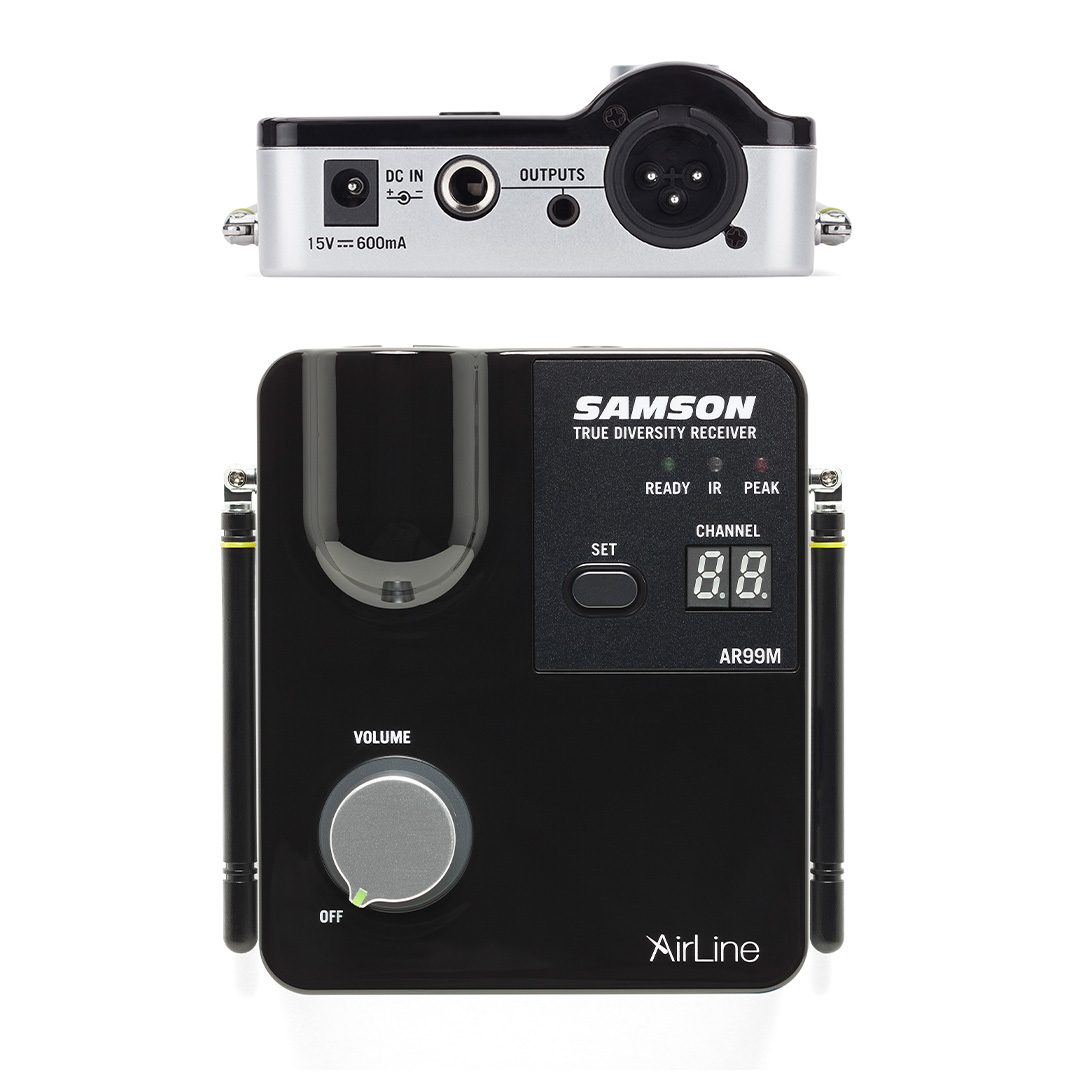

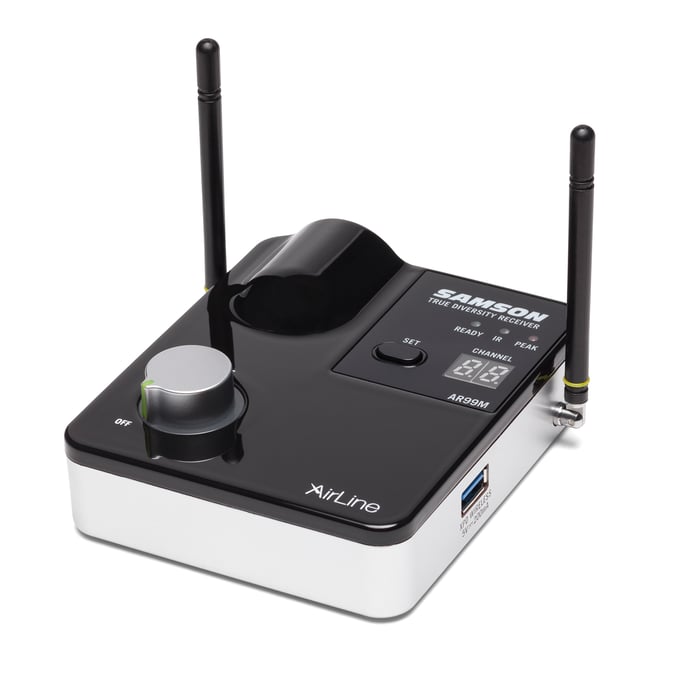

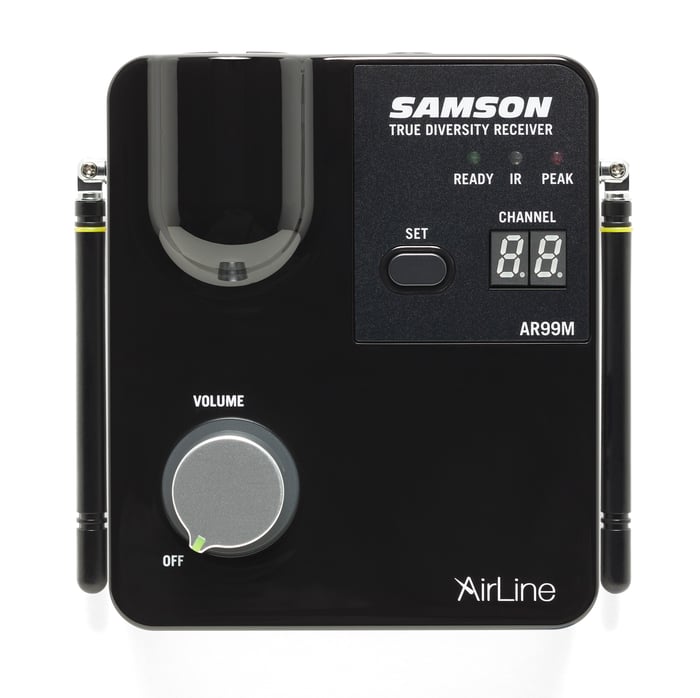

AR99m Tabletop Receiver
The micro-sized AR99m True RF Diversity receiver offers frequency-agile UHF operation with 100 available channels to ensure reliable wireless performance. The receiver offers easy setup with a one-touch scan that analyzes and selects the clearest operating channel, an infrared set to pair the transmitter with the receiver, and XLR, 1/4," and 1/8" output connectors.
-
Even More Wireless

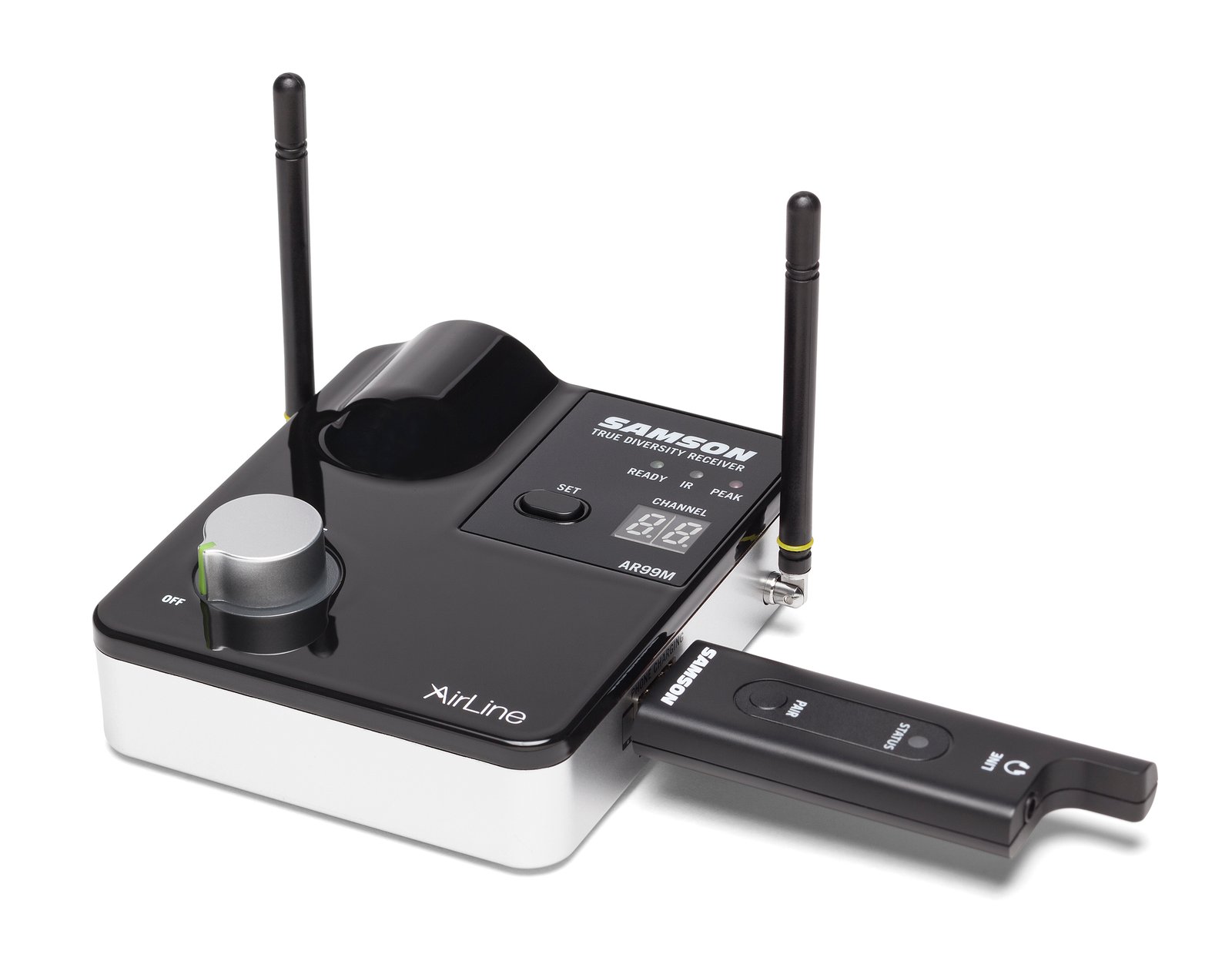

A USB port on the AR99m receiver can be used to charge the AH9 transmitter or integrate a Samson XPD Series wireless system (sold separately) to make it a dual receiver.
Instruct with Confidence
Experience freedom and clarity with the Samson AirLine 99m Fitness Headset wireless system - perfect for active aerobics instructors looking for a high-definition, portable, and durable solution.
Features / Specs

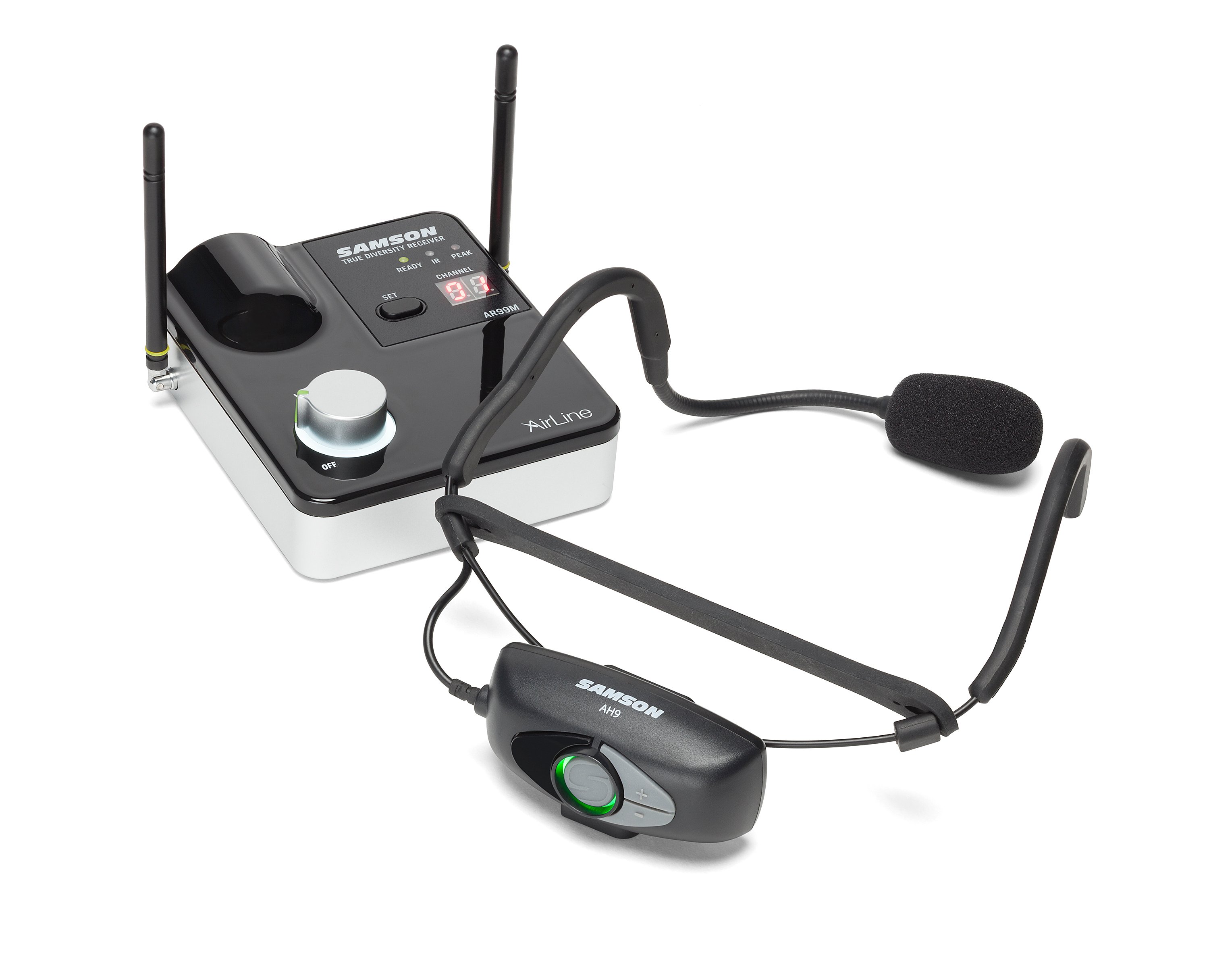

AirLine 99m Fitness Headset Wireless System
- Frequency-agile UHF wireless system
- 100 operating channels across 24MHz bandwidth
- Up to 8 simultaneous systems per frequency band (region dependent)
AH9 Wireless Micro Transmitter
- Micro transmitter mounted directly to a double ear headset (no beltpack or cable required)
- Water/sweat-resistant Qe headset microphone with condenser capsule
- Up to eight hours of battery life using built-in rechargeable lithium-ion battery
- Sealed gold contact charging connector
- Low battery LED indicator
- 300' operating range (line-of-sight)
- Variable Gain control
- One-touch Mute
- Windscreen included
AR99m Wireless Micro Receiver
- True RF Diversity micro receiver design minimizes dropouts
- Set button scans/selects optimal channel options
- IR sync wirelessly matches transmitter to receiver frequency
- Tone key prevents unwanted noise when transmitter is off or out of range
- Channel and Ready/IR/Peak LED displays

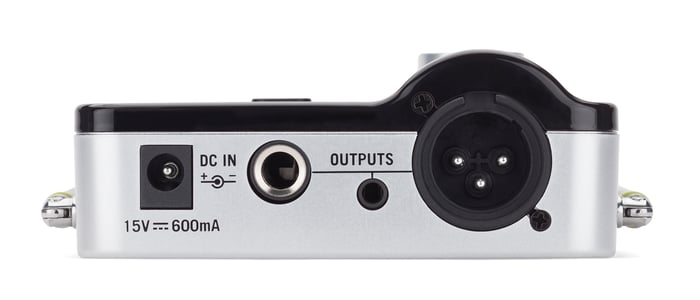

- Balanced XLR, unbalanced 1/4" and unbalanced 1/8" outputs
- USB port for adding a Samson XPD Series wireless system or charging AH9 transmitter
- Rotary volume knob with integral power switch
- 1/4-wave antennas
Specifications
| Working Range | 300' (100m) line of sight |
|---|---|
| Audio Frequency Response | 50 Hz - 15 kHz |
| T.H.D. (Overall) | <1% (@AF 1 kHz, RF 46 dBu) |
| Dynamic Range | >100 dB A-weighted |
| Signal to Noise | >95 dB |
| Tone Key Frequency | 35 kHz |
| Input Gain Range | 20dB |
|---|---|
| RF Power | 10mW EIRP |
| Power Requirements | 3.6V 500mAh |
| Lithium Ion rechargeable battery | |
| Battery Life | 8 hours |
| Dimensions | 5.9" x 6.7" x 3.9" / 150mm x 170mm x 100mm |
| Weight | 0.13lb / 60g |
| Audio Output Level 1/8" (3.5mm) & 1/4" (6.3mm) jack (unbalanced) | +14dBu |
|---|---|
| Audio Output Level XLR jack (balanced) | +9dBu |
| Audio Output Impedance 1/8" (3.5mm) & 1/4" (6.3.mm) jack (unbalanced) | 810 Ohms, |
| Audio Output Impedance XLR output jack (balanced) | 240 Ohms |
| Sensitivity | 100dBm/30dB SINAD |
| Image Rejection | >50dB |
| Operating Voltage | 15VCC 600mA |
| Dimensions (LxWxH) | 4.3" x 3.74" x 1.5" / 110mm x 95mm x 39mm |
| Weight | 0.42lb / 192g |
More Fitness Wireless Systems
New
Compare Fitness Wireless Systems
| AirLine 77 Fitness - | AirLine 88x Fitness - | AirLine 99 Fitness - | AirLine 99m Fitness - | AirLine XD Fitness - | AirLine XDm Fitness - | |
|---|---|---|---|---|---|---|
| Type | UHF | UHF | UHF | UHF | 2.4GHz Digital | 2.4GHz Digital |
| Frequencies | 1 | 100 | 80 | 100 | n/a | n/a |
| Compatible Systems per band | 6 | 8 | 8 | 8 | 2 | 2 |
| Mic Capsule | Qe Fitness Headset | AE50x capsule (integrated into transmitter) | Qe Fitness Headset | Qe Fitness Headset | Qe Fitness Headset | Qe Fitness Headset |
| Transmitter Battery | 1xAAA / 8 Hours | Lithium Ion Rechargeable / 8 Hours | Lithium Ion Rechargeable / 8 Hours | Lithium Ion Rechargeable / 8 Hours | Lithium Ion Rechargeable / 6 Hours | Lithium Ion Rechargeable / 6 Hours |
| Receiver Type | Half-rack | Half-rack | Half-rack | Tabletop | USB Stick | Tabletop |
| Rack-mountable | Yes - Rack kit included | Yes - Rack kit included | Yes - Rack kit included | No | No | No |
| Receiver Output Connections | XLR, 1/4" | XLR, 1/4" | USB, 1/8" | XLR, 1/4", 1/8" | USB, 1/8" | XLR, 1/4", 1/8" |
| Antenna Distribution Capable | No | No | Yes | No | No | No |
