Concert 88x Handheld

UHF Wireless System with Q7

The Concert 88x Handheld wireless system is the perfect solution for singers, educators, and presenters who demand professional-grade audio and ease of use. The one-touch scan feature quickly analyzes and selects the clearest of the 100 available channels, while the true-diversity design and tone key circuitry provide reliable wireless performance.

As low as 0% APR available for orders $199 and up. Learn more
Only Left
Preorder Today
Coming Soon
Call to order
We're sorry, but this item is unavailable.
Free -Day Shipping
Get it by when you order within
Get it if you order in Price:

Highlights

  • Pro Performance, Simple Setup

    Simplicity and performance are at the heart of the Concert 88x wireless systems. One-touch scanning analyzes all available channels and selects the clearest channel for your performance space. An infrared signal then locks the transmitter and receiver together on the selected channel. With 100 frequencies and a wide 25 MHz bandwidth, there are plenty of channels available for your event/application.

    Female singer with wireless microphone

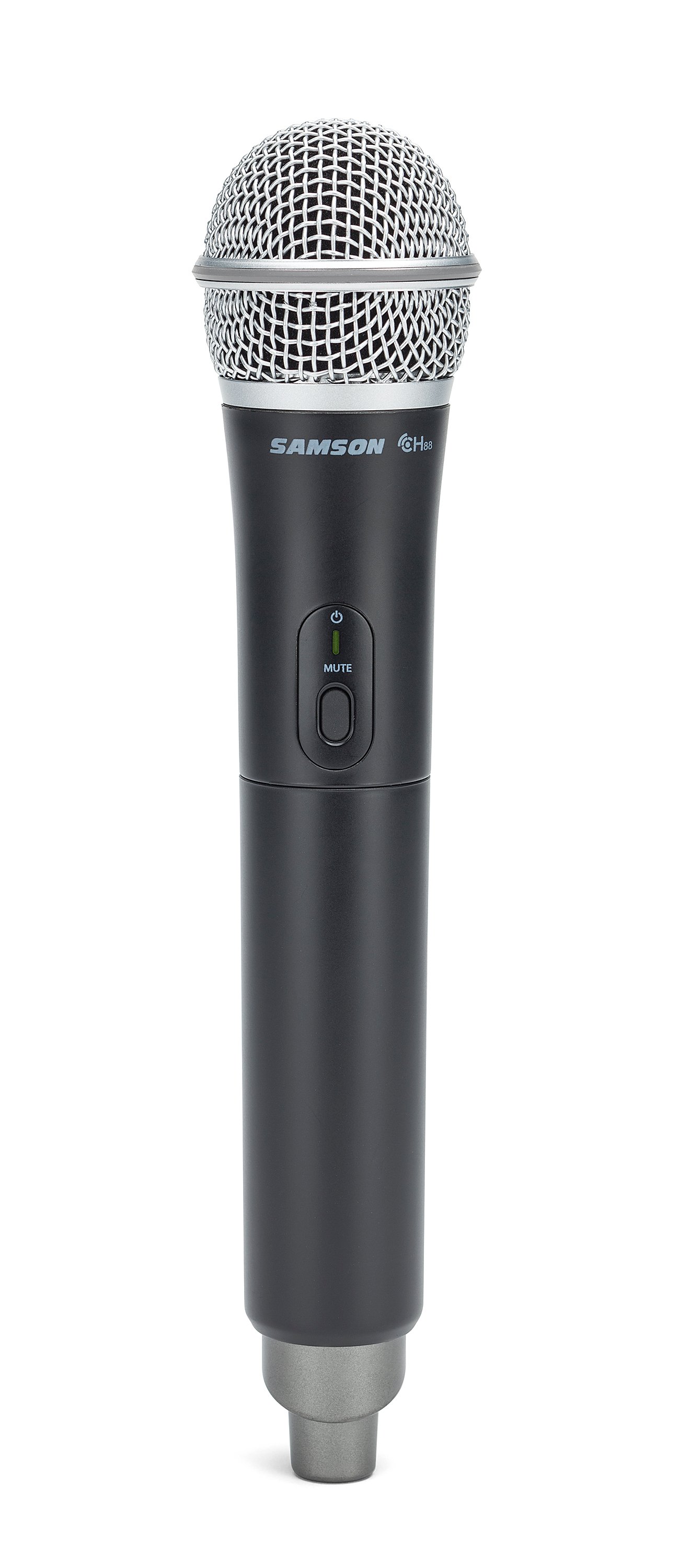

  • CH88-Q7x-HO

    Sound Secure

    The CH88 handheld transmitter features the Samson Q7 dynamic microphone capsule. This microphone offers extended dynamic range and excellent transient response, and the supercardioid pickup pattern provides excellent off-axis rejection, minimizing ambient noise and reducing feedback. Enjoy up to eight hours of continuous operation with a pair of AA batteries.

  • Freedom to Roam the Stage

    True-diversity design minimizes dropouts for loud, clear wireless reception up to 300 feet. Tone key and auto-mute circuitry ensures that only the audio signal from the CH88 beltpack transmitter reaches the receiver, and automatically mutes the system when the transmitter is out of range to prevent unwanted noise from entering the signal path.

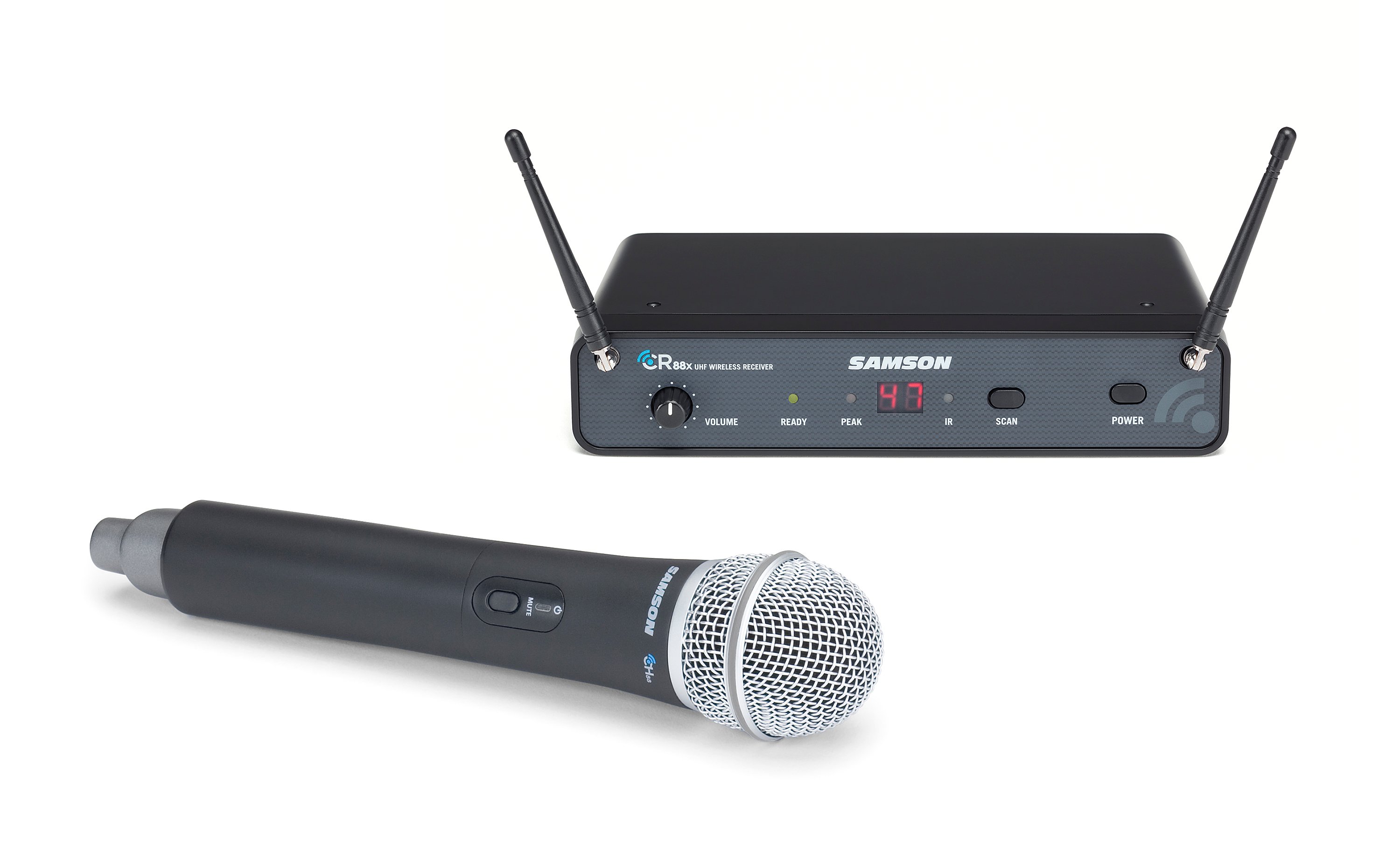

    CR88x-HH-System-Q7
  • CR88x-Back

    Making Connections

    The rear panel provides both balanced (XLR) and unbalanced (1/4") connections to an amplifier, sound system, or recording console. The half-rack format and included rackmount kit allow single or multiple CR88x receivers to be installed in a portable audio rack or fixed location.

Features / Specs

Concert 88x Handheld System

  • High-performance professional UHF wireless system
  • 100 operating channels across 25 MHz bandwidth
  • Up to 8 systems can be used simultaneously per frequency band (region dependent)
  • 300' operating range (line-of-sight)
  • Rackmount kit included

CH88 Handheld Transmitter

  • Q7 dynamic microphone capsule
  • Adjustable input gain
  • Silent mute button
  • Power/Mute status indicator
  • Up to eight hours of continuous use from two AA batteries

CR88x Wireless Receiver

  • One-touch automatic frequency scan finds the best operating channel
  • Two digit LED display
  • Infrared link locks the receiver and transmitter to the same channel
  • True diversity design minimizes dropouts
  • Tone key and auto mute prevents unwanted noise when transmitter is off or out of range
  • Balanced XLR and unbalanced 1/4" outputs

Specifications

System
Working Range 300' (100m) line of sight
Audio Frequency Response 50 Hz - 15 kHz
T.H.D. (Overall) <1% (@AF 1 kHz, RF 46 dBu)
Dynamic Range >100 dB A-weighted
Signal to Noise >90 dB
Tone Key Frequency 35 kHz
CH88 Handheld Transmitter
Microphone Element Dynamic
Input Gain Range 28 dB
RF Power 10 mW EIRP
Power Requirements Two AA (LR6) alkaline batteries
Battery Life 8 hours
Dimensions 10.23" x ø2.1" / 260mm x ø54mm
Weight 0.48lb / 218g
CR88x Receiver
Audio Output Level - Unbalanced +14 dBu
Audio Output Level - Balanced +9 dBu
Audio Output Impedance - Unbalanced 810 Ohms
Audio Output Impedance - Balanced 240 Ohms
Sensitivity -100 dBm / 30 dB sinad
Image Rejection >50 dB
Operating Voltage 15 VDC 200mA
Dimensions (LxWxH) 8.25" x 4.9" x 1.75" / 210mm x 125mm x 44mm
Weight 0.88lb / 400g

Compare Handheld Wireless Systems

XPD2 Handheld

-

XPDm Handheld

-

Concert 88x Handheld

-

Concert 99 Handheld

-
Type 2.4GHz Digital 2.4GHz Digital UHF UHF
Frequencies n/a n/a 100 80
Compatible Systems per band 2 2 8 8
Mic Capsule Q6 Dynamic Q6 Dynamic Q7 Dynamic Q8 Dynamic
Transmitter Battery 2xAA / 20 hours 2xAA / 20 hours 2xAA / 8 hours 2xAA / 8 hours
Receiver Type USB Stick Tabletop Half-rack Half-rack
Rack-mountable No No Yes - Rack kit included Yes - Rack kit included
Receiver Output Connections USB, 1/8" XLR, 1/4", 1/8" XLR, 1/4" XLR, 1/4"
Antenna Distribution Capable No No No Yes

Consumer Alert: Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless microphone website at www.fcc.gov/cgb/wirelessmicrophones.
