CR88x Receiver

For Concert 88x, AirLine 88x

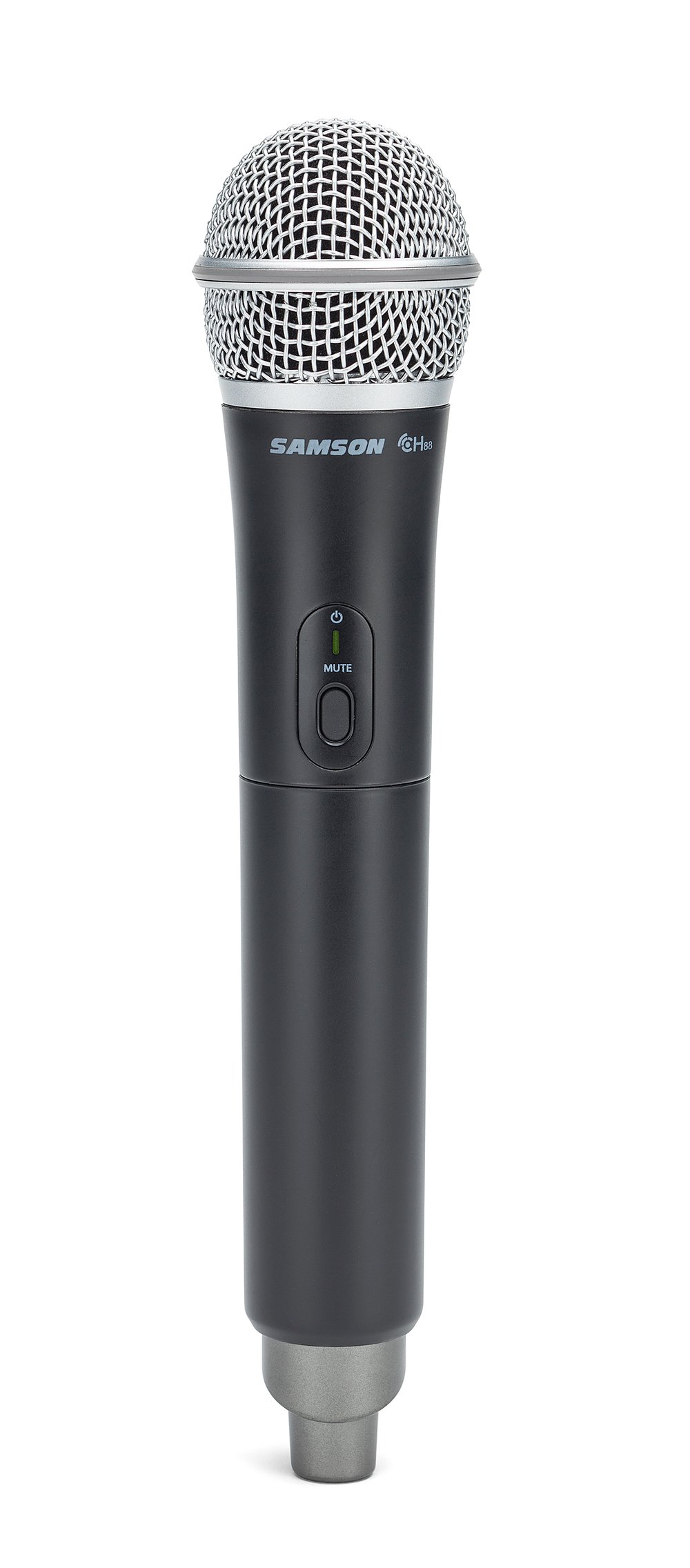

The True-diversity design minimizes dropouts to provide loud and clear wireless reception for up to a 300' performance range. Tone-key and auto-mute circuitry ensure that only the audio signal from the CH88 handheld transmitter reaches the receiver, automatically muting the system when the transmitter is out of range to prevent unwanted noise from entering the signal path.

As low as 0% APR available for orders $199 and up. Learn more
Only Left
Preorder Today
Coming Soon
Call to order
We're sorry, but this item is unavailable.
Free -Day Shipping
Get it by when you order within
Get it if you order in Price:

Features / Specs

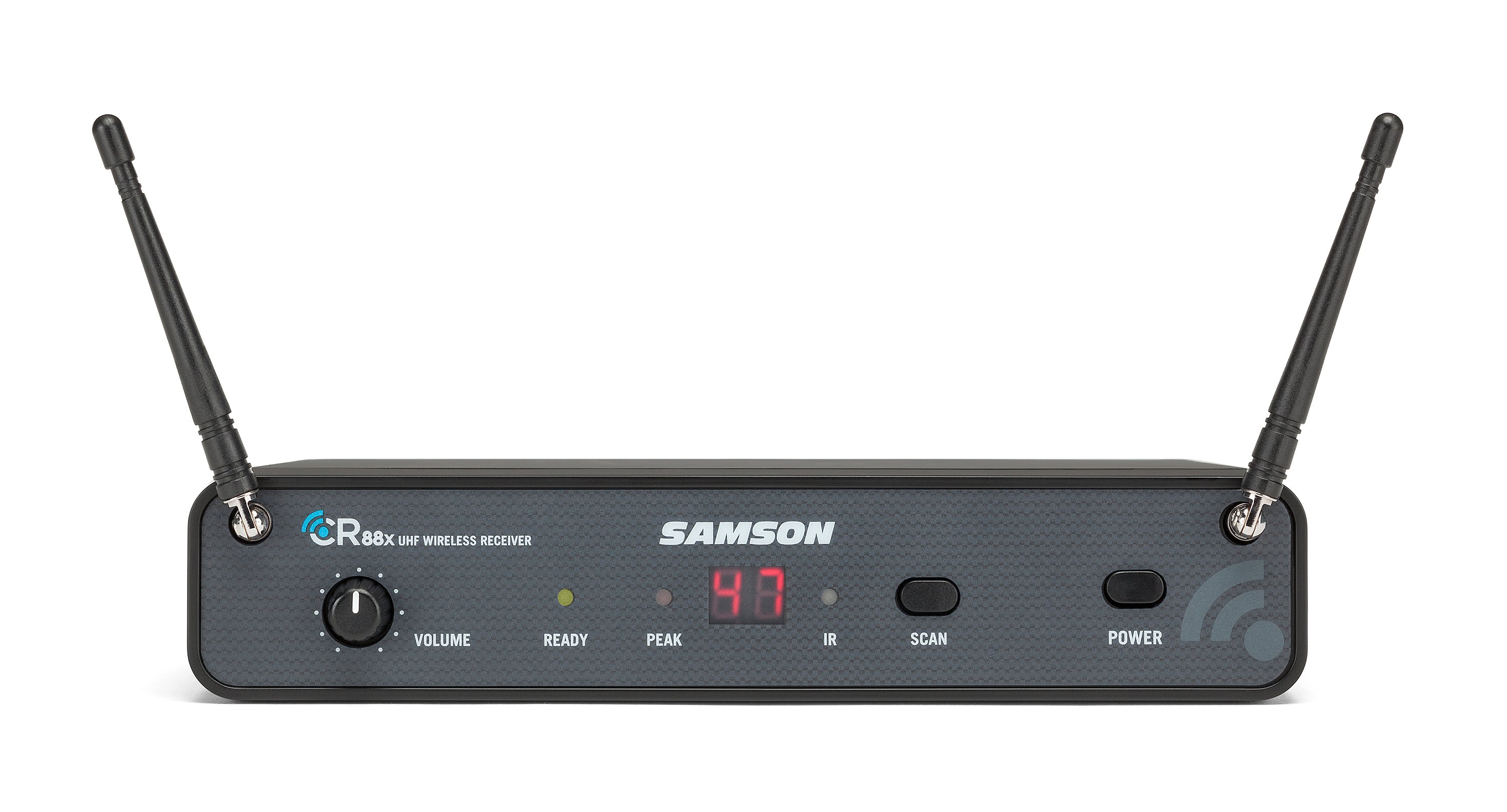

  • One-touch automatic frequency scan finds the best operating channel
  • Two digit LED display
  • Infrared link locks the receiver and transmitter to the same channel
  • True diversity design minimizes dropouts
  • Tone key and auto mute prevents unwanted noise when transmitter is off or out of range

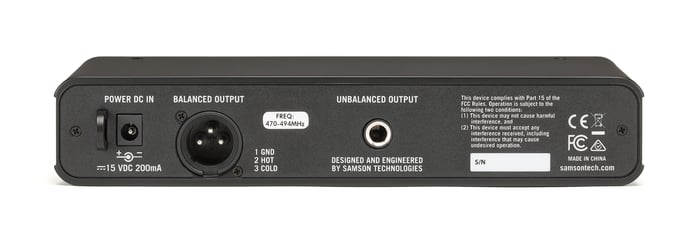

  • Balanced XLR and unbalanced 1/4" outputs

Specifications

Audio Output Level - Unbalanced +14 dBu
Audio Output Level - Balanced +9 dBu
Audio Output Impedance - Unbalanced 810 Ohms
Audio Output Impedance - Balanced 240 Ohms
Sensitivity -100 dBm / 30 dB sinad
Image Rejection >50 dB
Operating Voltage 15 VDC 200mA
Dimensions (LxWxH) 8.25" x 4.9" x 1.75" / 210mm x 125mm x 44mm
Weight 0.88lb / 400g

Warning CALIFORNIA PROPOSITION 65 WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
