Wireless To The Nines
The CR99 wireless receiver offers a total of 80 operating channels, allowing you to select the best frequency option for your area. Quick to set up, the CR99's Group Scan helps avoid conflicting frequencies, while its IR Sync feature allows users to wirelessly match the transmitter to the receiver's operating frequency.
-
Speak Loud and Clear
The CH99 handheld transmitter features Samson's Q8 professional dynamic microphone capsule. Offering eight hours of battery life on two AA batteries (not included), the CH99 transmitter features a variable gain control and a pop-free, one-touch mute button.
Freedom to Roam the Stage
The extremely rugged, all-metal CR99 receiver features a bright, backlit LCD for monitoring on dark stages, even at long distances. The LCD also shows the exact battery life of your transmitter, along with the channel number and its corresponding UHF frequency. The receiver includes removable 1/4-wave antennas and features front and rear mounted BNC jacks.
-
Making Connections

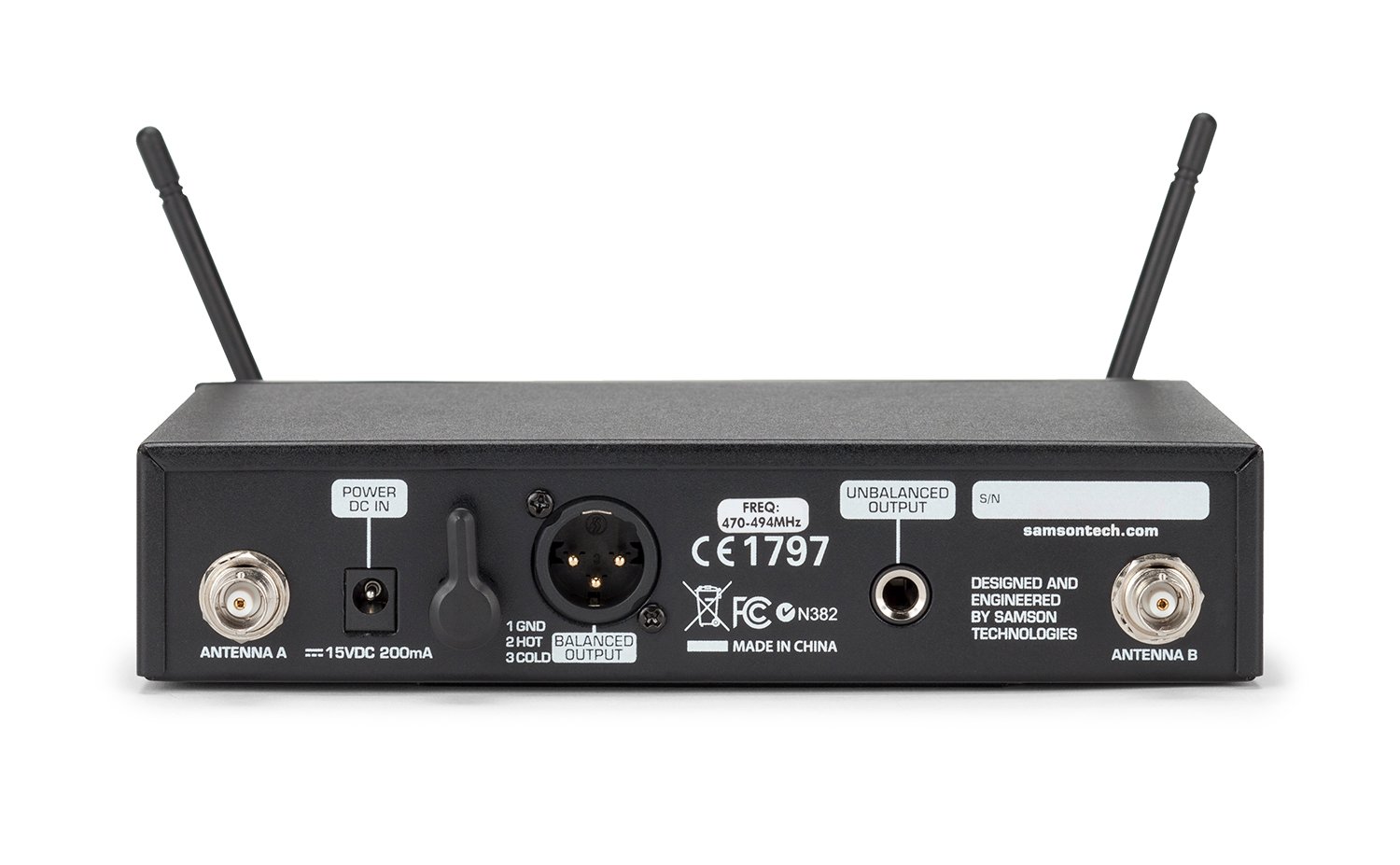

The rear panel provides both balanced (XLR) and unbalanced (1/4") connections to an amplifier, sound system, or recording console. The half-rack format and included rackmount kit allow single or multiple CR99 receivers to be installed in a portable audio rack or fixed location.
Wireless Freedom, Unmatched Clarity
Combining high-definition audio, easy setup, and reliable performance, Concert 99 wireless systems offer unprecedented value for performers, musicians, and presenters.
Features / Specs

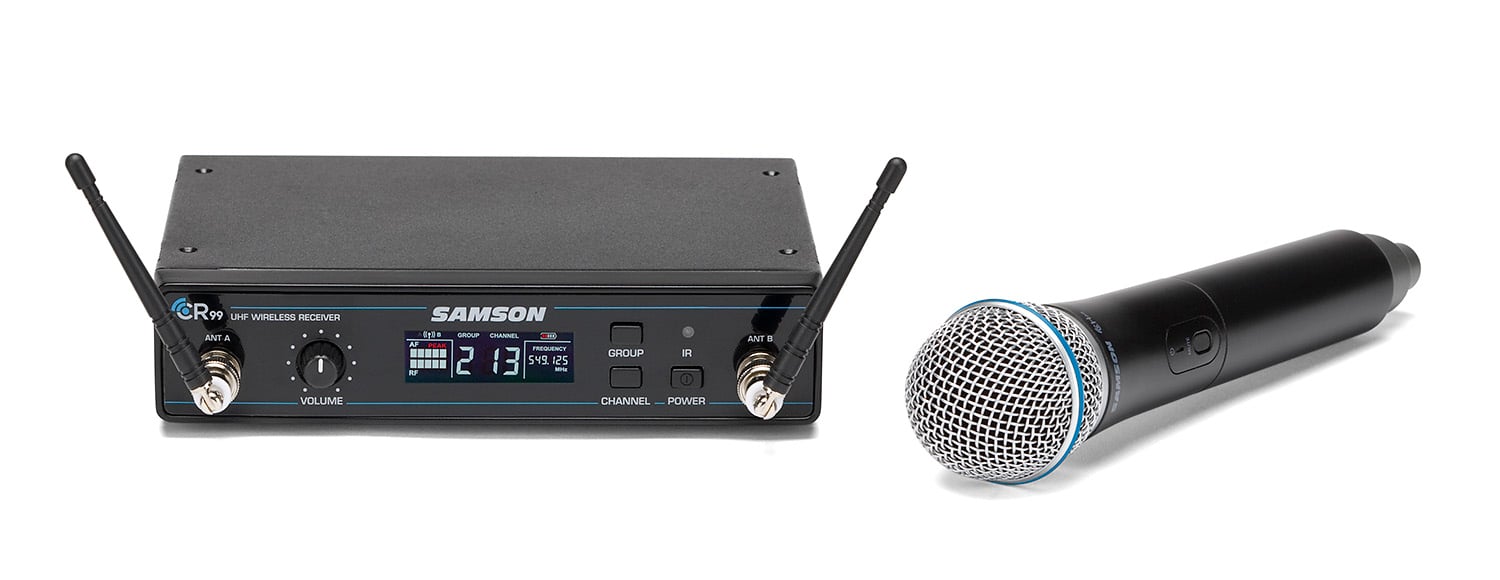

Concert 99 Handheld System
- Frequency-agile UHF wireless system
- 80 operating channels across 24MHz bandwidth
- Up to eight simultaneous systems per frequency band (region dependent)
- AC adapter and rackmount kit included

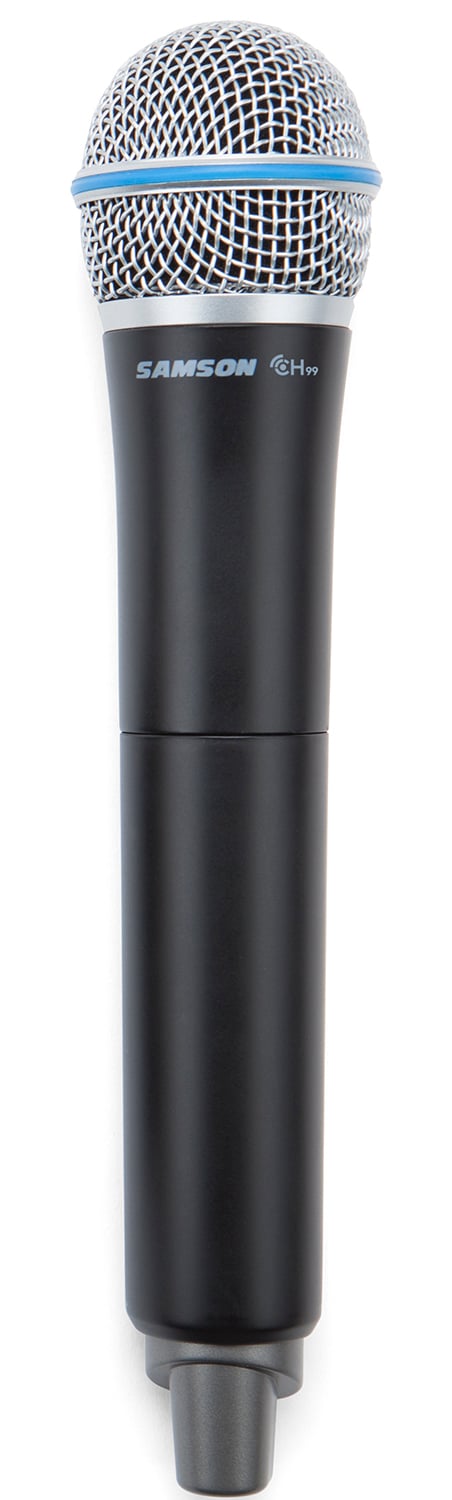

CH99 Handheld Transmitter
- Q8 Professional Dynamic Microphone capsule
- Offers up to eight hours of battery life using two AA batteries
- 300' operating range (line-of-sight)
- Variable Gain control
- One-touch Mute

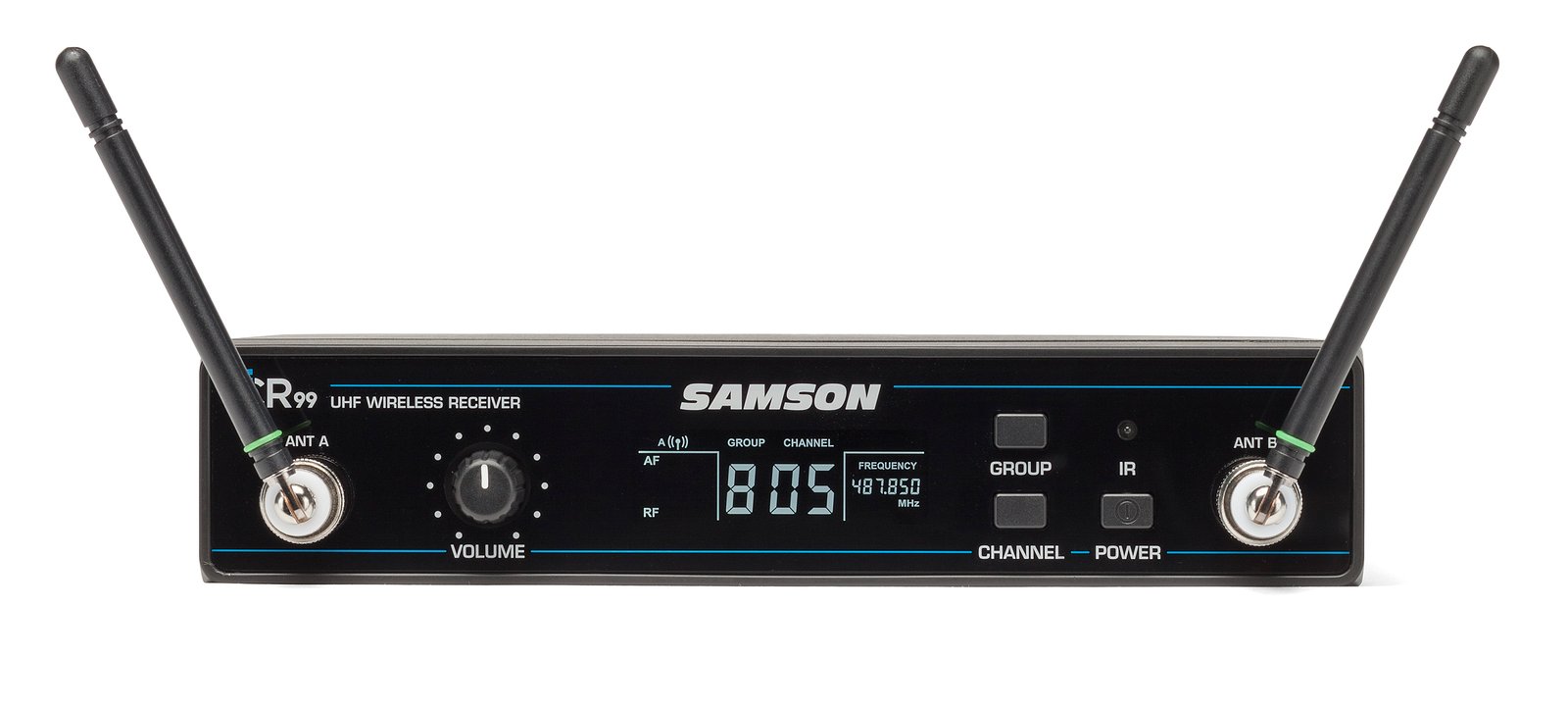

CR99 Wireless Receiver
- Rugged, all-metal rack mountable chassis
- Multifunctional backlit LCD (RF, audio, transmitter battery levels)
- Group scan for easy single or multi-system setup
- IR sync wirelessly matches receiver and transmitter frequency
- True RF Diversity design minimizes dropouts
- Tone key prevents unwanted noise when transmitter is off/out of range
- Removable 1/4-wave antennas
- Balanced XLR and 1/4" outputs
Specifications
| Working Range | 300' (100m) line of sight |
|---|---|
| Audio Frequency Response | 50 Hz - 15 kHz |
| T.H.D. (Overall) | <1% (@AF 1 kHz, RF 46 dBu) |
| Dynamic Range | >103 dB A-weighted |
| Signal to Noise | >90 dB |
| Tone Key Frequency | 35kHz |
| Microphone Element | Q8 Dynamic |
|---|---|
| Input Gain Range | 28 dB |
| RF Power | 10 mW EIRP |
| Power Requirements | Two AA (LR6) alkaline batteries |
| Battery Life | 8 hours |
| Dimensions | 10.23" x ø2.1" / 260mm x ø54mm |
| Weight | 0.48lb / 218g |
| Audio Output Level - Unbalanced | +14 dBu |
|---|---|
| Audio Output Level - Balanced | +9 dBu |
| Audio Output Impedance - Unbalanced | 810 Ohms |
| Audio Output Impedance - Balanced | 240 Ohms |
| Sensitivity | -100 dBm / 30 dB sinad |
| Image Rejection | >50 dB |
| Operating Voltage | 15 VDC 200mA |
| Dimensions (LxWxH) | 7.87" x 5.9" x 1.6" / 200mm x 150mm x 42mm |
| Weight | 2.08lb / 946g |
More from the Concert 99 Series
Compare Handheld Wireless Systems
| XPD2 Handheld - | XPDm Handheld - | Concert 88x Handheld - | Concert 99 Handheld - | |
|---|---|---|---|---|
| Type | 2.4GHz Digital | 2.4GHz Digital | UHF | UHF |
| Frequencies | n/a | n/a | 100 | 80 |
| Compatible Systems per band | 2 | 2 | 8 | 8 |
| Mic Capsule | Q6 Dynamic | Q6 Dynamic | Q7 Dynamic | Q8 Dynamic |
| Transmitter Battery | 2xAA / 20 hours | 2xAA / 20 hours | 2xAA / 8 hours | 2xAA / 8 hours |
| Receiver Type | USB Stick | Tabletop | Half-rack | Half-rack |
| Rack-mountable | No | No | Yes - Rack kit included | Yes - Rack kit included |
| Receiver Output Connections | USB, 1/8" | XLR, 1/4", 1/8" | XLR, 1/4" | XLR, 1/4" |
| Antenna Distribution Capable | No | No | No | Yes |
