Concert XD2 Handheld

Two-Channel Digital Wireless Handheld System

The Concert XD2 redefines wireless audio excellence for vocal and multi-performer presentations. Operating in the 1.9 GHz frequency band, it delivers unparalleled sound clarity by eliminating interference. Using advanced digital wireless technology, the Concert XD2 delivers ultra-low latency and superior audio quality that outperforms analog wireless systems.

Coming Soon

Great for: Audio for Video, Education, Theater / Production, House of Worship, Portable Audio, Live Sound

Highlights

  • Sound Delivery Precision

    Concert XD2's advanced digital wireless technology delivers a higher signal-to-noise ratio than analog wireless, ensuring a clear and pristine audio signal. The system's extended dynamic range captures a wide spectrum of vocal nuance, preserving everything from the softest whisper to the loudest scream. Powered by the Sheersound™ audio codec, this system enables wireless transmission with unprecedented low latency and superior quality.

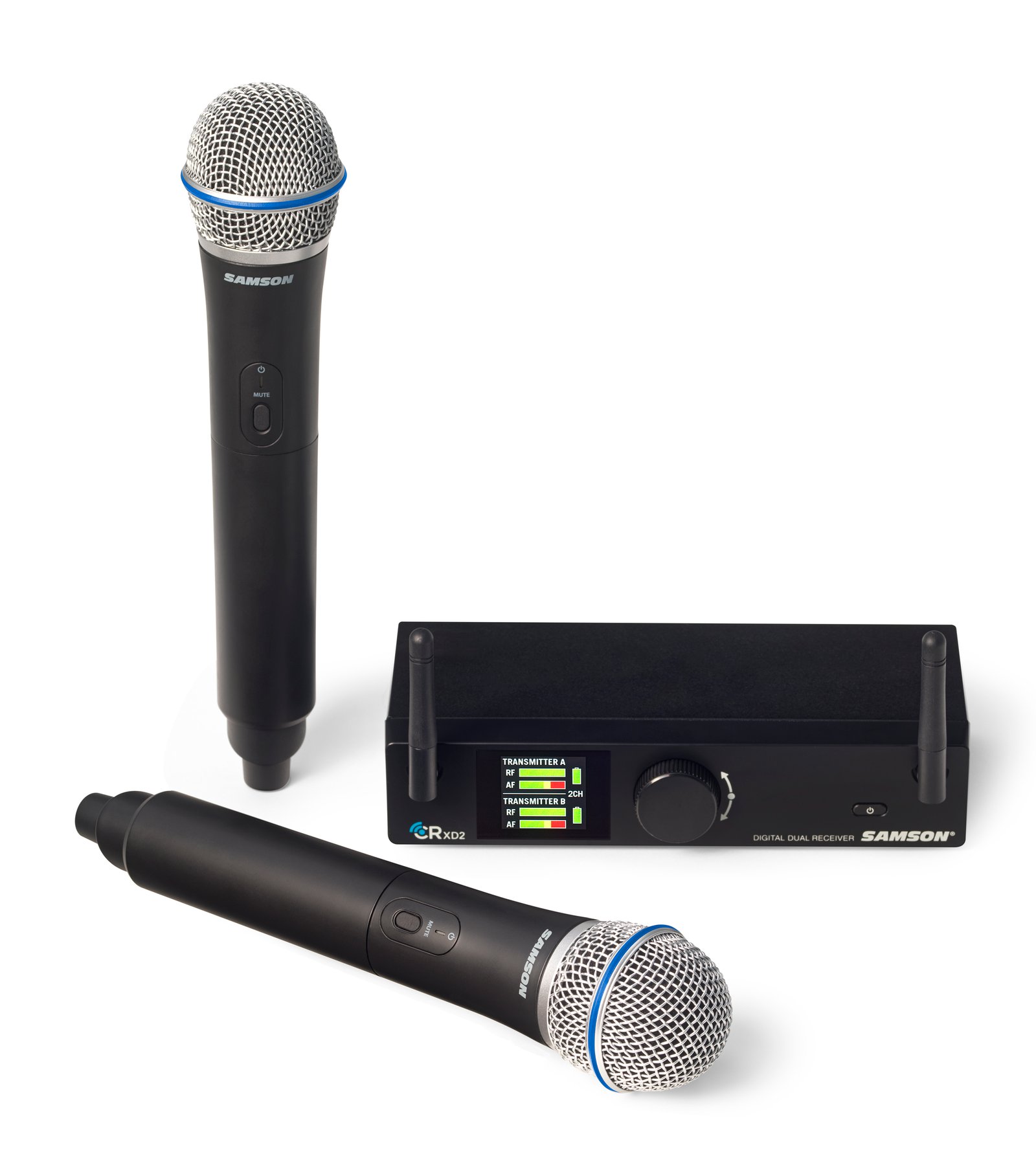

    CONCERT XD2 System One Transmitter Up
  • Concert XD2 Two Singers

    Clarity Beyond Compare

    Operating in the 1.9 GHz frequency band, the Concert XD2 provides an environment of unparalleled reliability and clarity. Unlike more crowded frequency bands such as 2.4 GHz or 5.8 GHz, the clear 1.9 GHz spectrum remains free of interference, ensuring seamless, uninterrupted communication.

  • Perform in Pairs

    The Concert XD2 Handheld includes two handheld transmitters with Samson's premium Q8 dynamic vocal microphone capsules. Powered by two AA batteries for up to eight hours each, the transmitters are designed to provide the ultimate in sound reproduction.

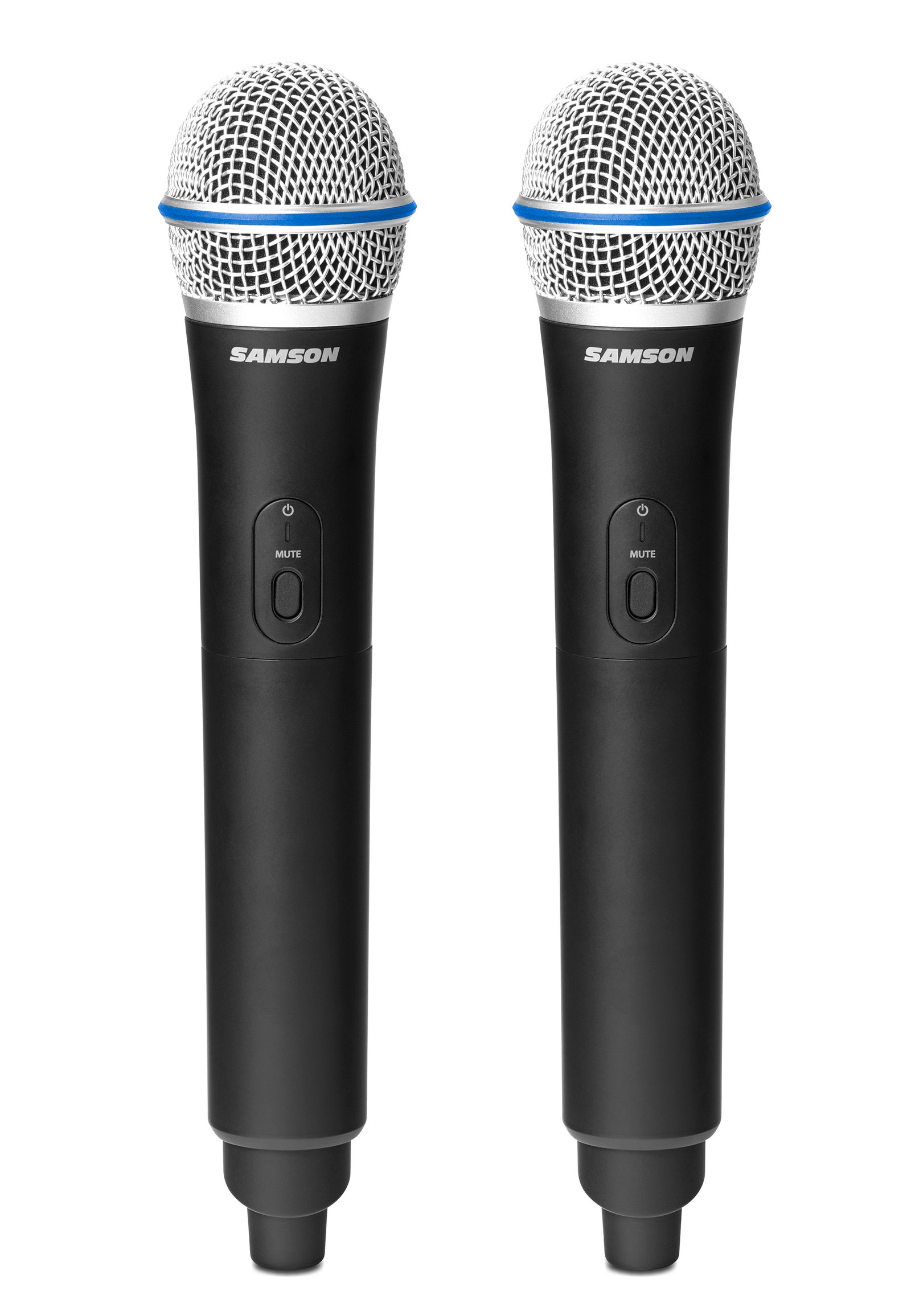

    CONCERT XD2 CHXD2 Handheld Transmitters

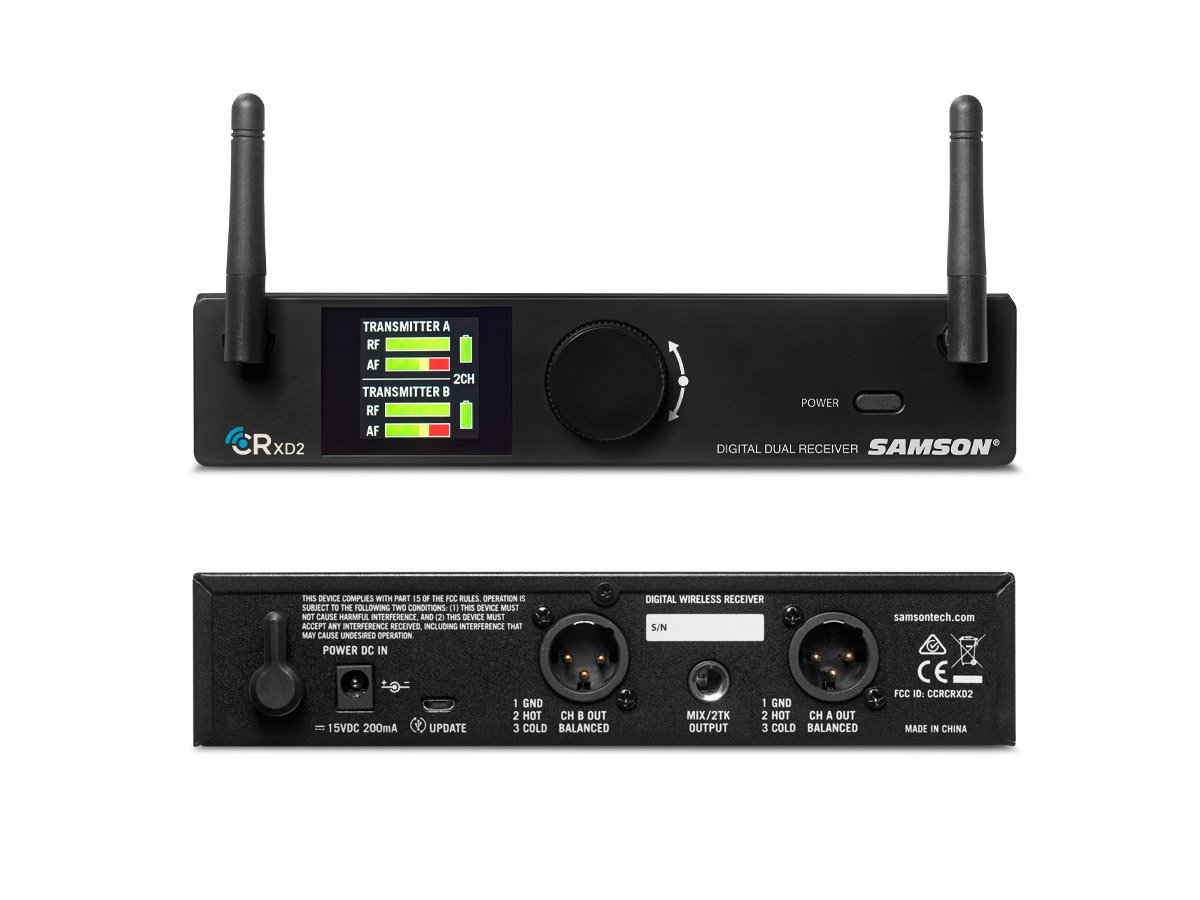

  • Concert XD2 Receiver Front and Rear

    Dual-Channel Receiver

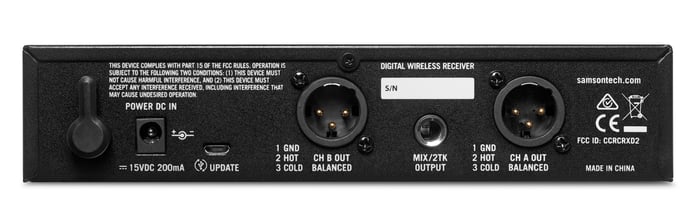

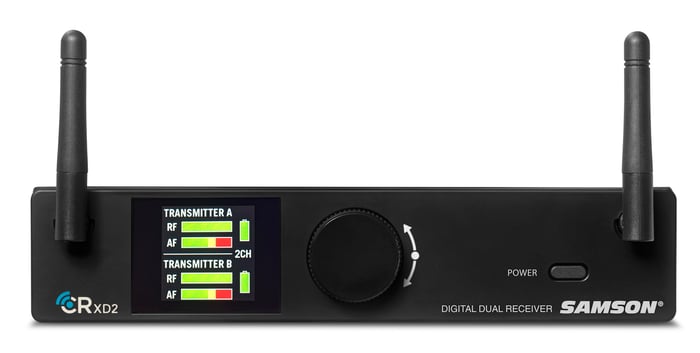

    Designed for multiple performers, the system offers easy setup with auto-scan and wireless pairing. The half-rack receiver features a high-contrast color display with easy-to-read audio, RF, and battery level indicators. Each channel has a balanced XLR output and there is a single 1/4" TRS output that can be set to 2-channel or mono routing options, the Concert XD2 delivers a superior audio experience for a variety of applications, including vocal performance, karaoke, presentations, education, houses of worship, and interviews.

1.9 GHz Icon

Exploring the Benefits of the 1.9 GHz Band

Discover why the 1.9 GHz band is the optimal choice for wireless microphones. Explore its advantages over other frequency bands, including reduced interference, extended range, and reliable signal penetration. Find out why the 1.9 GHz band is the preferred option for singers, speakers, and performers.

1.9 GHz Icon

Features / Specs

  • Advanced digital wireless technology that delivers crystal-clear audio for vocal performances and multi-performer presentations
  • Operates in the license-free 1.9 GHz frequency band to avoid interference from TV broadcasts, WiFi and Bluetooth
  • Sheersound™ audio codec offers unprecedented low latency and superior quality for an exceptional audio experience
  • Quick and easy setup with auto-scan and wireless pairing
  • Includes two handheld transmitters with Samson Q8 dynamic vocal microphones
  • Concert XD2 transmitters provide up to 8 hours of operation on two AA batteries
  • Half-rack receiver provides individual outputs and a mixed output for versatile routing in a variety settings
  • Included rackmount kit provides added convenience for easy integration

Specifications

System
Working Range  300' (100m) line of sight
RF Frequency Range US: 1921.536~1928.448 MHz EU: 1881.792~1897.344 MHz JP: 1895.616-1904.256 MHz
Audio Sampling Rate  48 kHz
Audio Frequency Response  ±1 dB from 20 Hz - 21 kHz
System Latency  7.7 ms
CHXD2 Transmitter
Microphone Element  Q8 Dynamic
Audio THD  -74 dB (0.02%)
RF Power  20 dBm (FCC) 23 dBm (RED)
Power  Two AA batteries NiMH or Alkaline
Battery Life  Up to 8 hours
Dimensions (HxØ)  10.23” x 2.1” / 260 mm x 54 mm
Weight  0.60 lb / 274 g
CRXD2 Receiver
Audio Output Level 1/4” (6.3mm) +12dBu
Audio Output Level XLR +9dBu
Audio Output Impedance 1/4” (6.3mm)  100 Ω
Audio Output Impedance XLR  317 Ω
Dimensions (LxWxH)   7.79 ” x 3.38” x 1.69” / 198 mm x 86 mm x 4 3mm
Weight  1.12 lb / 509.5 g

Multi-Channel Wireless Comp Chart

Stage 200

-

Stage 212

-

XPD2m Handheld

-

Concert 288 Handheld

-

Concert 288m Handheld

-

Concert XD2 Handheld

-
Type VHF VHF 2.4 GHz Digital UHF UHF 1.9 GHz Digital
Dual / Quad Dual Dual Dual Dual Dual Dual
Frequencies per Channel 1 12 n/a 16 100 n/a
Compatible Systems 4 3 1 10 per band 4 per band Up to 8
Available Configurations Dual Handheld Dual Handheld Dual Handheld, Presentation Dual Handheld, Presentation, All-In-One Dual Handheld, Presentation, All-In-One Handheld
Transmitter Battery 2xAA / 12 hours 2xAA / 10 hours 2xAA / 20 hours 2xAA / 8 hours 2xAA / 8 hours 2xAA / 8 hours
Receiver Type Tabletop Tabletop Tabletop Half-rack Tabletop Half-rack
Rack-mountable No No No Yes - Rack kit included No Yes - Rack kit included
Receiver Output Connections Dual 1/4", Mixed XLR Dual 1/4", Mixed XLR Dual XLR, Mixed 1/4", Mixed 1/8" Dual XLR, Mixed 1/4" Dual XLR, Mixed 1/4", Mixed 1/8" Dual XLR, Two-Track/Mixed 1/4"
