Concert XD2 Presentation

Two-Channel Digital Wireless Presentation System

The Concert XD2 sets a new standard for multi-speaker presentations. It delivers unparalleled sound clarity and eliminates interference by operating in the clear 1.9 GHz frequency band. Designed to be the cutting edge in digital wireless technology, the Concert XD2 delivers ultra-low latency and superior audio quality that outperforms analog wireless counterparts.

Coming Soon

Great for: Portable Audio, Live Sound, Audio for Video, House of Worship, Education, Theater / Production

Highlights

  • Precise Audio Quality

    Concert XD2 delivers a higher signal-to-noise ratio than analog wireless systems with its digital wireless architecture, ensuring a clear and pristine audio signal. The system's extended dynamic range captures a wide spectrum of vocal nuance, preserving everything from the softest whisper to the loudest scream. The Sheersound™ audio codec powering the system enables unprecedented low latency and superior audio quality in its wireless transmission.

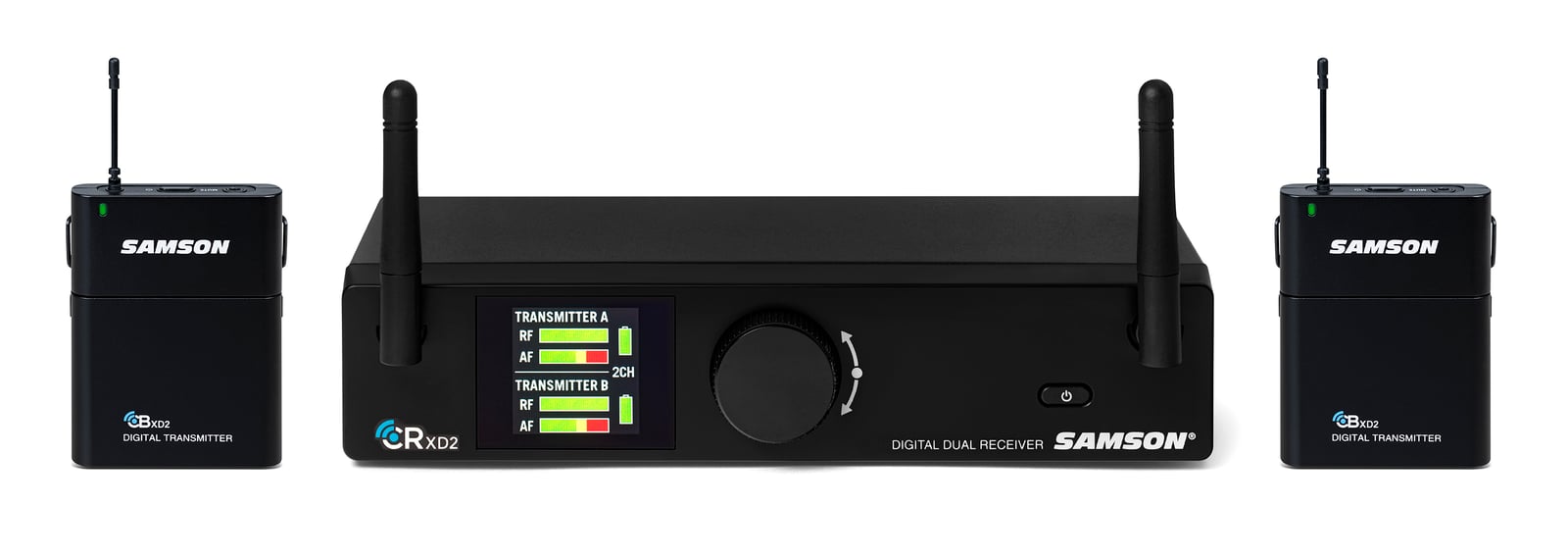

  • Concert XD2 Receiver and Beltpack Transmitters (straight on)

    Clarity Beyond Compare

    The Concert XD2 operates in the 1.9 GHz frequency band, providing an environment of unparalleled reliability and clarity. Unlike more crowded frequency bands such as 2.4 GHz or 5.8 GHz, the clear 1.9 GHz spectrum remains free of interference and ensures seamless, uninterrupted communication.

  • Perform in Pairs

    The Concert XD2 Handheld includes two beltpack transmitters with Samson's premium LM10 lavalier microphones, designed to provide clear sound while remaining out of the way. With a battery life of up to 8 hours off of 2 AA batteries each, the transmitters will be able to handle long performances with no stress.

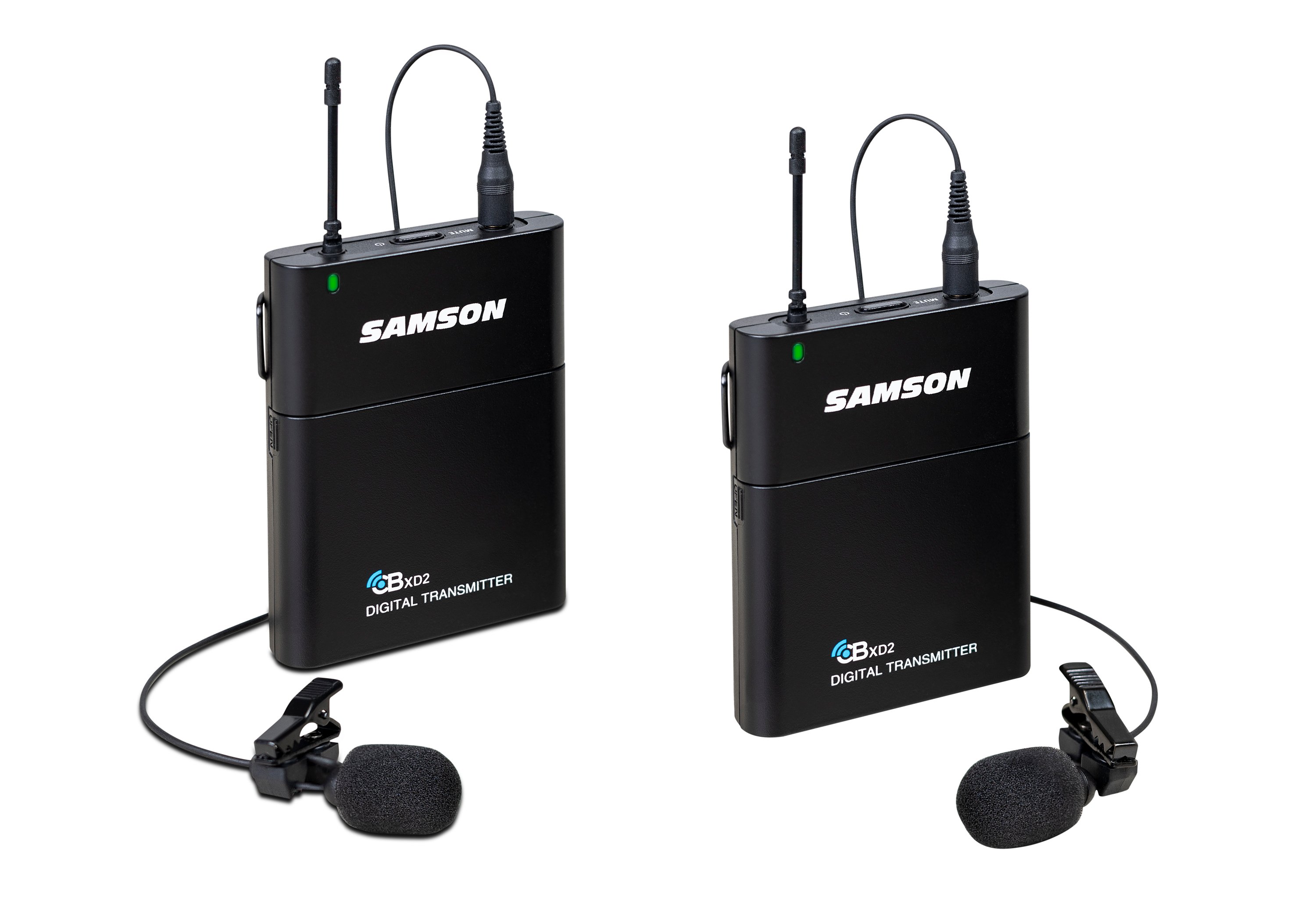

    (2) Concert XD2 Beltpack Transmitters CBXD2

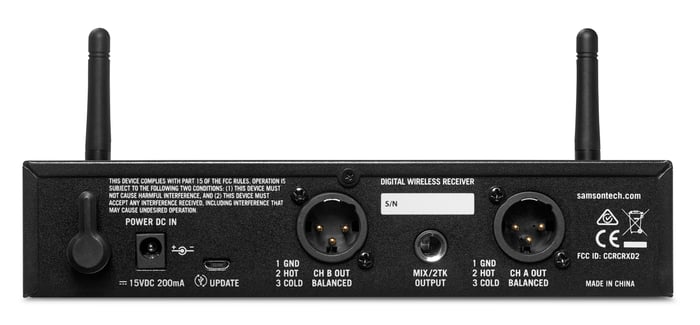

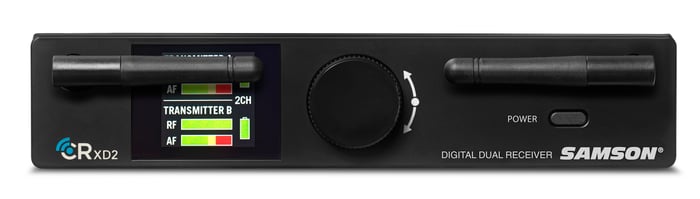

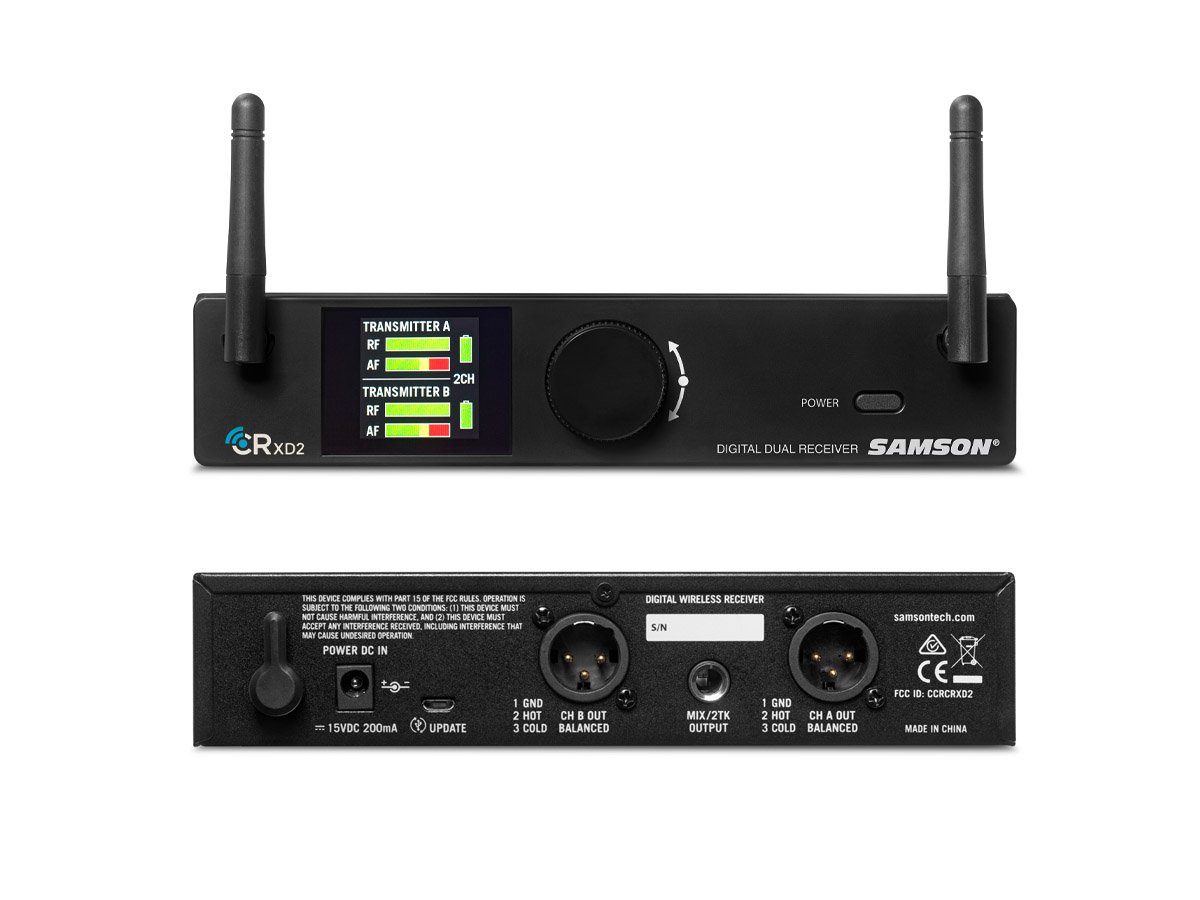

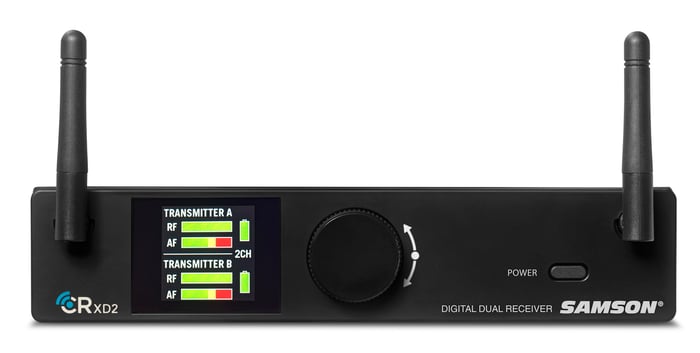

  • Concert XD2 Receiver Front and Rear

    Dual-Channel Receiver

    Designed for multiple performers, the Concert XD2 offers easy setup with wireless pairing. The half-rack receiver features a high-contrast color display with easy-to-read audio, RF, and battery level indicators. Each channel has a balanced XLR output, and there is a single 1/4" TRS output that can be set to 2-channel or mono routing options. The Concert XD2 delivers a superior audio experience for a variety of applications, including presentations, education, stages performance, theater, houses of worship, and interviews.

1.9 GHz Icon

Exploring the Benefits of the 1.9 GHz Band

Discover why the 1.9 GHz band is the optimal choice for wireless microphones. Explore its advantages over other frequency bands, including reduced interference, extended range, and reliable signal penetration. Find out why the 1.9 GHz band is the preferred option for singers, speakers, and performers.

1.9 GHz Icon

Features / Specs

  • Advanced digital wireless technology that delivers crystal-clear audio for vocal performances and multi-performer presentations
  • Operates in the license-free 1.9 GHz frequency band to avoid interference from TV broadcasts, WiFi and Bluetooth
  • Sheersound™ audio codec offers unprecedented low latency and superior quality for an exceptional audio experience
  • Easy setup by pairing the transmitters to the receivers without the hassle of selecting frequencies.
  • Includes two handheld transmitters with Samson Q8 dynamic vocal microphone capsules
  • Concert XD2 transmitters provide up to 8 hours of operation on two AA batteries
  • Half-rack receiver provides individual outputs and a mixed output for versatile routing in a variety settings
  • Included rackmount kit provides added convenience for easy integration

Specifications

System
Working Range  300' (100m) line of sight
RF Frequency Range US: 1921.536~1928.448 MHz EU: 1881.792~1897.344 MHz JP: 1895.616-1904.256 MHz
Audio Sampling Rate  48 kHz
Audio Frequency Response  ±1 dB from 20 Hz - 21 kHz
System Latency  7.7 ms
CBXD2 Transmitter
Input Connector 1/8" (3.5mm)
Input Impedance 4.5 kOhms
Audio THD -80 dB (0.01%)
RF Power  20 dBm (FCC) 23 dBm (RED)
Power  Two AA batteries NiMH or Alkaline
Battery Life  Up to 8 hours
Dimensions (HxØ)  3.34" x 2.55" .74" / 85mm x 65mm x 19mm
Weight  0.27lb/123.5g
CRXD2 Receiver
Audio Output Level 1/4” (6.3mm) +12dBu
Audio Output Level XLR +9dBu
Audio Output Impedance 1/4” (6.3mm)  100 Ω
Audio Output Impedance XLR  317 Ω
Dimensions (LxWxH)   7.79 ” x 3.38” x 1.69” / 198 mm x 86 mm x 4 3mm
Weight  1.12 lb / 509.5 g

Multi-Channel Wireless Comp Chart

Stage 200

-

Stage 212

-

XPD2m Handheld

-

Concert 288 Handheld

-

Concert 288m Handheld

-

Concert XD2 Handheld

-
Type VHF VHF 2.4 GHz Digital UHF UHF 1.9 GHz Digital
Dual / Quad Dual Dual Dual Dual Dual Dual
Frequencies per Channel 1 12 n/a 16 100 n/a
Compatible Systems 4 3 1 10 per band 4 per band Up to 8
Available Configurations Dual Handheld Dual Handheld Dual Handheld, Presentation Dual Handheld, Presentation, All-In-One Dual Handheld, Presentation, All-In-One Handheld
Transmitter Battery 2xAA / 12 hours 2xAA / 10 hours 2xAA / 20 hours 2xAA / 8 hours 2xAA / 8 hours 2xAA / 8 hours
Receiver Type Tabletop Tabletop Tabletop Half-rack Tabletop Half-rack
Rack-mountable No No No Yes - Rack kit included No Yes - Rack kit included
Receiver Output Connections Dual 1/4", Mixed XLR Dual 1/4", Mixed XLR Dual XLR, Mixed 1/4", Mixed 1/8" Dual XLR, Mixed 1/4" Dual XLR, Mixed 1/4", Mixed 1/8" Dual XLR, Two-Track/Mixed 1/4"
