MD2 Pro

Stereo Passive Direct Box

The MD2 Pro Stereo Passive Direct Box combines two premium direct boxes in a single enclosure. Rugged, road-ready construction and dual shielded transformers provide high-quality signal connection solutions for a variety of live sound and recording applications. The MD2 Pro is perfect for converting unbalanced stereo line level or instrument signals from keyboards, electronic drum kits, acoustic-electric guitars, and more.

As low as 0% APR available for orders $199 and up. Learn more
Only Left
Preorder Today
Coming Soon
Call to order
We're sorry, but this item is unavailable.
Free -Day Shipping
Get it by when you order within
Get it if you order in Price:
Great for: Audio for Video, Theater / Production

Highlights

  • To The Max

    The MD2 Pro features a 3-position 0dB/-10dB/-20dB attenuation switch for each input to toggle between line and speaker level signals, as well as a Stereo/Mono summing switch. The Thru jacks allow you to take the signal from the inputs and send it to amplifiers or monitors without affecting the original audio. This can eliminate the need for miking guitar amps, which may be preferable in some applications, especially as more musicians use in-ear monitors.

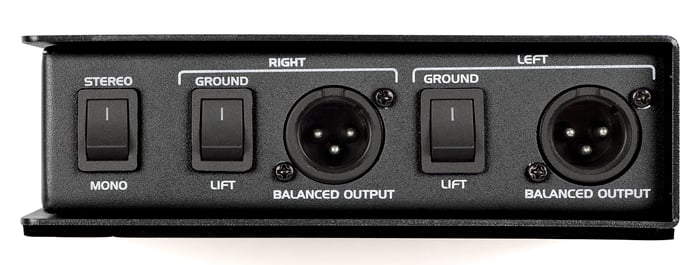

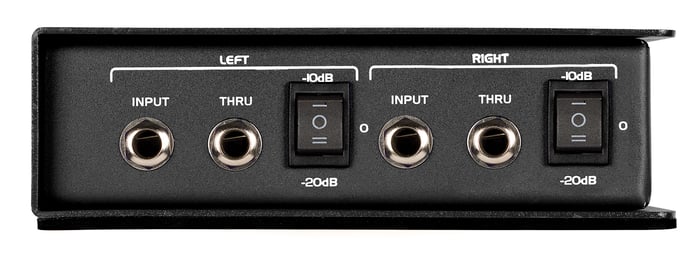

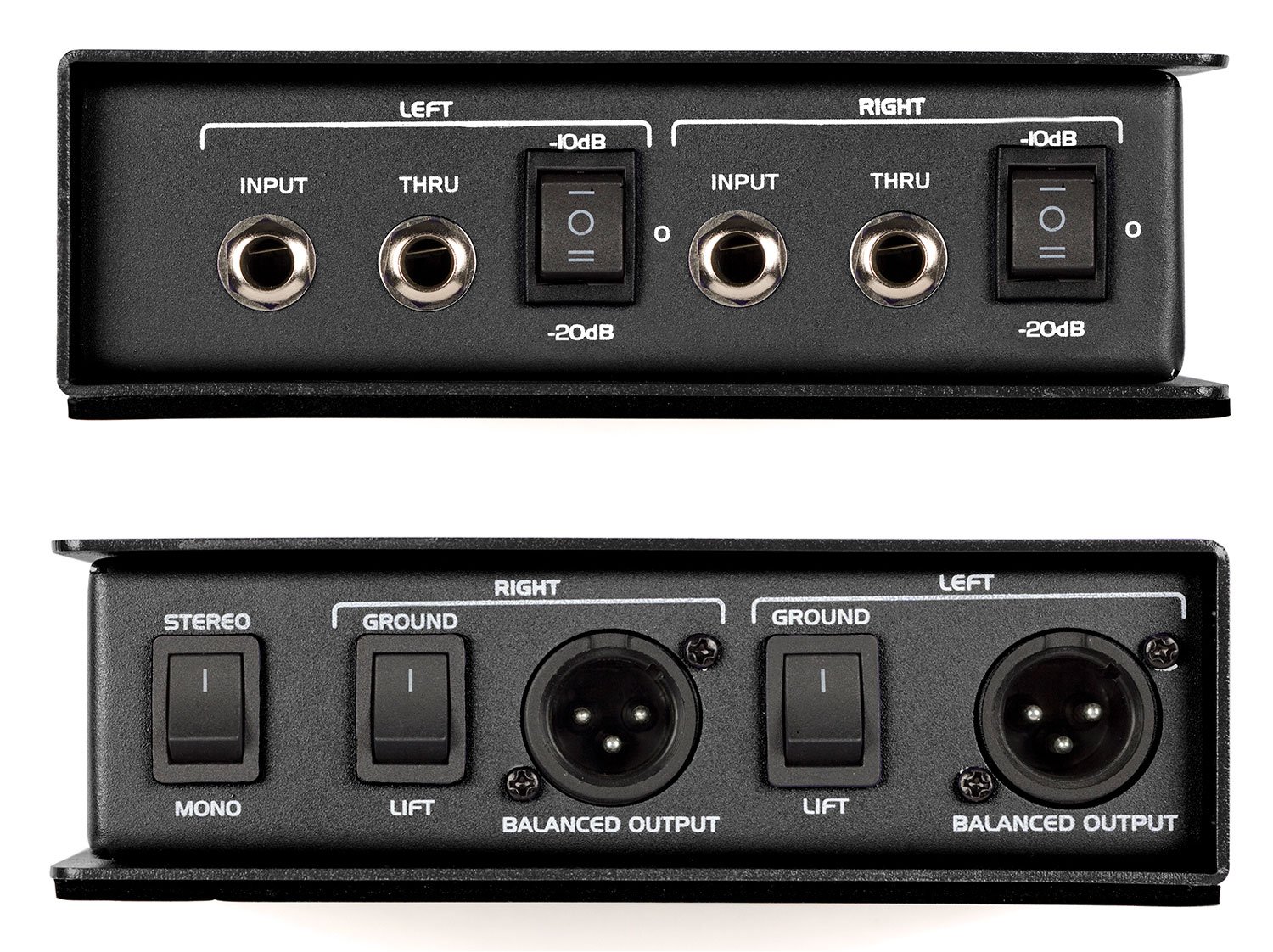

    MD2 Pro side panels showing input, thru and output jacks, and  attenuator, ground lift, and stereo/mono switches
  • S-Max Transformer Top

    Clean, Clear Signal

    The MD2 Pro features two of Samson's STLX Mu-Metal shielded transformers that deliver an extended, flat frequency response with ultra-low distortion and superior protection against hum and RF interference. The MD2 Pro's balanced outputs provide clean signals that are less susceptible to noise than unbalanced lines, allowing for longer cable runs. The MD2 Pro also features a 3-position 0dB/-10dB/-20dB attenuation switch for each input to toggle between line and speaker level signals, as well as a Stereo/Mono summing switch.

  • Roadworthy Construction

    Housed in a 14-gauge steel chassis, the MD2 Pro is built to withstand the abuse of the most demanding live tours. Its rigid outer shell protects all of the MD2 Pro's internal connections, switches, and solder joints from failure, ensuring quiet, reliable performance.

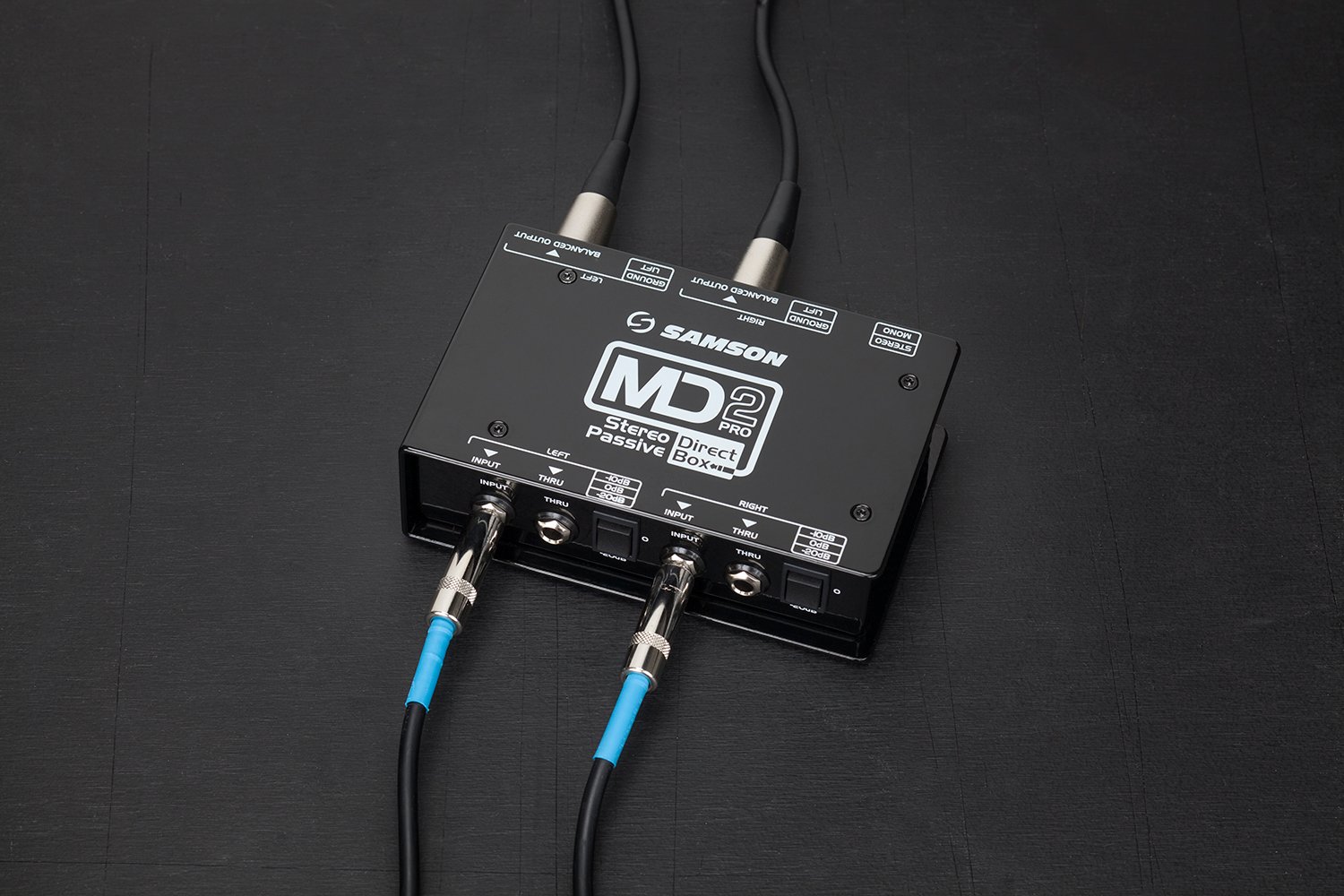

    S-Max-MD2Pro-Vibe-SA1464

Features / Specs

Features

  • All-metal, impact resistant design
  • Dual Samson STLX Mu-Metal shielded transformers
  • Stereo/Mono sum switch
  • Dual 3-position 0dB/-10dB/-20dB attenuation switches
  • Dual Ground Lift switches
  • Dual 1/4" Inputs and Thrus
  • Dual balanced XLR outputs
  • No Phantom or Battery power required
  • Frequency response of 18Hz–40kHz
