To The Max

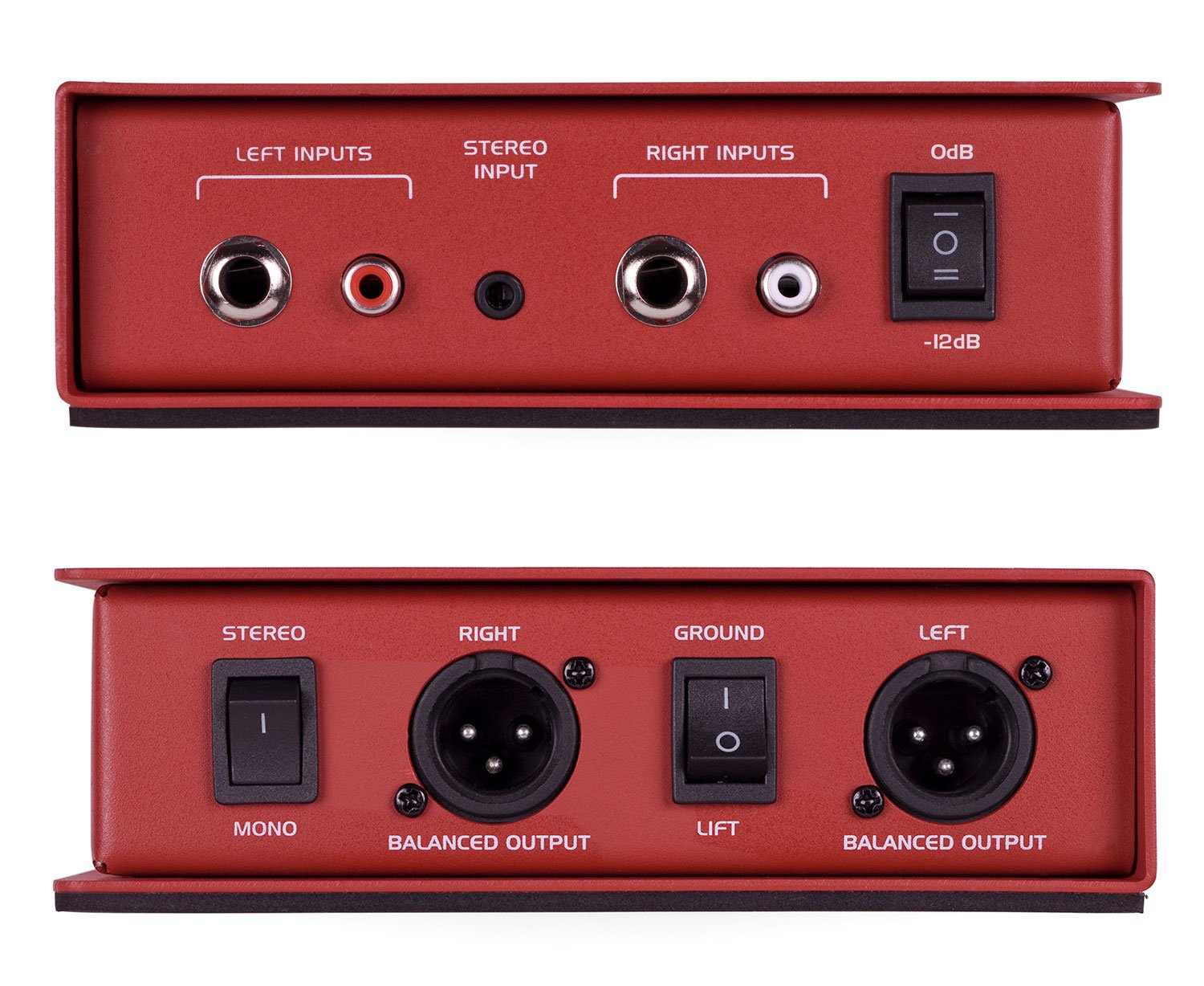

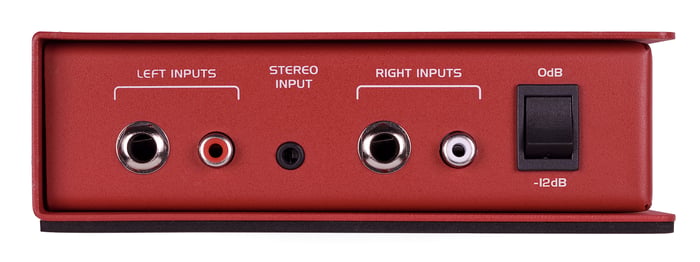

The MCD2 Pro features two 1/4", RCA, and one stereo 1/8" input to accommodate any line-level instrument or consumer audio connection. Its selectable Stereo/Mono summing switch allows users to accommodate typical mono "house" PA systems. In addition, a 2-position 0dB/-12dB attenuation switch provides users with ample headroom to handle hotter inputs.
To The Max

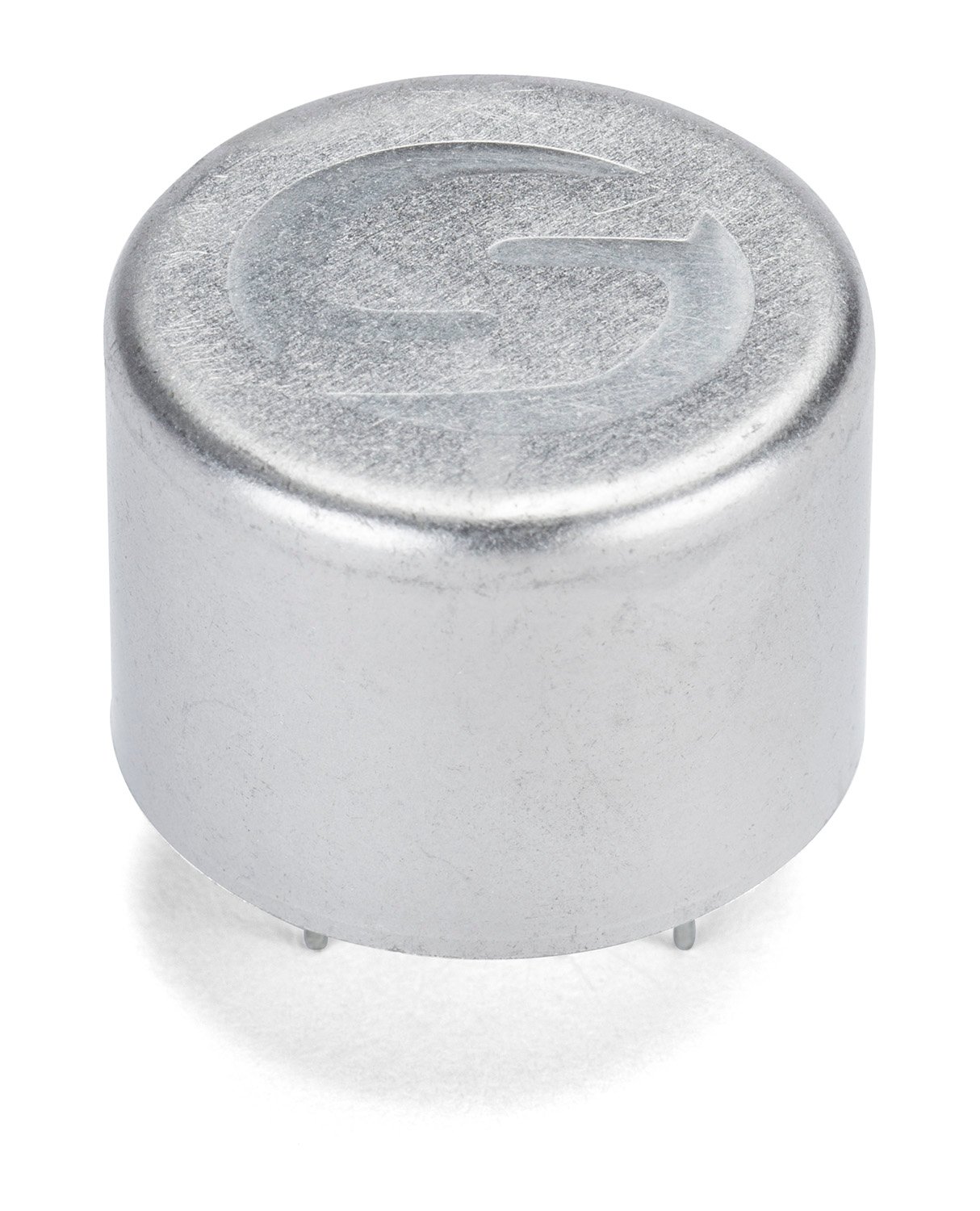

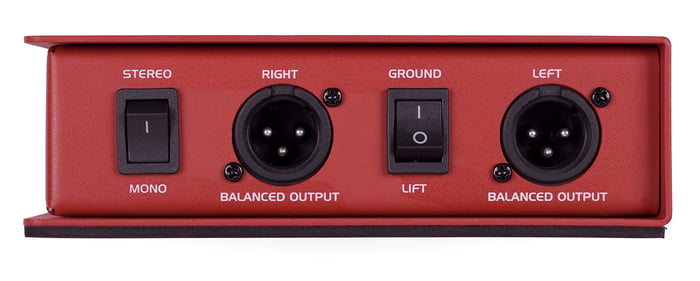

The MCD2 Pro features two of Samson's STLX Mu-Metal shielded transformers that deliver an extended, flat frequency response with ultra-low distortion and superior protection against hum and RF interference. The MCD2 Pro's balanced outputs provide clean signals that are less susceptible to noise than unbalanced lines, allowing for longer cable runs.

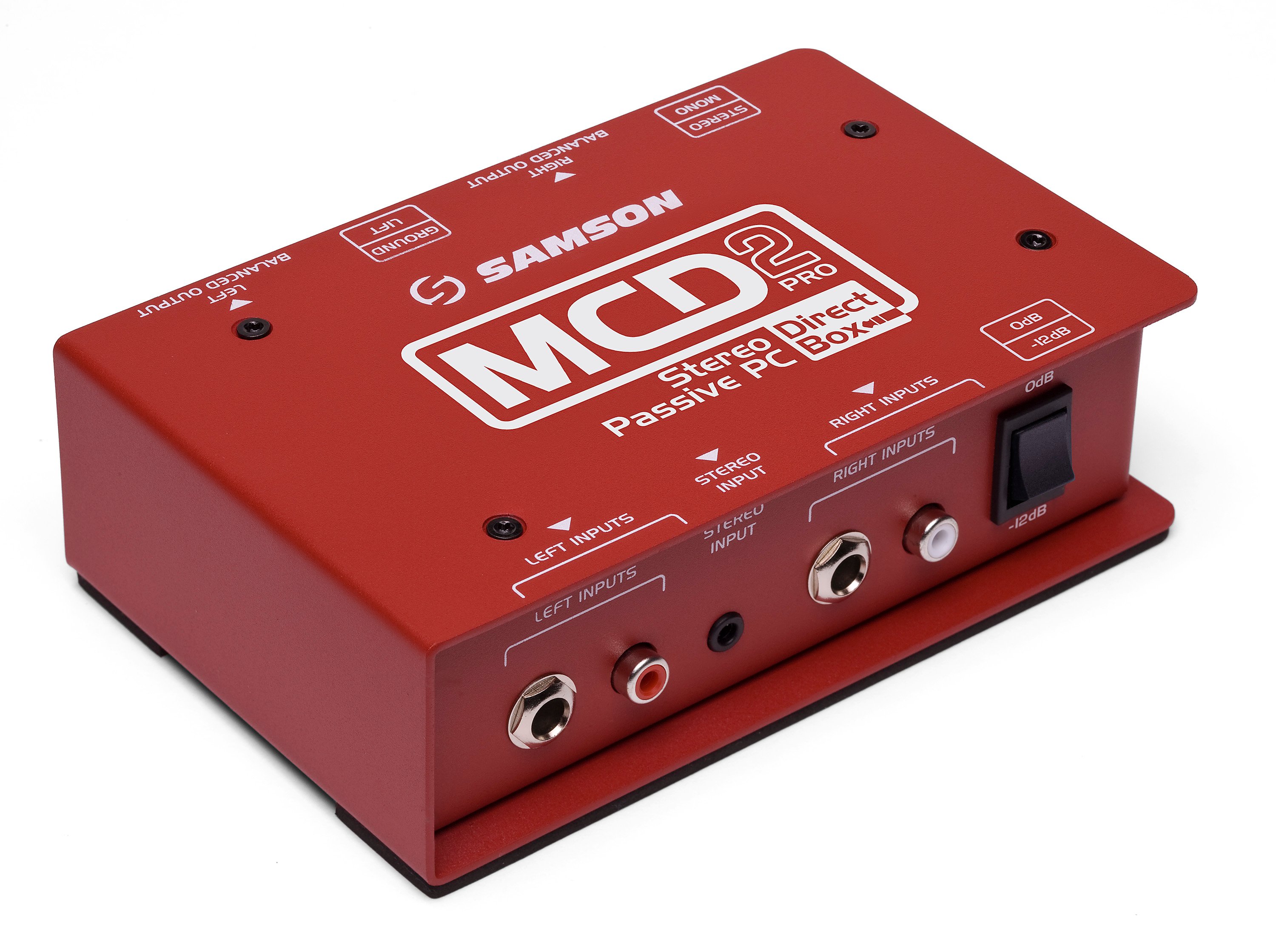

Housed in a 14-gauge steel chassis, the MCD2 Pro is built to withstand the abuse of the most demanding live tours. Its rigid outer shell protects all of the MCD2 Pro's internal connections, switches, and solder joints from failure, ensuring quiet, reliable performance.
Features / Specs
- All-metal, impact resistant design
- Dual Samson STLX Mu-Metal shielded transformers
- Stereo/Mono sum switch
- 2-position 0dB/-12dB attenuation switch
- Ground Lift switch
- Dual 1/4" and RCA inputs
- Stereo 1/8" input
- Dual balanced XLR outputs
- No Phantom or Battery power required
- Frequency response of 18Hz–40kHz
