MDA1

Mono Active Direct Box

The MDA1 Mono Active Direct Box combines premium sound circuitry with durable, roadworthy construction, providing high-quality signal connection solutions for live sound and recording studio applications. The MDA1 operates on either batteries or phantom power and allows clean, balanced lines to be sent from your guitars and basses.

As low as 0% APR available for orders $199 and up. Learn more
Only Left
Preorder Today
Coming Soon
Call to order
We're sorry, but this item is unavailable.
Free -Day Shipping
Get it by when you order within
Get it if you order in Price:
  • Active Operation

    The active MDA1 provides a flat frequency response to any audio signal you connect it to, regardless of its output impedance. This makes the MDA1 ideal for connecting instruments with very high impedance passive pickups by preserving the top end of the instrument's frequency response. The MDA1's balanced output provides a clean signal that is less susceptible to noise than an unbalanced line, allowing for longer cable runs. In addition, a 2-position 0dB/-15dB attenuation switch allows you to match the MDA1 to a wide variety of signals.

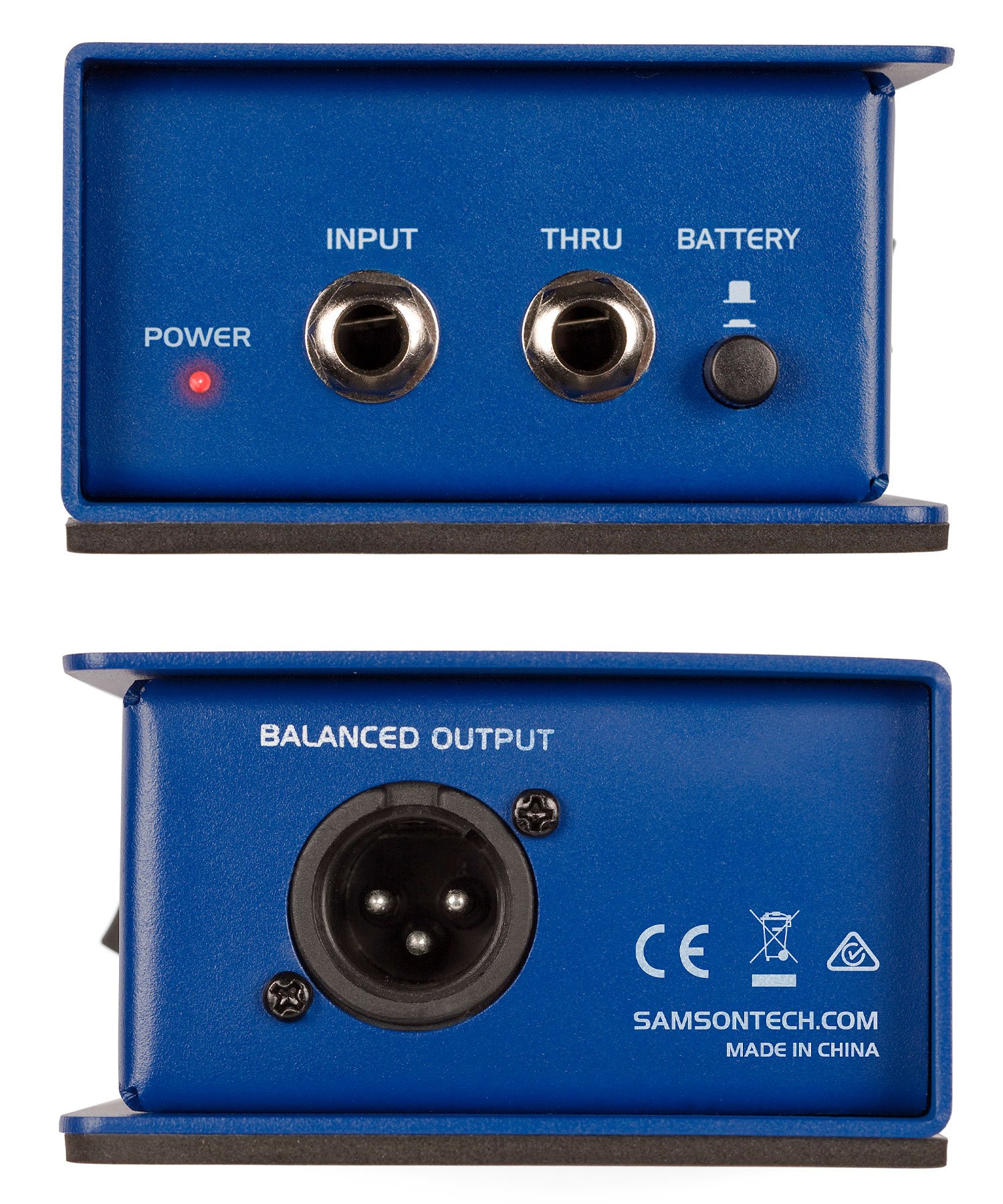

    MDA1 end panels showing input, thru, output and and battery switch

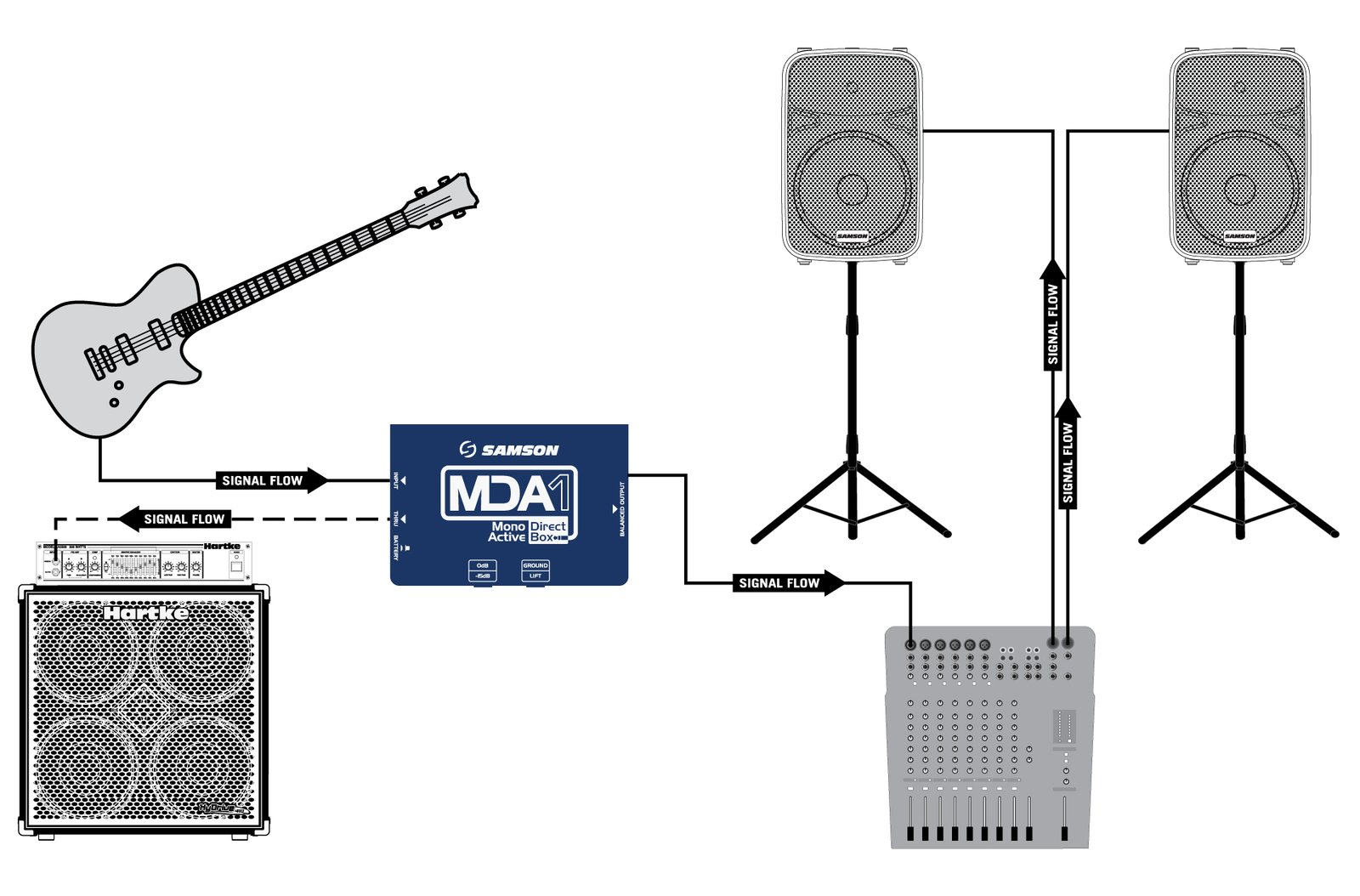

  • MDA1-Setup-SA1456

    To The Max

    The MDA1's Thru jack allows you to take the signal from the input and send it to an amplifier or monitor without affecting the original audio. This can eliminate the need for miking guitar amps, which may be preferable in some applications, especially as more musicians use in-ear monitors.

  • Roadworthy Construction

    Housed in a 14-gauge steel chassis, the MDA1 is built to withstand the abuse of the most demanding live tours. Its rigid outer shell protects all of the MDA1's internal connections, switches, and solder joints from failure, ensuring quiet, reliable performance.

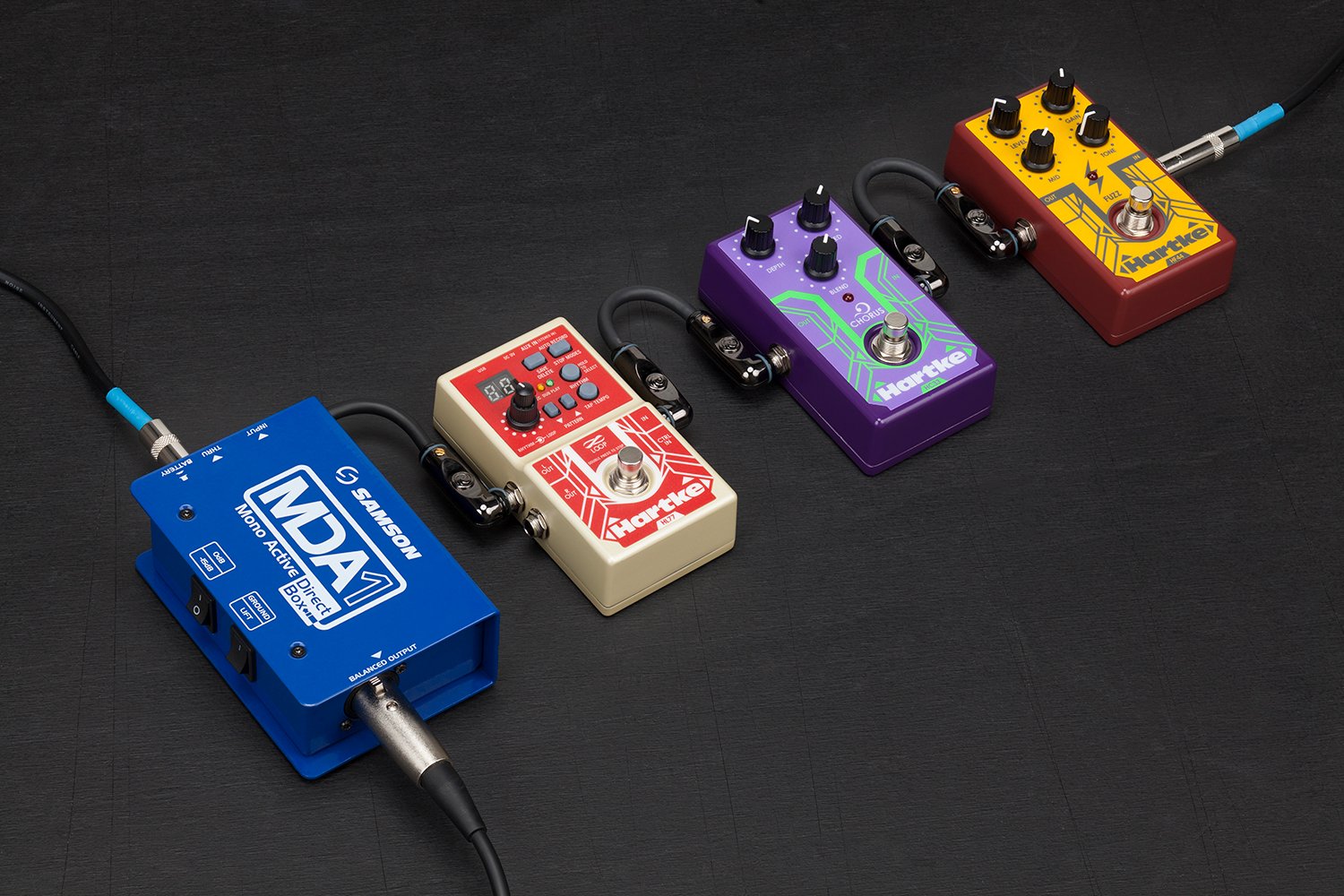

    S-Max-MDA1-Pedals-SA1457

Features / Specs

Features

  • All-metal, impact resistant design

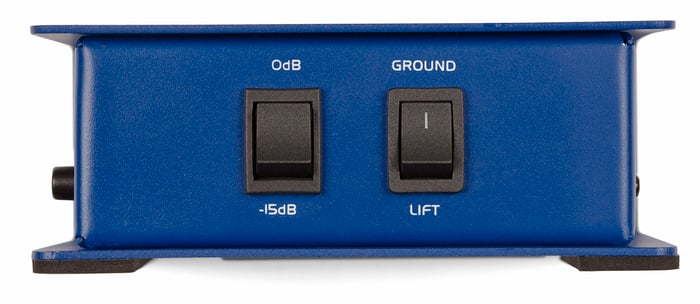

  • 2-position 0dB/-15dB attenuation switch
  • Ground Lift switch
  • 1/4" Input and Thru
  • Balanced XLR output
  • 48V Phantom and 9V Battery power options
  • Frequency response of 18Hz–35kHz
